RFC

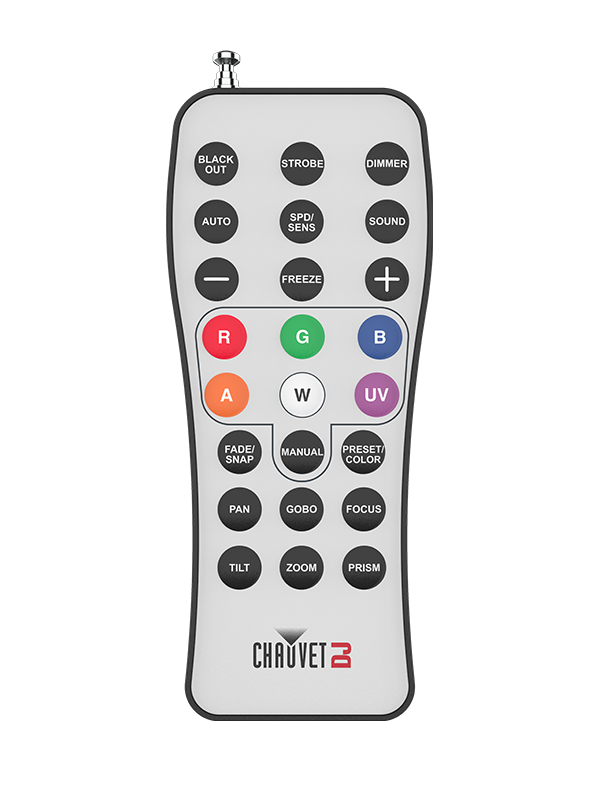

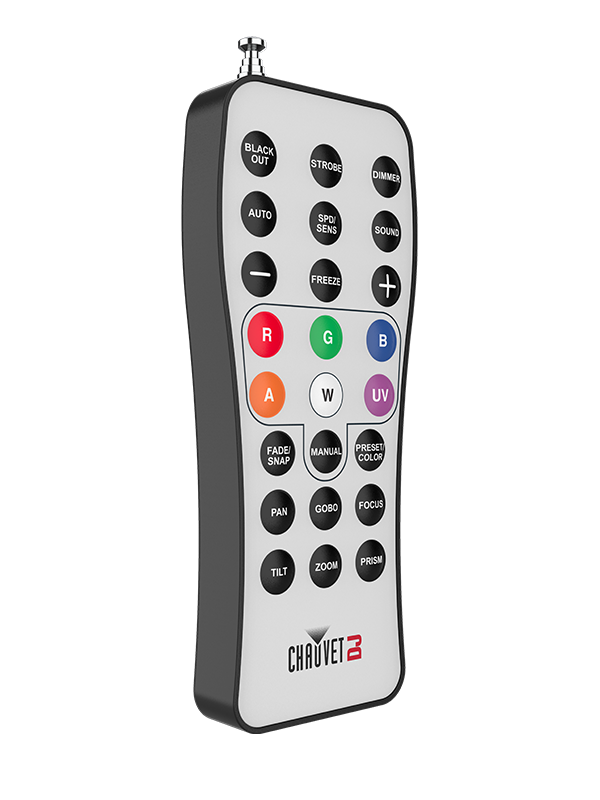

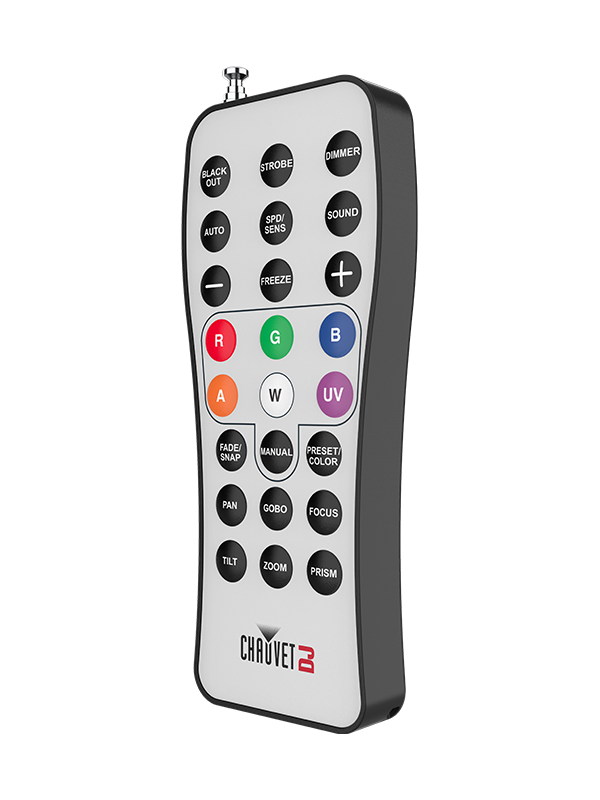

RFC is a palm-sized remote control for compatible RF-enabled lighting fixtures. The unit works with different fixture types such as washes andmoving heads and the RF signal is omnidirectional which means it doesn’t require cumbersome line-of-sight operation. Control is boosted with a telescopic antenna ensuring the signal reaches its destination and with a maximum unobstructed distance of 120 ft (36 m), RFC can control lights in almost any event space.

Highlights

  • Palm-sized remote control for compatible RF-enabled lighting fixtures

  • Works with different fixture types such as washes and moving heads

  • RF signal is omnidirectional and doesn’t require line-of-sight

  • Telescopic antenna ensures the signal reaches its destination

Specifications

  • Max Unobstructed Distance:100 ft (30 m)
  • Operating Frequency:433 MHz
  • Input Voltage:12 VDC, 55 mA
  • Weight:2.6 oz (73 g)
  • Size:4.3 x 1.8 x 0.6 in (110 x 46 x 14 mm)
  • Approvals:CE/RED, UKCA, FCC, RoHS
  • RF output: +22 dBm

What's Included

  • RFC
  • RFC
  • Alkaline battery A23 (12V)
