Discontinued Since 2014

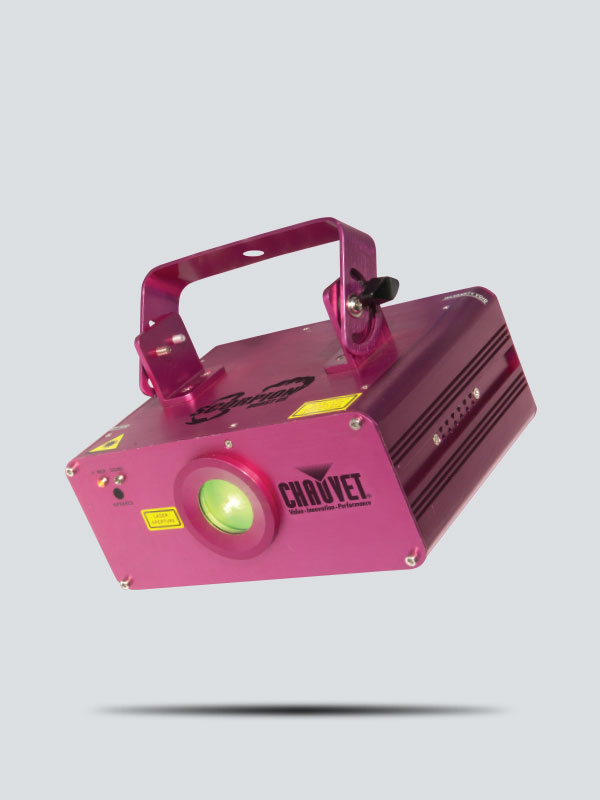

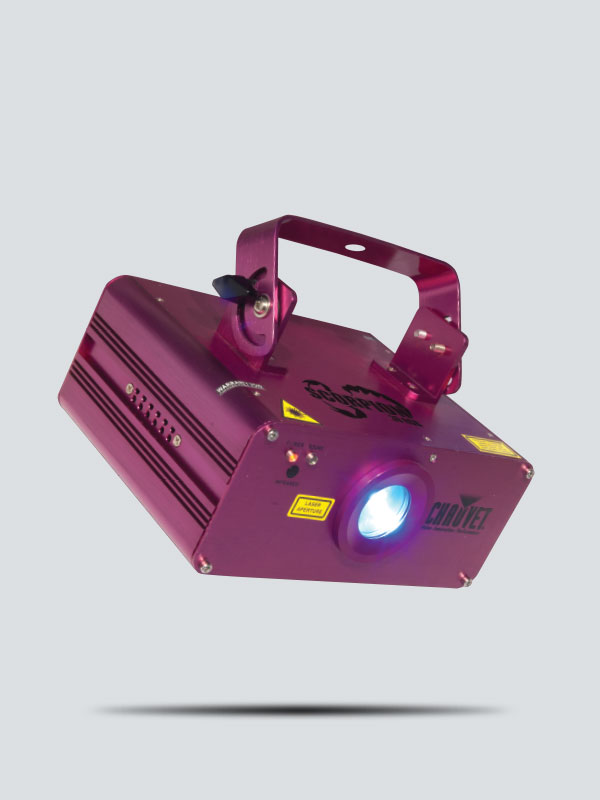

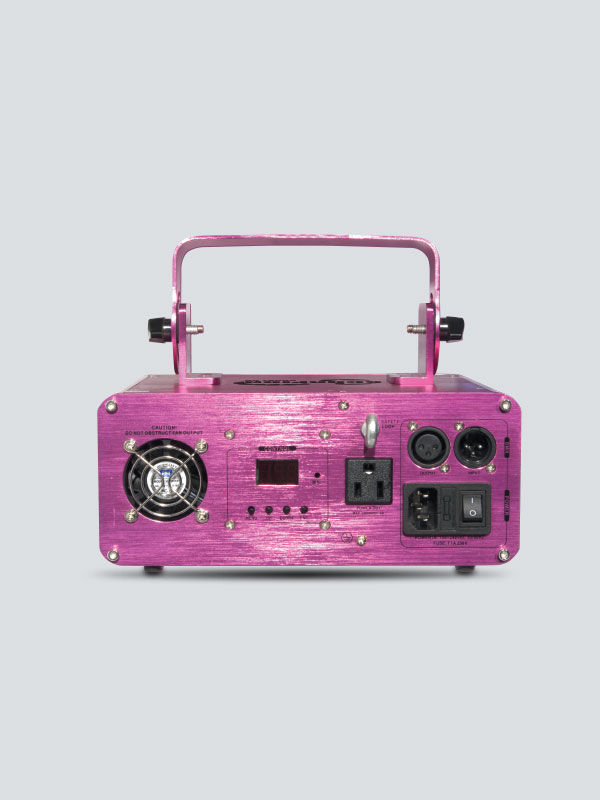

Scorpion Burst GB

Scorpion Burst GB merges the visual appeal of a scanning graphics laser and the room-filling coverage of a burst-style laser into one innovative product. Blue and green lasers project up to 24 integrated graphic effects, while a burst filter replicates the effect and projects it around the room. Easily control the fixture using the on-board menu or DMX control.

Highlights

  • Compact effect laser creates scanning and burst effects using green and blue laser diodes

  • Dynamic, ever-changing effects rotate and spin at different speeds

  • High-speed motors generate up to 24 different effects in DMX or stand-alone mode

  • Achieve maximum coverage with effects that look great with or without fog

  • Activate automated and sound-activated programs, or control in DMX or master/slave mode

  • Save time running cables and extension cords by power linking multiple units (US version only)

  • Variance free and ready to use right out of the box

  • Wirelessly control colors and modes using the included IR remote

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels: 11
  • DMX Connectors: 3-pin XLR
  • Light Source: 1 green laser diode (532 nm/40 mW), 1 blue laser diode (450 nm/120 mW)
  • Coverage Angle: 99°
  • Power Linking: 25 units @ 120 V; 43 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 37 W, 0.3 A @ 120 V, 60 Hz
    42 W, 0.2 A @ 230 V, 50 Hz
  • Weight: 5.2 lb (2.4 kg)
  • Size: 8 x 9.4 x 7.6 in (205 x 240 x 194 mm)
  • Approvals: FDA
  • Classified per 21 CFR 1040.10 & .11 Complies with US FDA CDRH laser safety standards 21 CFR 1040.10 & 1040.11

What's Included

  • Scorpion Burst GB
