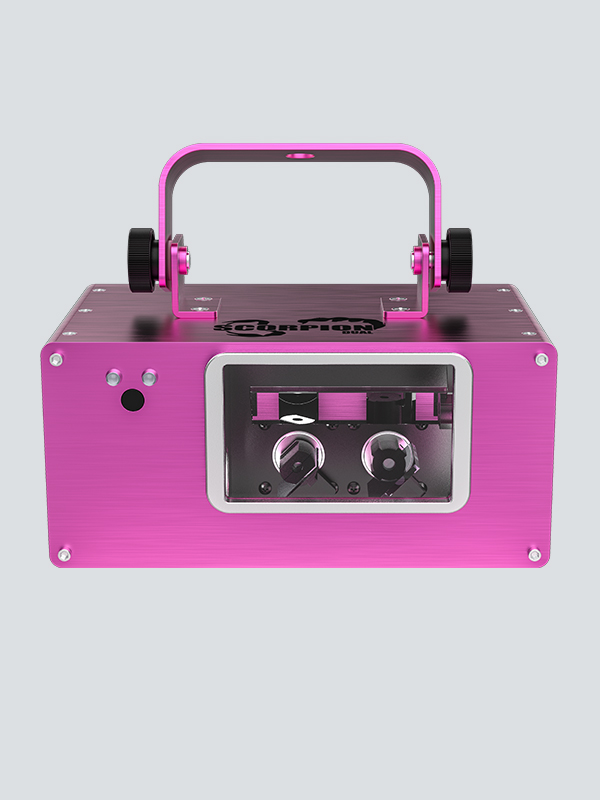

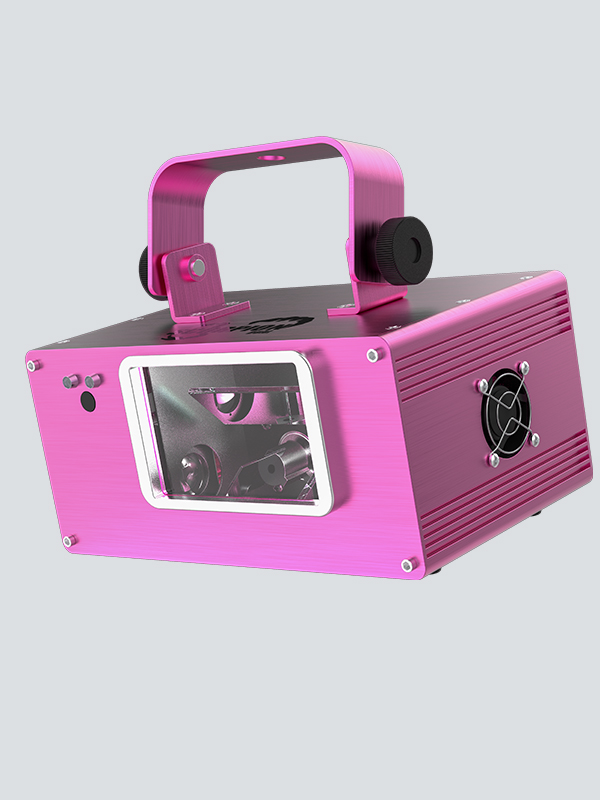

Imagine the visual drama of a Dual RGB FAT BEAM™ aerial effect laser that lets you create perfect color combinations by mixing red, green, and blue laser diodes—That’s the power of Scorpion Dual RGB. This laser has 32 built-in patterns, including the popular “Laser Sky” effect for breathtaking visuals, which are perfect for events with fog or haze. Scorpion Dual RGB features a unique dual mirror output with scan/speed adjustment, so you can generate customized ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling images. This fixture is fully FDA compliant, variance-free, and ready to use right out of the box. Easily operate Scorpion Dual RGB in automatic, Master/Slave, manual, or sound-activated mode.

VIP Rewards Value: 360 Points



Highlights

  • Dual RGB FAT BEAM™ aerial effect laser, perfect for events with fog or haze

  • Create perfect color combinations by mixing red, green and blue laser diodes

  • Unique dual mirror output that makes a great centerpiece or side accent in pairs

  • 32 built-in patterns, including the popular “Laser Sky” effect

  • Wireless control using the optional IRC-6 remote

  • Generate customized and ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling effects and scan speed adjustment

  • Fully FDA compliant, variance-free and ready to use right out of the box

  • Easily operate in automatic, Master/Slave, manual or sound-activated mode

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

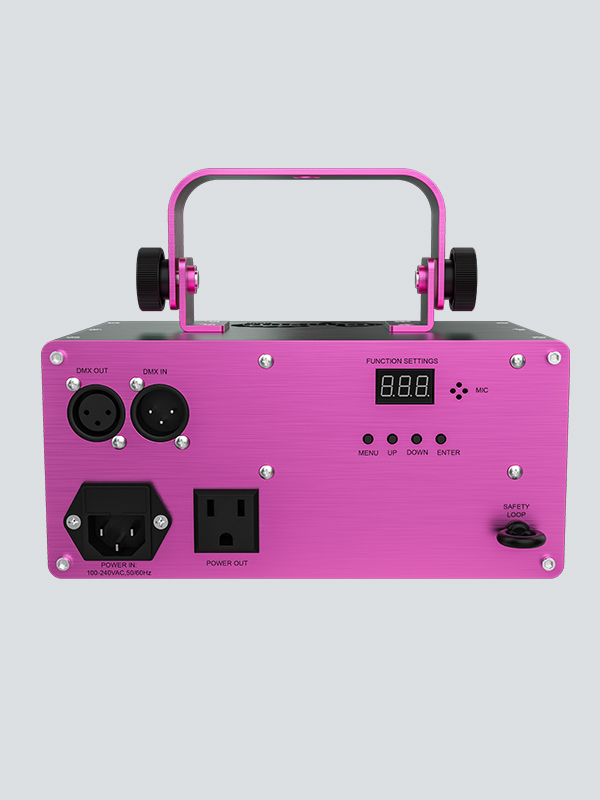

  • DMX Channels: 10
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 30°/30° (variable)
  • Light Source: 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
  • Strobe Rate: 0 to 27 Hz
  • Coverage Angle: 36°
  • Power Linking: 27 units @ 120 V; 48 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 20 W, 0.3 A @ 120 V, 60 Hz
    19 W, 0.2 A @ 230 V, 50 Hz
  • Zoom Angle: 1° to 29°
  • Weight: 3.8 lb (1.7 kg)
  • Size: 8.5 x 7 x 6.3 in (216 x 179.5 x 161 mm)
  • Approvals: CE, FDA
  • Bracket Mounting Hole: M12
  • Ambient Operating Temperature: 59 °F to 95 °F (15 °C to 35 °C)
  • Classified per 21 CFR 1040.10 & .11
  • Complies with US FDA CDRH laser safety standards 21 CFR 1040.10 & 1040.11
  • Optional Controllers: IRC-6

What's Included

  • Scorpion Dual RGB
  • Scorpion Dual RGB
  • Power cord
  • User Manual
