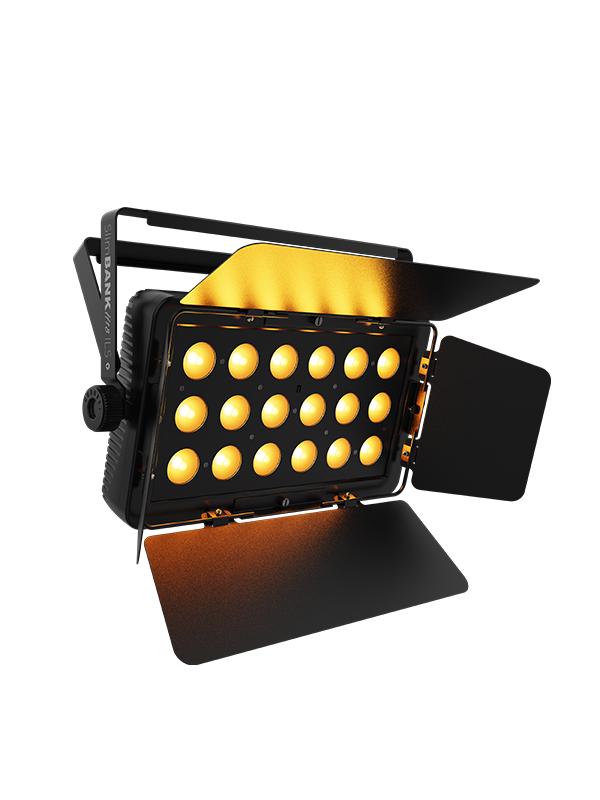

SlimBANK H18 ILS
SlimBANK H18 ILS is a versatile hex-color (RGBAW+UV) LED wash light with brilliant eye candy effects. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Built-in dimming curves achieve smooth LED fading while built-in auto programs with sectional control generate complex looks in no time. Its radiant cooling and fan-free design make this fixture ideal for sound-sensitive environments.
Images & VIDEOS
Highlights
Versatile hex-color LED wash light with brilliant eye candy effects
ILS compatibility for use in the ILS ecosystem
Generate complex looks easily with built-in, eye-catching auto programs with sectional control

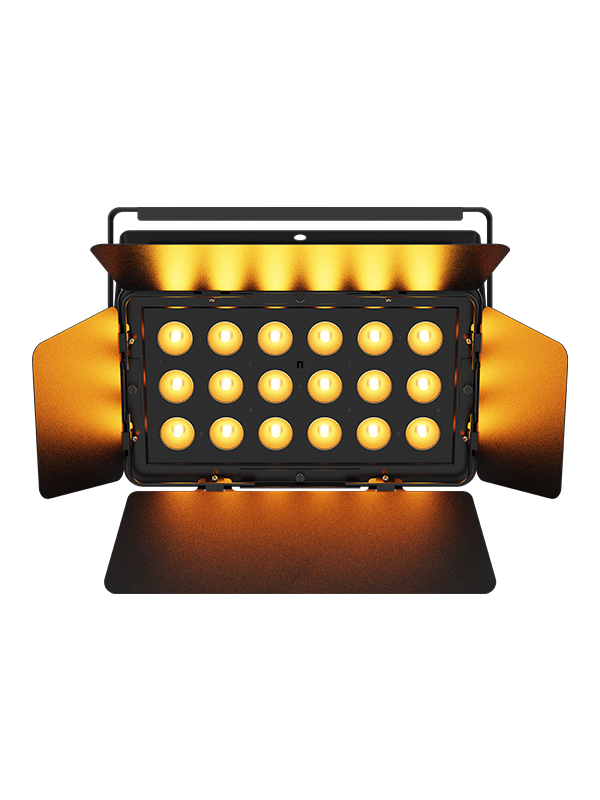

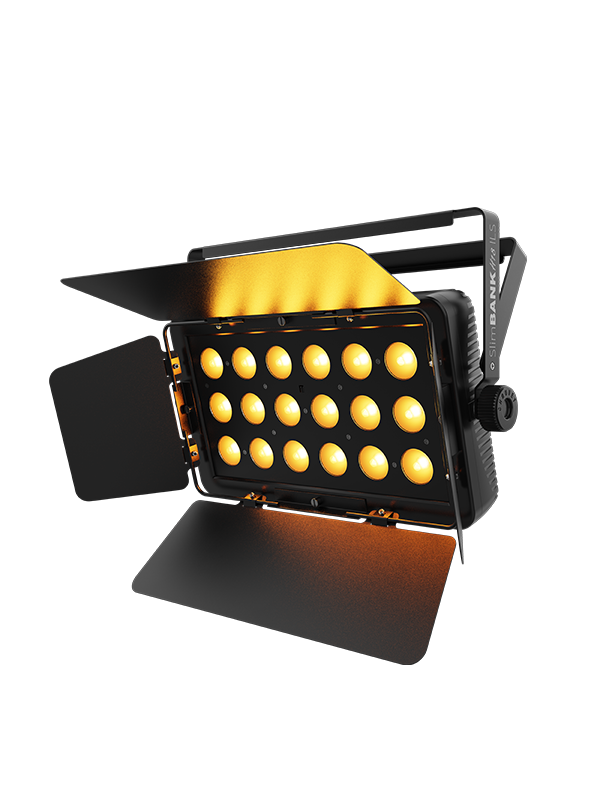

Adjustable barn doors help direct and focus the light
Control options include IRC-6 remote, Master/Slave, DMX, or ILS
Achieve smooth LED fading with built-in dimming curves
Ideal for sound-sensitive environments due to the radiant cooling design and no fan
Save time running extension cords by power linking multiple units.
Specifications
- DMX Channels: 6, 8, 12 or 22
- DMX Connectors:3-pin XLR
- Light Source: 18 LEDs (hex-color RGBAW+UV) 6.2 W, (1.6 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 27°
- Field Angle: 43°
- Illuminance: 3,111 lux @ 2 m
- Lumens: 3,356
- Power Linking: 8 units @ 120 V; 14 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 68 W, 1 A @ 120 V, 60 Hz, 67 W, .5 A @ 230 V, 50 Hz
- Weight: 6 lb. (2.7 kg)
- Size: 8.2 x 14 x 2.2 in (208 x 355 x 55 mm)
- Approvals: CE, RoHS
- Optional Controllers: IRC-6, ILS Command
- Bracket Mounting Hole: 13 mm
- Beam Angle: 27°
- Field Angle: 43°
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
What's Included
- SlimBANK H18 ILS
- SlimBANK H18 ILS
- Power cord
- Barn doors
- Quick Reference Guide
