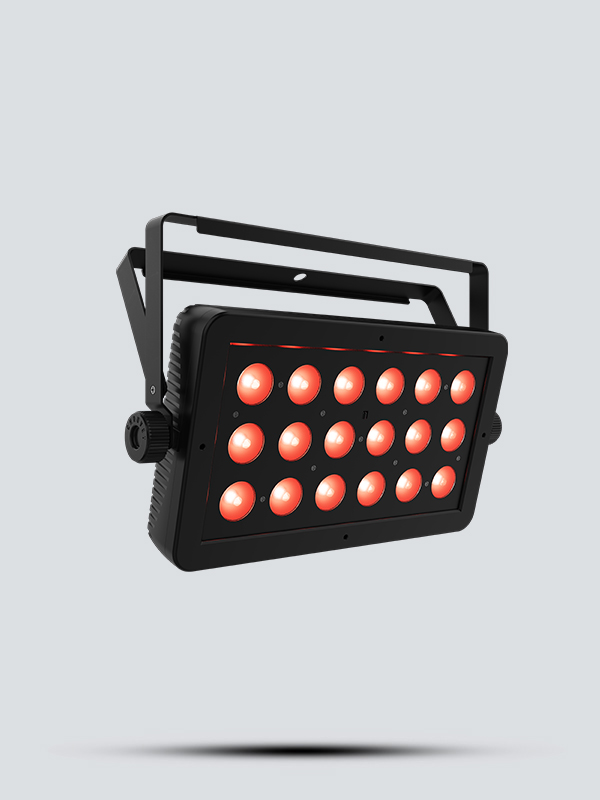

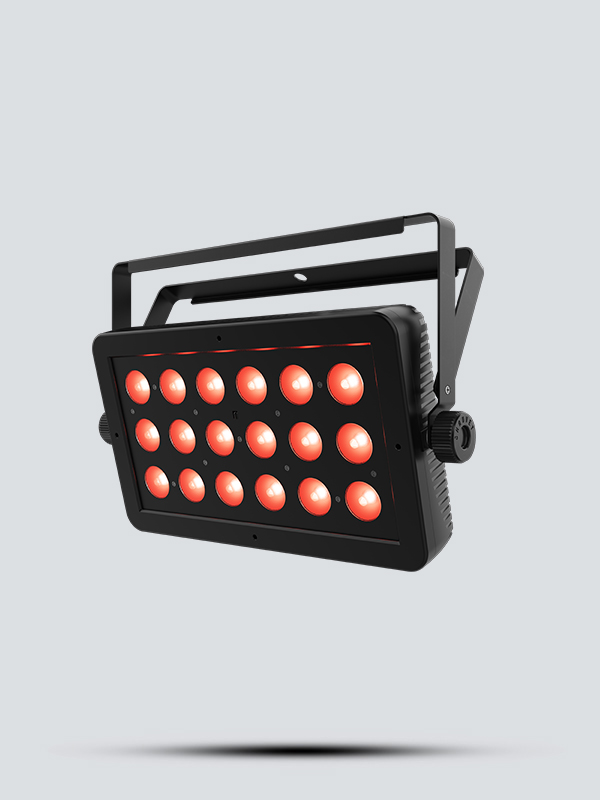

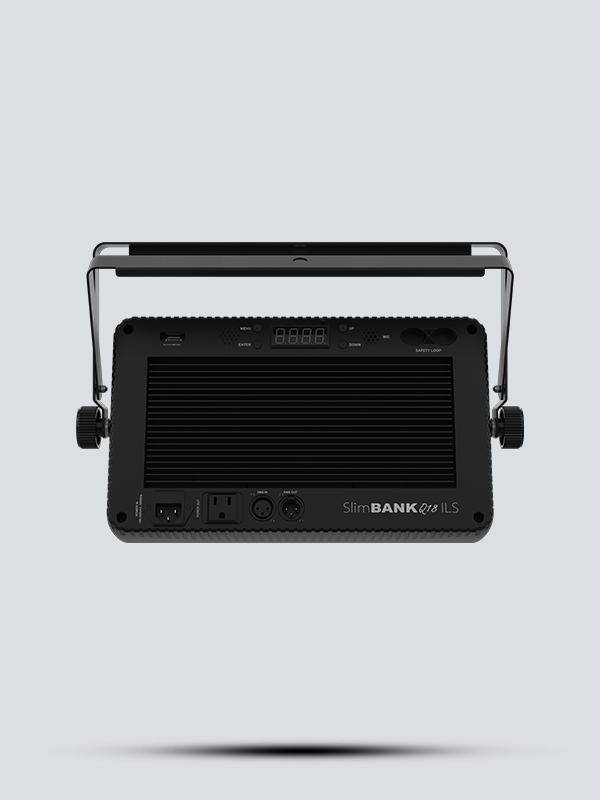

SlimBANK Q18 ILS
SlimBANK Q18 ILS is a versatile quad-color (RGBA) LED wash light with brilliant eye candy effects. It features compatibility with ILS which makes creating coordinated light shows across different fixture types easy. Control options include D-Fi USB compatibility for wireless Master/Slave or DMX control and access to built-in automated programs via IRC-6 remote. This light makes it easy to generate complex looks easily with built-in, eye-catching auto programs with sectional control. Adjustable barn doors help direct and focus the light. SlimBANK Q18 ILS has built-in dimming curves for smooth LED fading and is ideal for sound-sensitive environments due to its radiant cooling design.
Images & VIDEOS
Highlights
Versatile quad-color LED wash light with brilliant eye candy effects
D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
Generate complex looks easily with built-in, eye-catching auto programs with sectional control

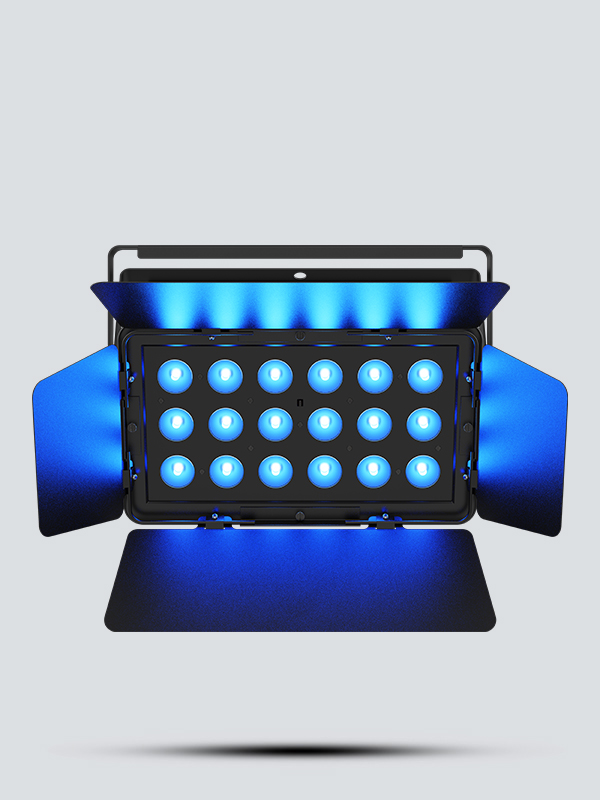

Adjustable barn doors help direct and focus the light
Access built-in automated programs via IRC-6 remote, Master/Slave or DMX
Achieve smooth LED fading with built-in dimming curves
Ideal for sound-sensitive environments due to the radiant cooling design
Save time running extension cords by power linking multiple units
Specifications
- DMX Channels:4, 6, 10 or 16
- DMX Connectors:3-pin XLR
- Light Source:18 LEDs (quad-color RGBA) 4 W, (1 A) 50,000 hours life expectancy
- Strobe Rate:0 to 20 Hz
- Beam Angle:17°
- Field Angle:31°
- Illuminance:4,654 lux @ 2 m
- Power Linking:9 units @ 120 V; 15 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
65 W, 0. 9 A @ 120 V, 60 Hz
64 W, 0.5 A @ 230 V, 50 Hz - Weight:6 lb (2.8 kg)
- Size:8.2 x 14 x 2.2 in (208 x 355 x 55 mm)
- Approvals:CE, RoHS, UKCA
- Optional Controllers: IRC6, D-Fi USB
- Bracket Mounting Hole: 13 mm
What's Included
- SlimBANK Q18 ILS
- SlimBANK Q18 ILS
- Power cord
- Barn doors
- Quick Reference Guide
