Discontinued Since 2015

SlimBANK TRI-18

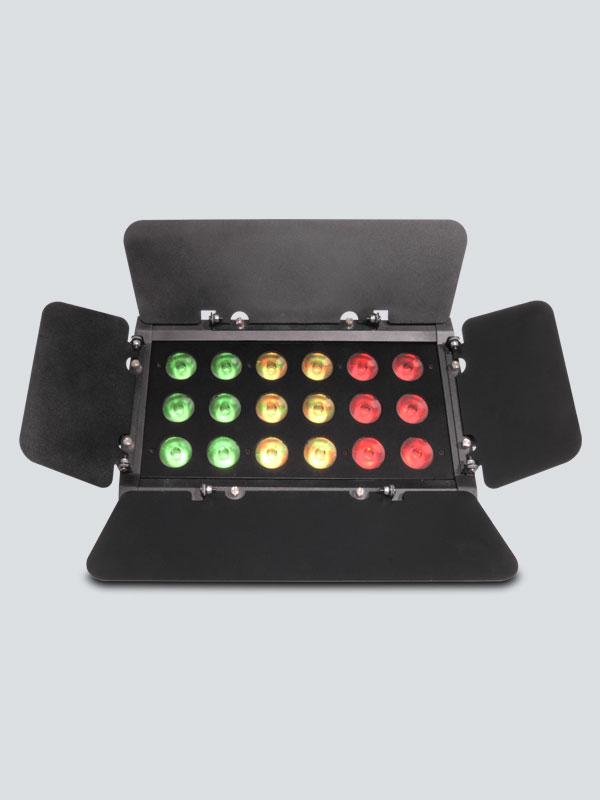

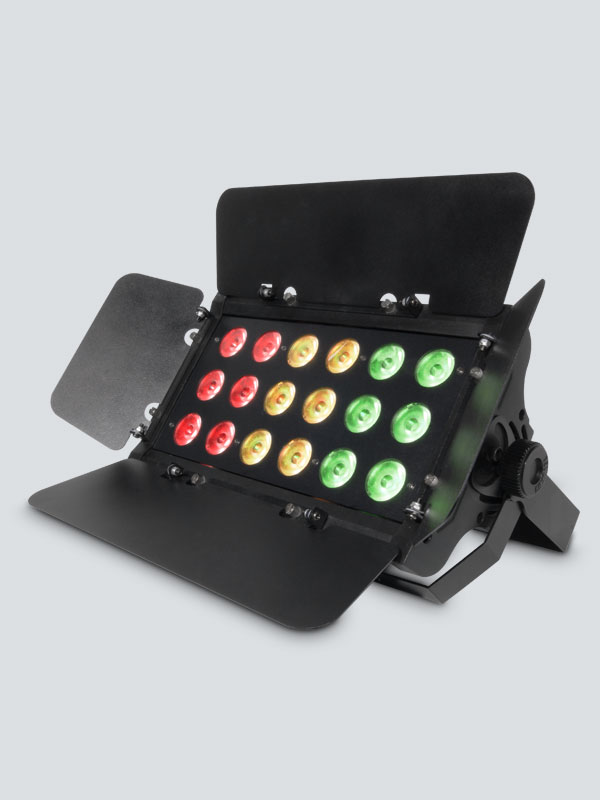

SlimBANK Tri-18 is a wide-area wash light fitted with 18 tri-color LEDs. It blends easily into traditional lighting rigs, thanks to built-in dimming curves; a fan-free design makes it ideal for use in noise-sensitive environments. Removable barn doors shield light from unwanted areas.

Highlights

  • Versatile tri-color LED wash light

  • Direct light where it’s needed using the included and removable barn doors

  • Generate complex looks easily with built-in, eye-catching auto programs with sectional control

  • Achieve smooth LED fading with built-in dimming curves

  • Ideal for sound-sensitive environments due to the radiant cooling design

  • Save time running extension cords by power linking multiple units

  • Easily transports in the CHS-40 VIP Gear Bag

  • Combine multiple units using the CBB-6 mounting bracket

Specifications

  • DMX Channels: 3, 5, 9, or 13
  • DMX Connectors: 3-pin XLR
  • Light Source: 18 LEDs (tri-color RGB) 3 W (1,050 mA), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • PWM Frequency: 1,040 Hz
  • Beam Angle: 17°
  • Field Angle: 32°
  • Illuminance: 5,450 lux @ 2 m
  • Power Linking: 9 units @ 120 V; 16 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 105 W, 0.9 A @ 120 V 60 Hz
    109 W, 0.5 A @ 230 V 50 Hz
  • Weight: 7 lb (3.2 kg)
  • Size: 15.3 x 7.7 x 7.4 in (389 x 197 x 187 mm)
  • Approvals: CE

What's Included

  • SlimBANK TRI-18
