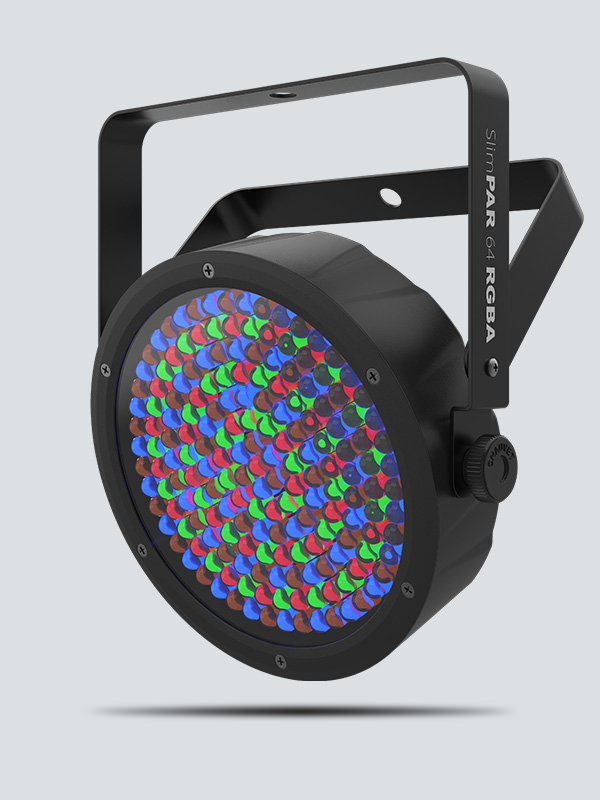

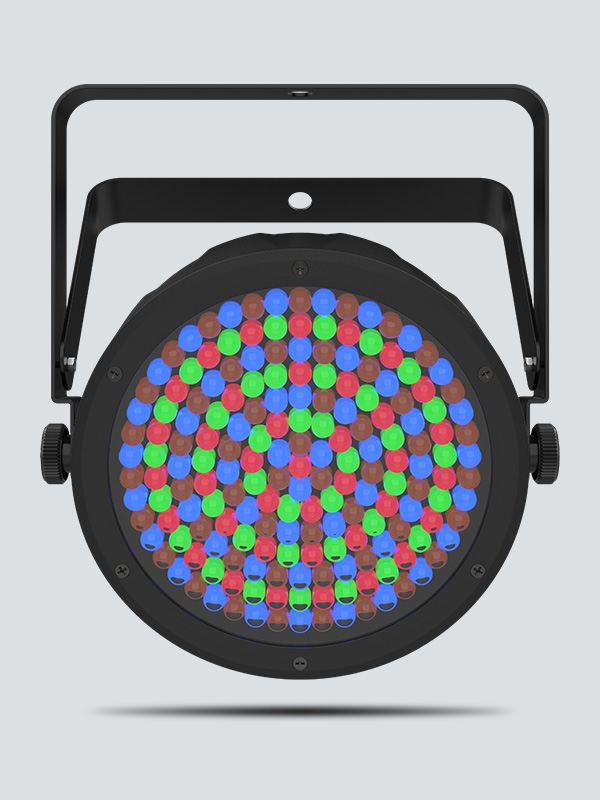

SlimPAR 64 RGBA

SlimPAR 64 RGBA houses 180 red, green, blue and amber LEDs in a discreet, ultra-compact casing. It offers static colors and color mixing with or without DMX. Use built-in automated and sound-activated programs as well as pulse effects at variable speed for a show on the fly. Or create your own looks using a 4- or 8-channel DMX mode.

Highlights

  • Generate a magnitude of colors and achieve natural color temperatures with punchy amber LEDs

  • Low-profile fixture fits most places other lights cannot

  • Ideal for quiet applications due to silent operation and no moving parts

  • Easily create any color without DMX using the built-in digital display

  • Save time running cables and extension cords by power linking multiple units

  • Create coordinated light shows by linking other quad-color SlimPAR™ fixtures in Master/Slave mode

  • Easily transports in the optional CHS-25 VIP Gear Bag

  • Compact design easily fits inside sticks of TRUSST®

Specifications

  • DMX Channels: 4 or 8
  • DMX Connectors: 3-pin XLR
  • Light Source: 180 LEDs (39 red, 39 green, 51 blue, 51 amber) 0.25 W (20 mA), 100,000 hours life expectancy
  • PWM Frequency: 1,200 Hz
  • Beam Angle: 14°
  • Field Angle: 23°
  • Illuminance: 1,325 lux @ 2 m
  • Power Linking: 40 units @ 120 V; 60 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 30 W, 0.3 A @ 120 V, 60 Hz
    33 W, 0.2 A @ 230 V, 50 Hz
  • Weight: 2.8 lb (1.3 kg)
  • Size: 10.8 x 10.8 x 2.6 in (276 x 275 x 66 mm)
  • Approvals: CE, MET

What's Included

  • SlimPAR 64 RGBA

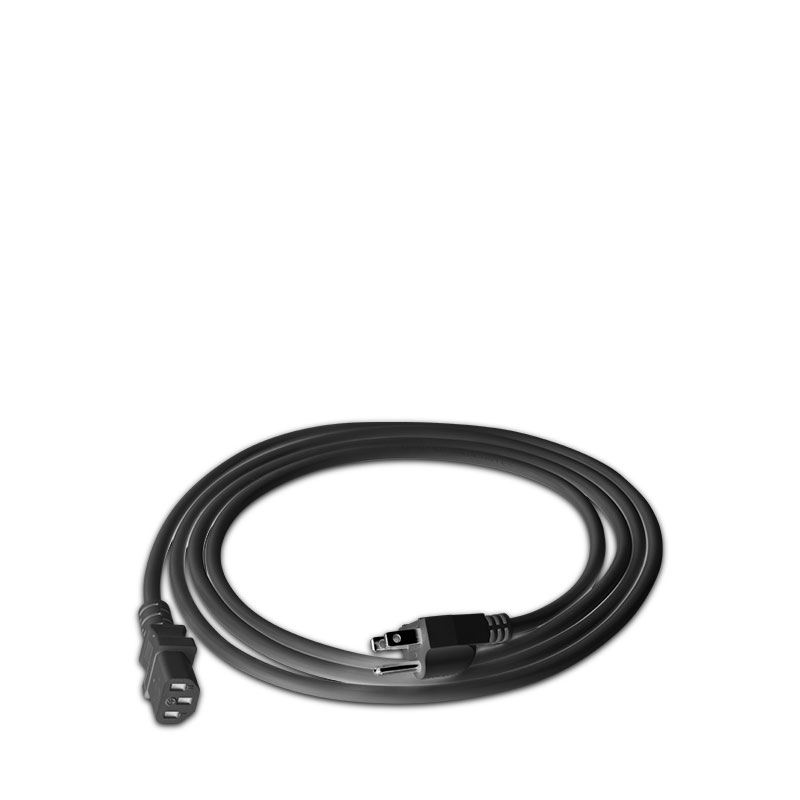

  • External power cord
  • Hanging bracket with mounting hardware
  • Quick Reference Guide
  • Warranty card
