Discontinued Since 2016

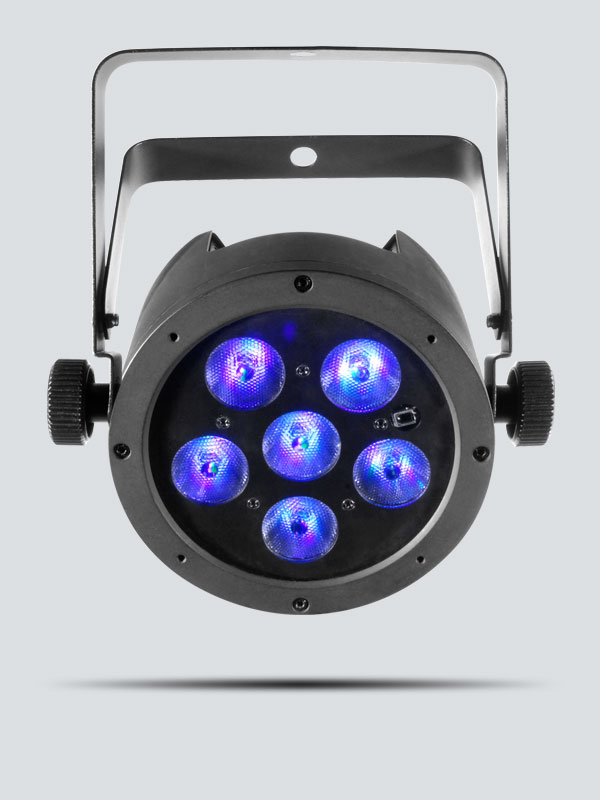

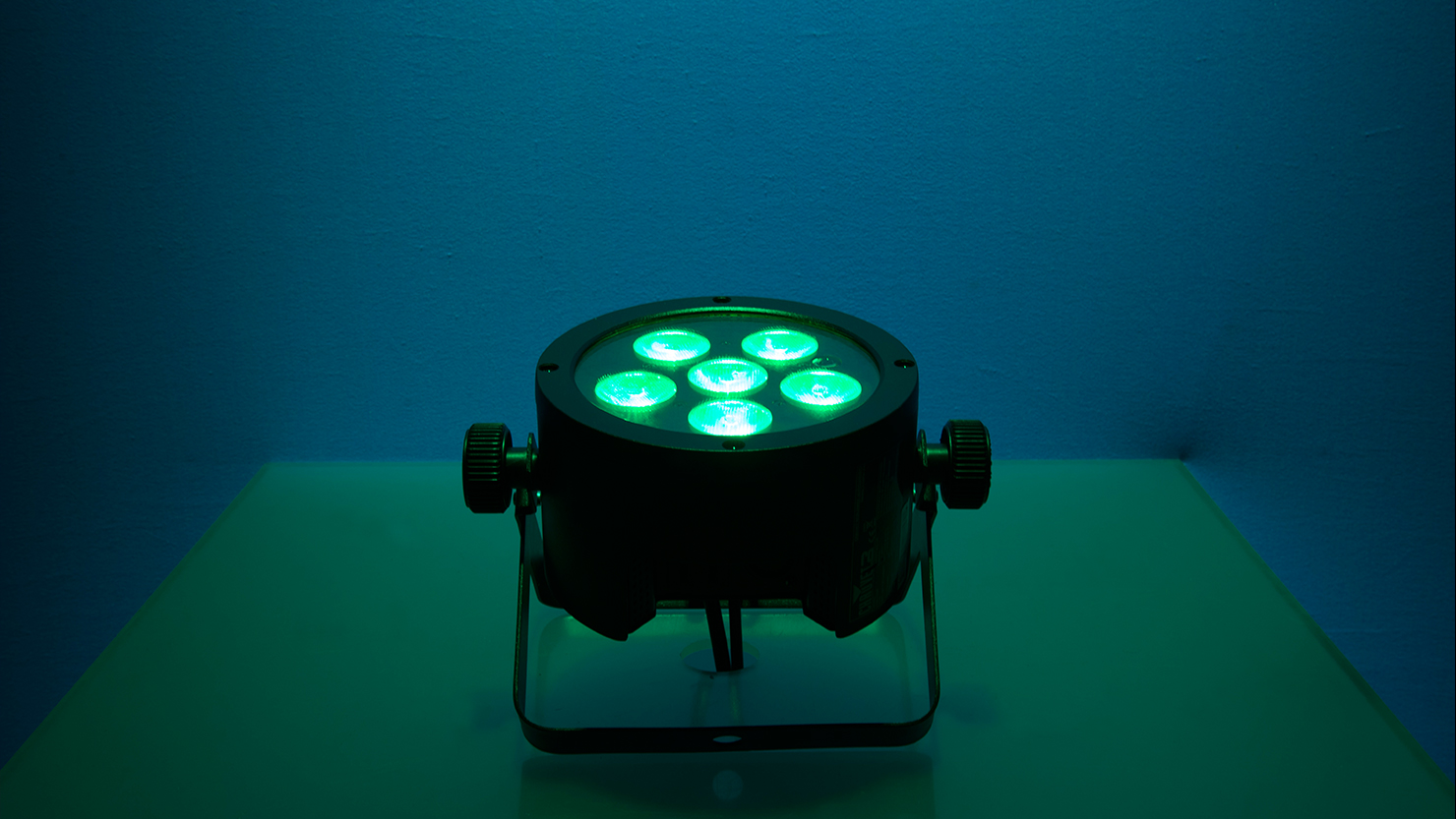

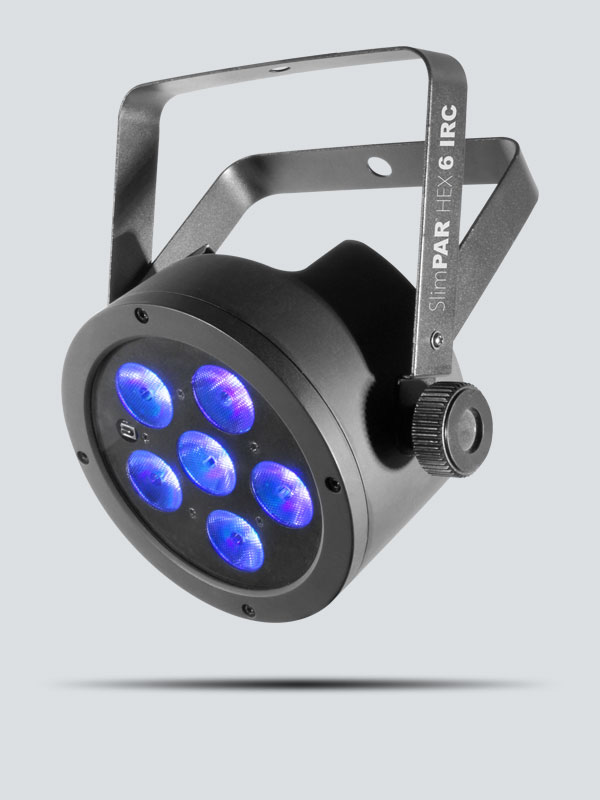

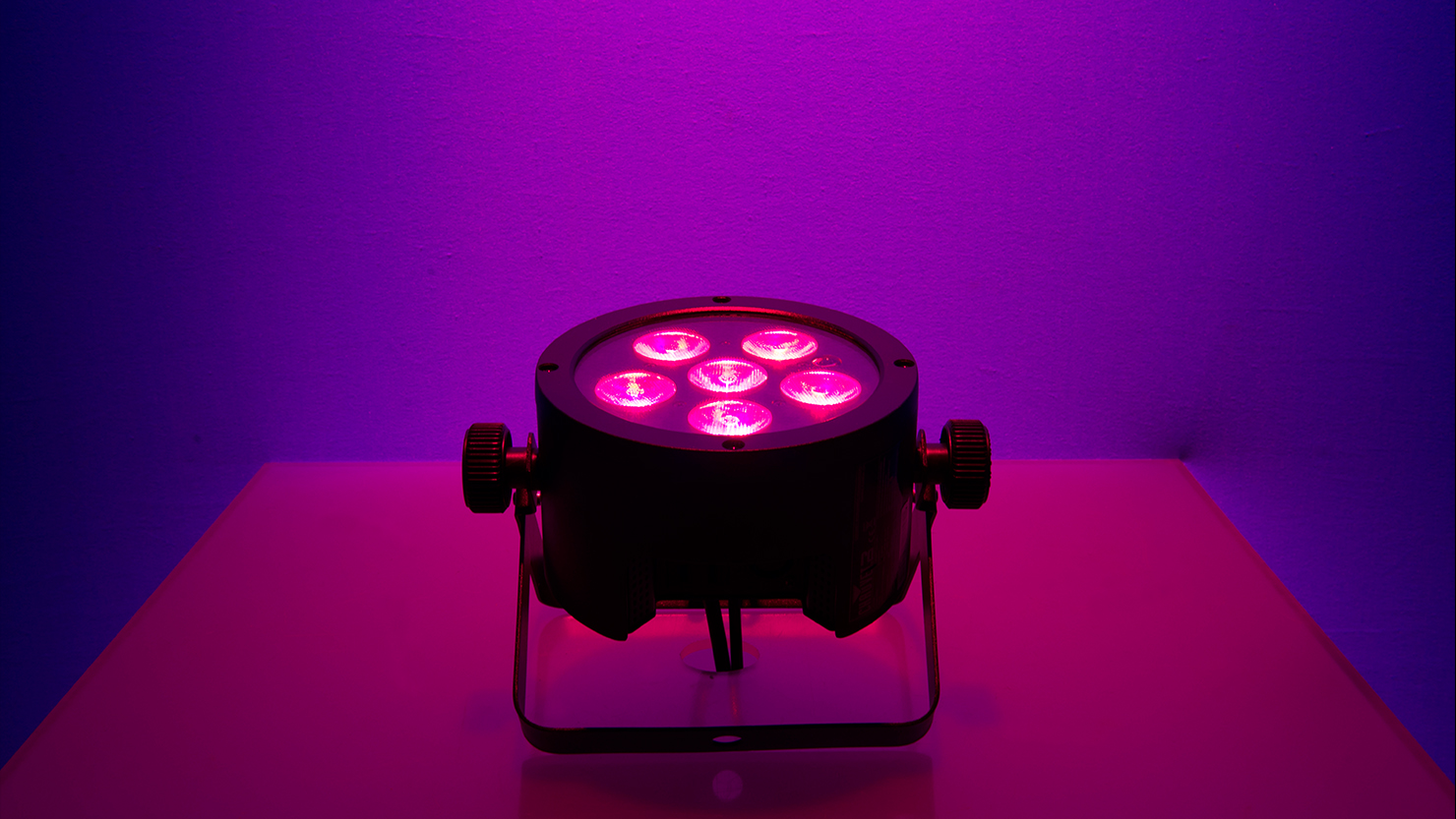

SlimPAR HEX 6 IRC

SlimPAR HEX 6 IRC is a low-profile LED PAR with 6-in-1 LED technology (RGBAW+UV) and built-in infrared remote control capability. The sit-flat housing hugs the floor and features power and DMX outlets on the side, while 6-in-1 LED technology generates a broad spectrum of colors and achieves natural-looking color temperatures. For wireless operation and control, use the optional IRC-6 remote for point-and-shoot operation of static colors and automated programs.

Highlights

  • Low-profile LED PAR with 6-in-1 LED technology (RGBAW+UV) and built-in infrared remote control capability

  • Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology

  • Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote

  • Save time running cables and extension cords by power linking multiple units

  • Multiple control options include DMX, Master/Slave and Sound-Active modes

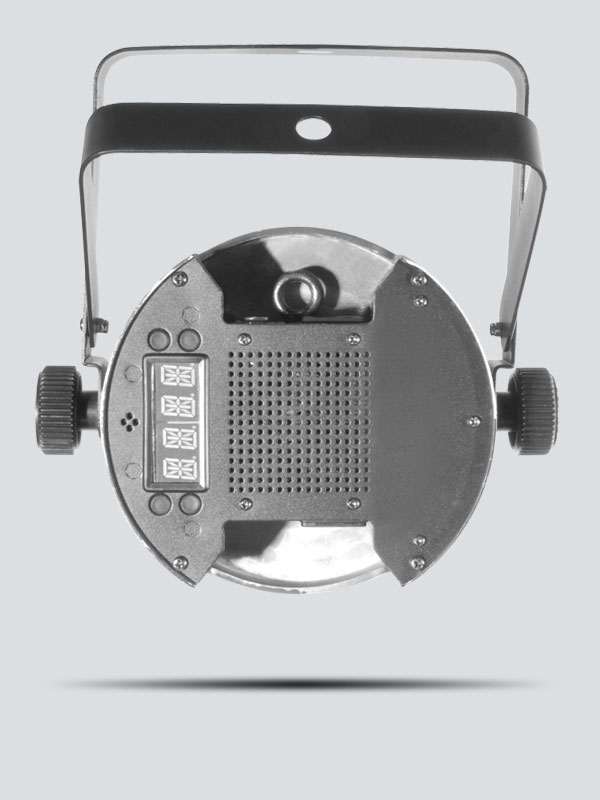

  • Create customized colors using the built-in LED display

  • Achieve smooth LED fading with built-in dimming curves

  • Flicker-free operation suitable for on-camera use

  • Easily transports in the optional CHS-30 VIP Gear Bag

  • Sleek and lightweight to easily fit inside sticks of TRUSST®

Specifications

  • DMX Channels: 6, 8 or 12
  • DMX Connectors: 3-pin XLR
  • Light Source: 6 LEDs (hex-color RGBAW+UV) 10 W (2.4 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 24 Hz
  • PWM Frequency: 1,200 Hz
  • Beam Angle: 23°
  • Field Angle: 41°
  • Illuminance: 1,760 lux @ 2 m
  • Power Linking: 11 units @ 120 V; 21 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 49 W, 0.7 A @ 120 V, 60 Hz
    47 W, 0.4 A @ 230 V, 50 Hz
  • Weight: 4.6 lb (2.2 kg)
  • Size: 9.5 x 8.9 x 3.7 in (241 x 226 x 95 mm)
  • Approvals: CE
  • Optional Controllers: IRC-6
  • Wavelength (UV): 400 to 410 nm

What's Included

  • SlimPAR HEX 6 IRC
  • Power Cord
  • Warranty Card
  • Stickers
