Discontinued Since 2024

SlimPAR Q12BT

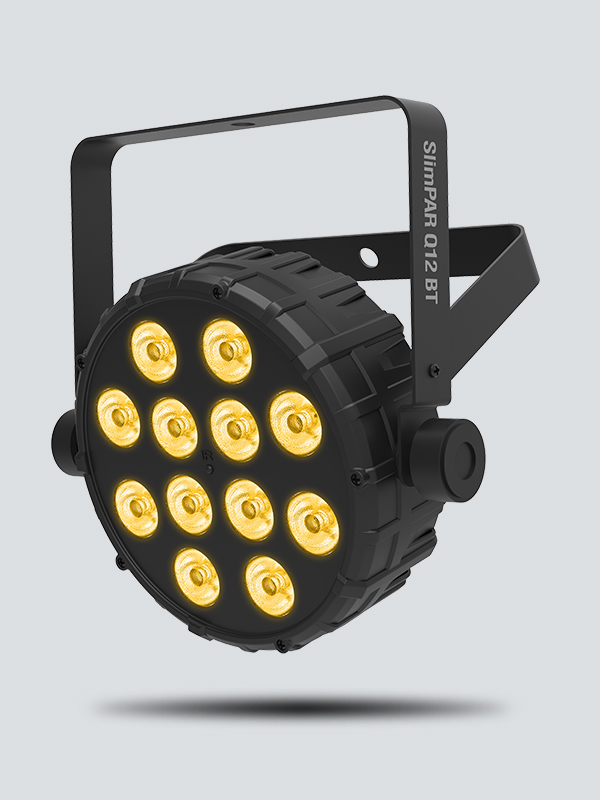

SlimPAR Q12BT is a compact wash light with built-in Bluetooth® wireless technology that allows you to control the light from any smart phone or tablet without the need for any additional hardware.  SlimPAR Q12BT features 12 quad-color (RGBA) LEDs that generate a broad spectrum of colors and achieve natural-looking color temperatures.  Easily set static colors or automated programs with the optional IRC-6 remote or create eye-catching effects with sound-activated and automated programs. Download the BTAir app for free from your favorite online app store. Compatible with BTAir.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Chauvet & Sons, LLC is under license. Other trademarks and trade names are those of their respective owners.

Highlights

  • Compact wash light with built-in Bluetooth® wireless technology

  • Control directly from a smart phone or tablet without any additional hardware

  • Easily set static colors or automated programs with the optional IRC-6 remote

  • Save time running cables and extension cords by power linking multiple units

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

  • Generate eye-catching effects with sound-activated and automated programs

  • Fits best in the CHS-30 VIP Gear Bag

  • Patent Pending

Specifications

  • DMX Channels:12 or 4
  • DMX Connectors:3-pin XLR
  • Max Unobstructed Distance:150 ft (25.7 m)
  • Light Source:12 LEDs (quad-color) 3.5 W, (1.5 A), 50,000 hours life expectancy.
  • Strobe Rate:0 to 25 Hz
  • PWM Frequency:7.8 kHz
  • Beam Angle:17°
  • Field Angle:35°
  • Operating Frequency:2.4 GHz
  • Illuminance:3,650 lux @ 2 m
  • Power Linking:11 units @ 120 V; 20 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:49 W, .7 A @ 120 V, 60 Hz
    48 W, .3 A @ 230 V, 50 Hz
  • Weight:3.2 lb (1.5 kg)
  • Size:10.9 x 10.8 x 2.9 in (279 x 275 x 74 mm)
  • Approvals:CE, FCC
  • Bracket Mounting Hole: 12.5 mm
  • Optional Controllers: IRC-6
  • Bluetooth Version: 4.2

What's Included

  • SlimPAR Q12BT
  • SlimPar Q12BT
  • Power cord
  • Quick Reference Guide
