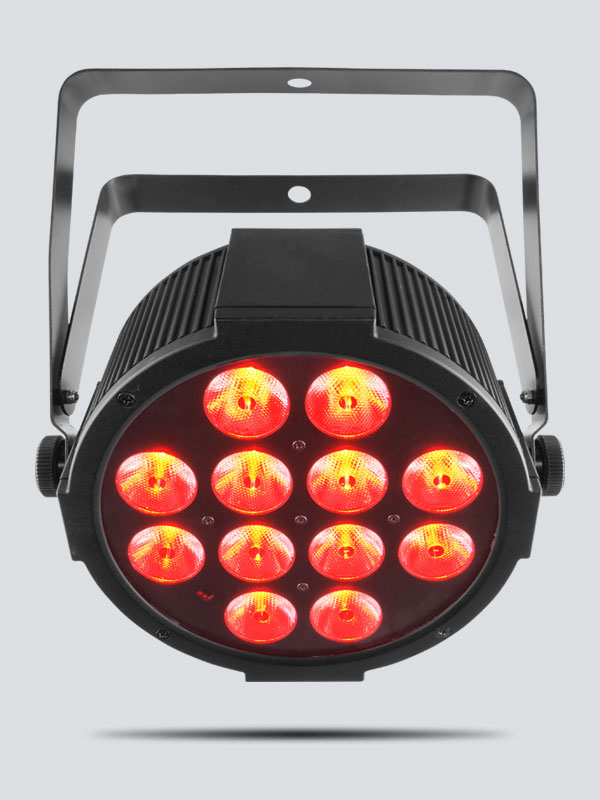

SlimPAR QUV12 USB

SlimPAR QUV 12 USB is a low-profile, high-output, quadcolor (RGB+UV) LED washlight that is D-Fi USB compatible to allow wireless master/slave or DMX control. Punchy UV LEDs generate a broad spectrum of intense colors. Static colors and automated programs can be controlled easily with the optional IRC-6 remote. Multiple user-configurable settings are available to increase standalone versatility. Multiple units can be power linked to save time running cables and extension cords. With no moving parts, this silent, flicker-free fixture is ideal for on camera use. Compact, it can be used as a truss warmer. Fits best in the CHS-30 VIP Gear Bag.

Highlights

  • Low-profile, high-output quad-color (RGB+UV) LED Par

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

  • Generate a broad spectrum of colors and achieve intense colors with punchy UV LEDs

  • Flicker-free operation suitable for on-camera use

  • Easily control static colors and automated programs with the optional IRC-6 remote

  • Ideal for quiet applications due to silent operation and no moving parts

  • Increase standalone versatility with multiple user-configurable settings

  • Save time running cables and extension cords by power linking multiple units

  • Fits best in the CHS-30 VIP Gear Bag

  • Compact design easily fits inside sticks of TRUSST®

Specifications

  • DMX Channels: 4 or 9
  • DMX Connectors: 3-pin XLR
  • Light Source: 12 LEDs quad-color (RGB + UV) 4 W (1.4 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 18 Hz
  • PWM Frequency: 1.2 kHz
  • Beam Angle: 15°
  • Field Angle: 27°
  • Illuminance: 2,377 lux @ 2 m
  • Power Linking: 13 units @ 120 V; 23 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 44 W, 0.6 A @ 120 V, 60 Hz
    41 W, 0.3 A @ 230 V, 50 Hz
  • Weight: 4.6 lb (2.1 kg)
  • Size: 9.7 x 3.6 x 11.5 in (247 x 92 x 293 mm)
  • Approvals: CE
  • Optional Controllers: IRC-6, D-Fi USB

What's Included

  • SlimPAR QUV12 USB
  • Power cord
  • Warranty card
  • Quick Reference Guide
