SlimPAR T12BT

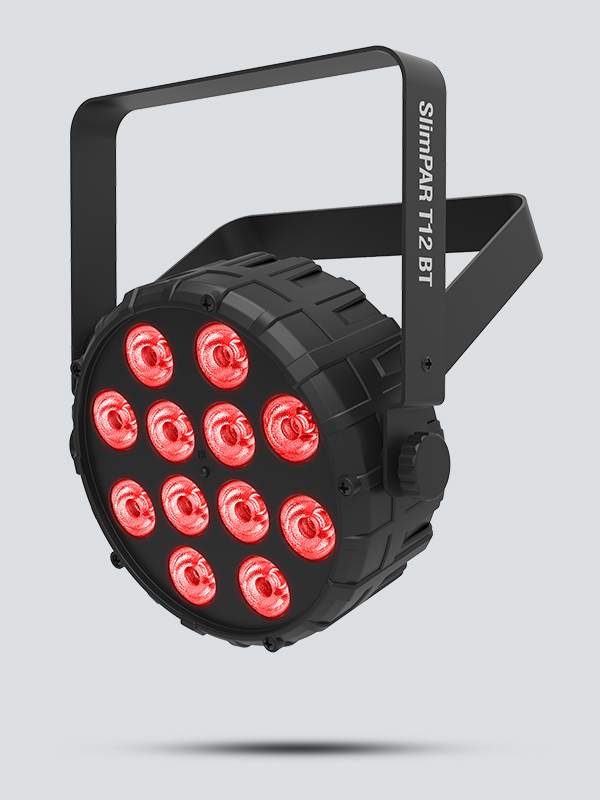

SlimPAR T12BT makes remote light control easy with its on-board Bluetooth® wireless technology. Download the BTAir app (patent pending) for free from your favorite app store and enjoy the ultra-convenient ease of controlling SlimPAR T12BT right from your smart phone or tablet. SlimPAR T12BT has 12 tri-color (RGB) LEDs and its compact design easily fits inside sticks of truss making it perfect for truss warming. An optional IRC-6 remote can also be used for control as well as DMX, automated and sound-activated programs. Compatible with BTAir.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Chauvet & Sons, LLC is under license. Other trademarks and trade names are those of their respective owners.

VIP Rewards Value: 180 Points



Highlights

  • Compact wash light with built-in Bluetooth® wireless technology

  • Control directly from a smart phone or tablet without any additional hardware

  • Easily set static colors or automated programs with the optional IRC-6 remote

  • Access built-in automated programs via IRC-6 remote, Master/Slave or DMX

  • Save time running cables and extension cords by power linking multiple units

  • Fits best in the CHS-30 VIP Gear Bag

  • Compact design easily fits inside sticks of TRUSST

  • Patent Pending

Specifications

  • DMX Channels:3 or 7
  • DMX Connectors:3-pin XLR
  • Light Source:12 LEDs (tri-color RGB) 2.5 W, (1 A), 50,000 hours life expectancy.
  • Strobe Rate:0 to 25 Hz
  • PWM Frequency:7.8 kHz
  • Beam Angle:21°
  • Field Angle:38°
  • Operating Frequency:2.4 GHz
  • Illuminance:2,850 lux @ 2 m
  • Power Linking:13 units @ 120 V; 24 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:43 W, .6 A @ 120 V, 60 Hz
    42 W, .3 A @ 230 V, 50 Hz
  • Weight:2.6 lb (1.2 kg)
  • Size:10.3 x 8.4 x 3 in (264 x 214 x 76.9 mm)
  • Approvals:CE, FCC
  • Bracket Mounting Hole: 12.5 mm
  • Optional Controllers: IRC-6
  • Bluetooth Version: 4.2
  • Max Unobstructed Distance: 150 ft (25.7 m)

What's Included

  • SlimPAR T12BT
  • SlimPar T12BT
  • Power cord
  • Quick Reference Guide
