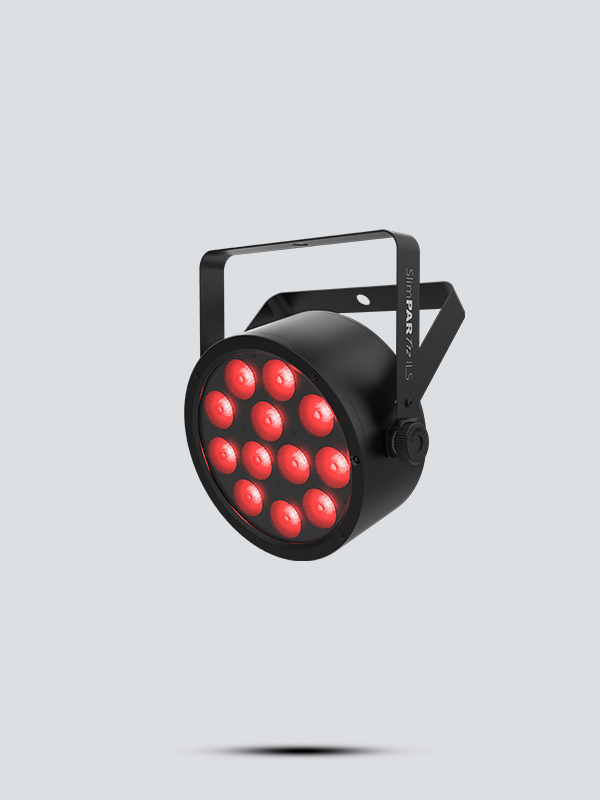

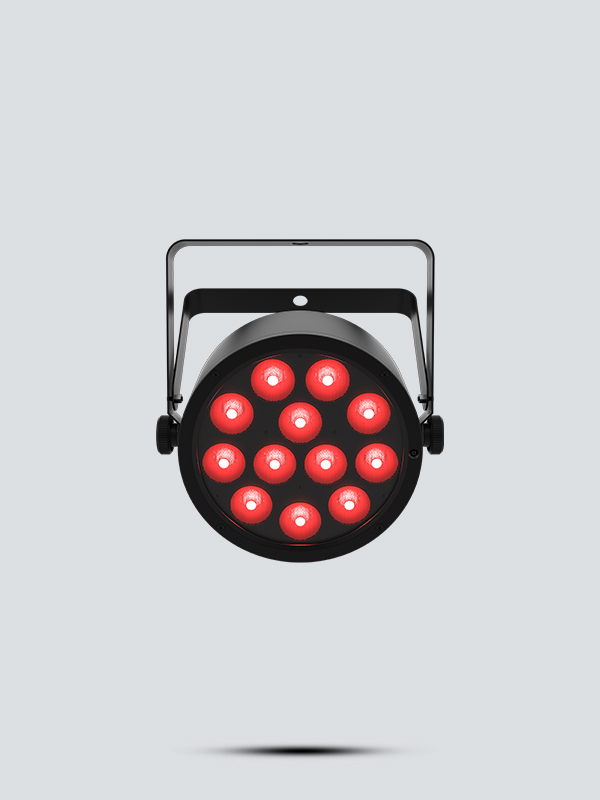

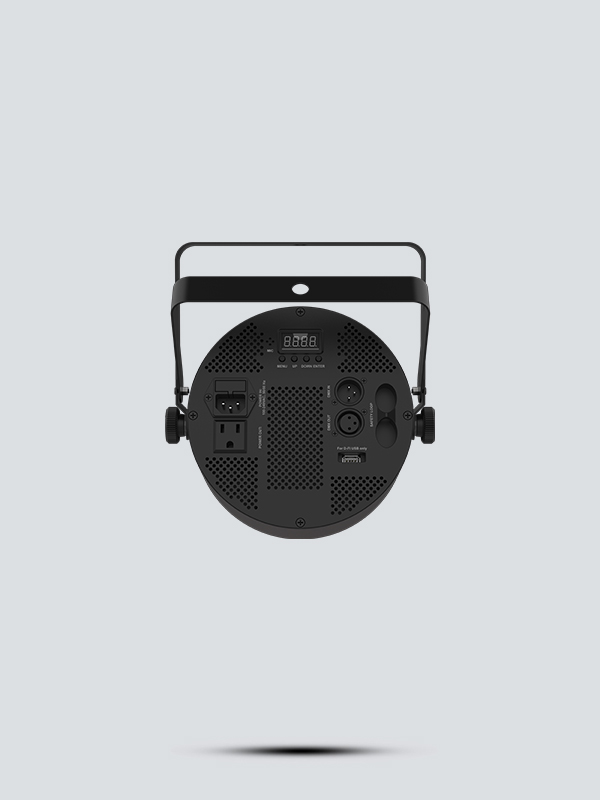

SlimPAR T12 ILS

SlimPAR T12 ILS is a low-profile, high-output tri-color (RGB) LED Par featuring compatibility with ILS which makes creating coordinated light shows across different fixture types easy. D-Fi USB compatibility is also featured for wireless Master/Slave or DMX control. From dance floor to studio, SlimPAR T12 ILS is great for on-camera use because of its flicker-free operation. This powerful par offers convenient access to RGB color mixing and static colors with or without DMX. Access built-in automated programs via IRC-6 remote, Master/Slave or DMX.

VIP Rewards Value: 254 Points



Highlights

  • Low-profile, high-output tri-color (RGB) LED Par

  • ILS compatibility for use in the ILS ecosystem

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

  • Convenient access to RGB color mixing and static colors with or without DMX

  • Flicker-free operation suitable for on-camera use

  • Save time running cables and extension cords by power linking multiple units

  • Access built-in automated programs via IRC-6 remote, Master/Slave or DMX

  • Fits best in the CHS-30 VIP Gear Bag

  • Compact design easily fits inside sticks of TRUSST®

Specifications

  • DMX Channels:3 or 8
  • DMX Connectors:3-pin XLR
  • Light Source:12 LEDs (tri-color RGB) 4.9 W (1.19A , 50,000 hours life expectancy
  • Strobe Rate:0 to 11 Hz
  • Beam Angle:17°
  • Field Angle:29°
  • Illuminance:3,362 lux @ 2 m
  • Lumens:1,415
  • Power Linking:13 units @ 120 V; 23 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    43 W, 0.6 A @ 120 V, 60 Hz
    43 W, 0.3 A @ 230 V, 50 Hz
  • Weight:3.6 lbs (1.6 kg)
  • Size:8.8 x 8.8 x 9.7 in (224.5 x 225.5 x 246 mm)
  • Bracket Mounting Hole: 13 mm
  • Optional controllers: IRC=6

What's Included

  • SlimPAR T12 ILS
  • SlimPAR T12 ILS
  • Power cord
  • Quick Reference Guide
