Discontinued Since 2021

SlimPAR T6 USB

Next Gen Product Available

You might also like:

SlimPAR T6BT

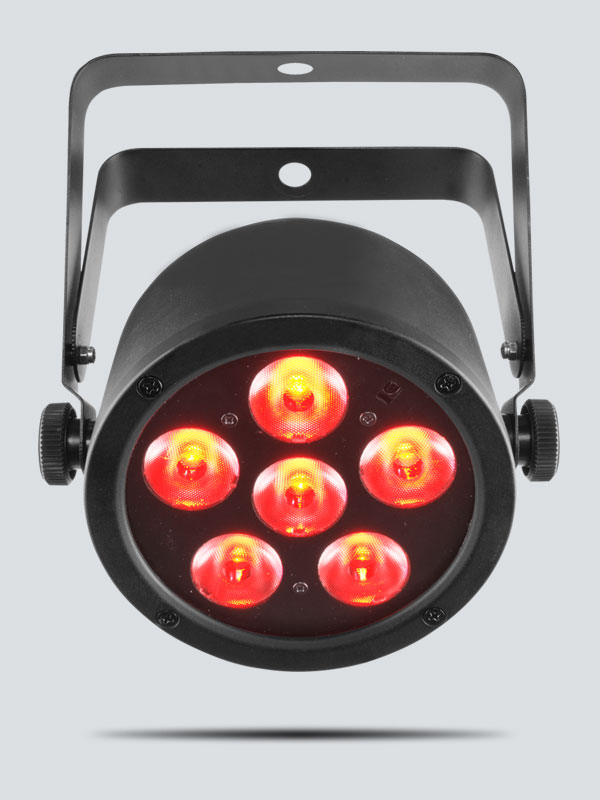

SlimPAR T6 USB is a low profile, high output tri-color (RGB) LED wash light with D-Fi USB compatibility for wireless master/slave or DMX control. As versatile as it is dependable, this compact fixture is an ideal truss warmer. Because of its even output, it’s also an excellent front light, and its flicker-free output makes it an ideal light for broadcast/video applications. The fixture’s tri-color LEDs virtually eliminate multicolored shadows. SlimPAR T6 USB has multiple user-configurable settings, and built-in automated programs are easily accessed via the IRC-6 remote, DMX or master/slave. Multiple units can be power linked. The CHS-30 VIP Gear Bag is recommended for transport.

VIP Rewards Value: 140 Points



Highlights

  • Low-profile, high-output tri-color (RGB) LED Par

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

  • Nearly eliminate multicolored shadows with high-power, tri-color LEDs

  • Convenient access to RGB color mixing and static colors with or without DMX

  • Emits a smooth and even output perfect for frontlight applications

  • Flicker-free operation suitable for on-camera use

  • Increase standalone versatility with multiple user-configurable settings

  • Save time running cables and extension cords by power linking multiple units

  • Access built-in automated programs via IRC-6 remote, Master/Slave or DMX

  • Easily control static colors and automated programs with the optional IRC-6 remote

  • Fits best in the CHS-30 VIP Gear Bag

  • Compact design easily fits inside sticks of TRUSST

Specifications

  • DMX Channels:3 or 8
  • DMX Connectors:3-pin XLR
  • Light Source:6 LEDs (tri-color RGB) 3 W (800 mA), 50,000 hours life expectancy
  • Strobe Rate:0 to 25 Hz
  • PWM Frequency:1.2 kHz
  • Beam Angle:15°
  • Field Angle:29°
  • Illuminance:1,621 lux @ 2 m
  • Power Linking:31 units @ 120 V; 52 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:18 W, 0.3 A @ 120 V, 60 Hz
    18 W, 0.2 A @ 230 V, 50 Hz
  • Weight:2.4 lb (1.1 kg)
  • Size:7.1 x 3.3 x 9 in (181 x 84 x 226 mm)
  • Approvals:CE
  • Optional Controllers: IRC-6

What's Included

  • SlimPAR T6 USB
  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
