Swarm 4 FX

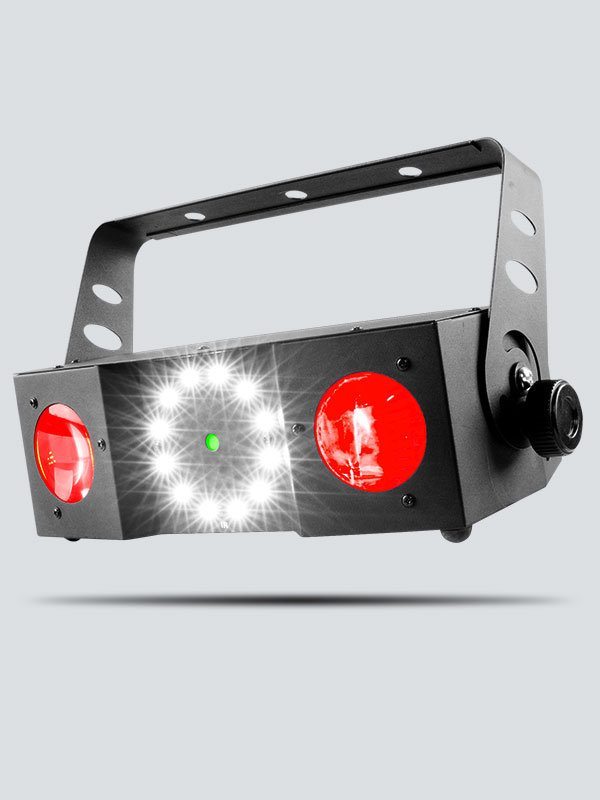

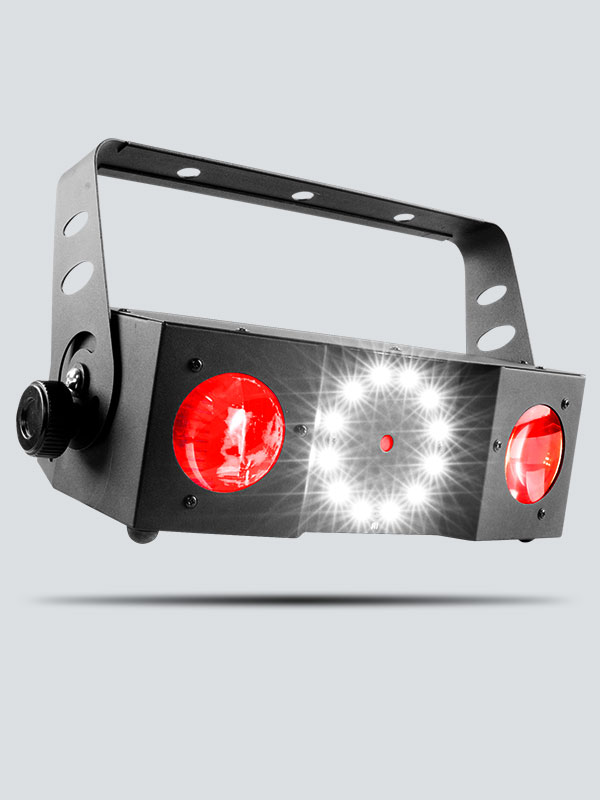

Swarm 4 FX combines three dynamic lighting effects in one rugged and compact housing. A single fixture includes quad-color (RGBA) dual moonflowers, a red/green laser and a white strobe. The dual moonflowers spin enough colorful beams to fill an entire dance floor with energy and excitement. Added impact is provided by the thousands of razor sharp red and green beams produced by the laser. The bright output of the strobe ring, which features built-in motion effects, adds to the fun. Control options include sound activation, master/slave, DMX modes or the IRC-6 remote.

Highlights

  • The perfect mixture of 3 LED lighting effects in one compact housing

  • Ultra-bright, quad-color moonflower, red/green laser and white strobe effect

  • Dual LED moonflowers fill the dancefloor with multi-colored spinning beams

  • Red and green laser produces thousands of razor sharp beams

  • Create energy with included ultra-bright LED strobe ring with built-in motion effects

  • Convenient control of color and program output from the display, IRC-6 remote, and DMX

  • Flexible control using automated and sound-activated programs, Master/Slave or DMX modes

  • Save time running cables and extension cords by power linking multiple units

  • Fits best inside the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels: 2 or 12

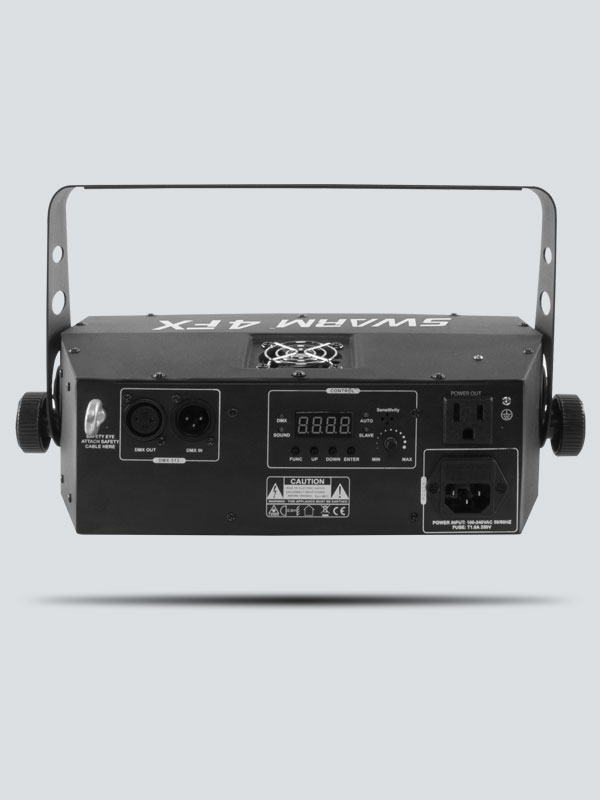

  • DMX Connectors: 3-pin XLR
  • Light Source: (moonflower): 2 LEDs (quad-color RGBA) 13 W (4.4 A), 50,000 hours life expectancy
    (strobe): 12 LEDs (white) 1 W (300 mA), 50,000 hours life expectancy
    (laser): 532 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
  • Strobe Rate: 0 to 11 Hz
  • Power Linking: 11 units @ 120 V; 21 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 47 W, 0.7 A @ 120 V, 60 Hz
    46 W, 0.4 A @ 230 V, 50 Hz
  • Weight: 5.4 lb (2.5 kg)
  • Size: 11.4 x 14.2 x 4.2 in (290 x 360 x 107 mm)
  • Approvals: CE, FDA
  • Optional Controllers: IRC-6

What's Included

  • Swarm 4 FX
  • Power cord
  • Hanging Bracket w/ mounting hardware
  • Warranty card
