New

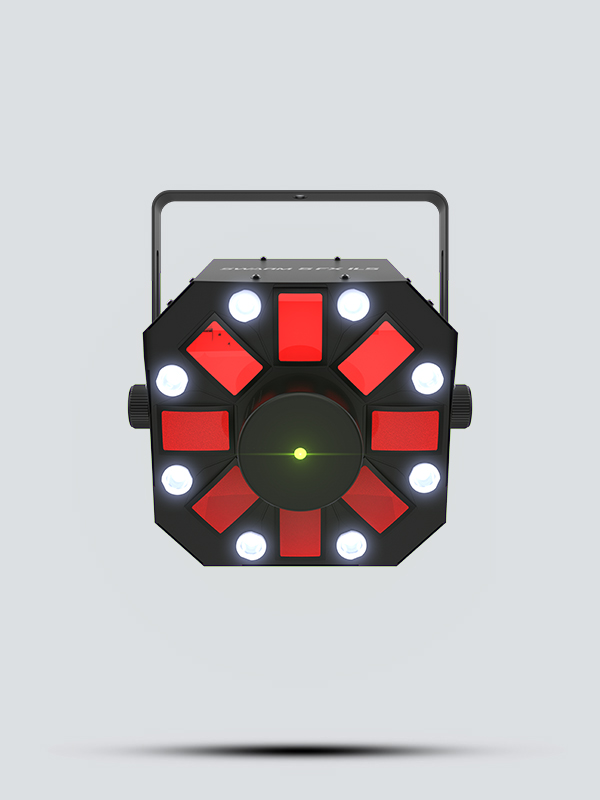

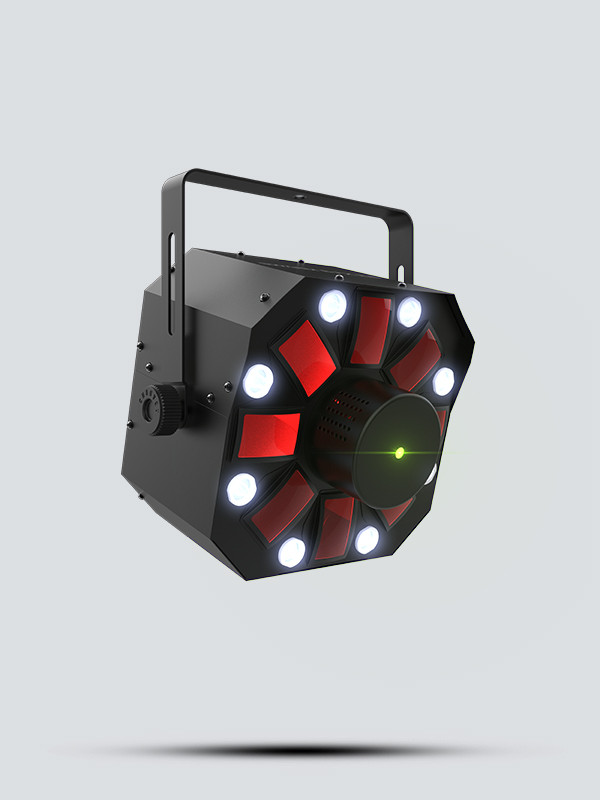

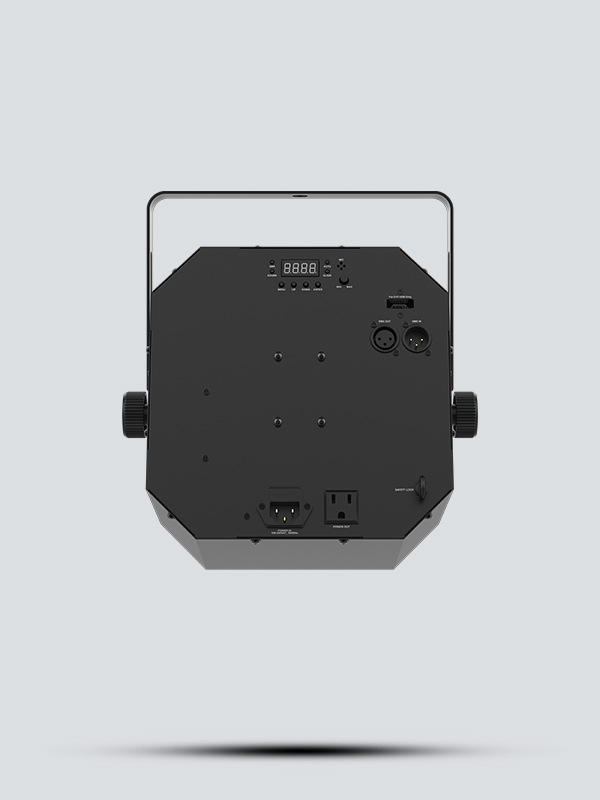

Swarm 5 FX ILS

Your parties deserve the excitement of Swarm 5 FX ILS. This 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect and compatibility with the cutting edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Swarm 5 FX ILS also features D-Fi USB compatibility for wireless Master/Slave or DMX control. Flexibility is even greater with automated and sound-activated programs, or Master/Slave and DMX modes and separate color and program control.

VIP Rewards Value: 333 Points



Highlights

  • 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect

  • ILS compatibility for use in the ILS ecosystem

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

  • Laser projects thousands of red and green laser beams

  • Operation allows for separate color and program control

  • Increase control options using automated and sound-activated programs, or Master/Slave and DMX modes

  • Save time running cables and extension cords by power linking multiple units

  • Fits best inside the CHS-40 VIP gear bag

Specifications

  • DMX Channels: 9
  • DMX Connectors: 3-pin XLR
  • Light Source: (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), 50,000 hours life expectancy
    (strobe): 8 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
    (laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle: (strobe): 17°
  • Field Angle: (strobe): 35°
  • Coverage Angle: (laser): 100°
    (Swarm): 65°
  • Illuminance: (strobe): 823 lux @ 2 m
  • Power Linking: 15 units @ 120 V; 26 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 62 W, 0.5 A @ 120 V, 60 Hz
    62 W, 0.3 A @ 230 V, 50 Hz
  • Weight: 9.8 lb (4.5 kg)
  • Size: 9.75 x 11.7 x 12.2 in (248 x 298 x 310 mm)
  • Approvals: CE, FDA, RoHS, UKCA
  • Classified per EN/IEC 60825-
  • Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice

What's Included

  • Swarm 5 FX ILS
  • Swarm 5 FX ILS
  • Power cord
  • User Manual
