Swivel Coupler (Load Rated)

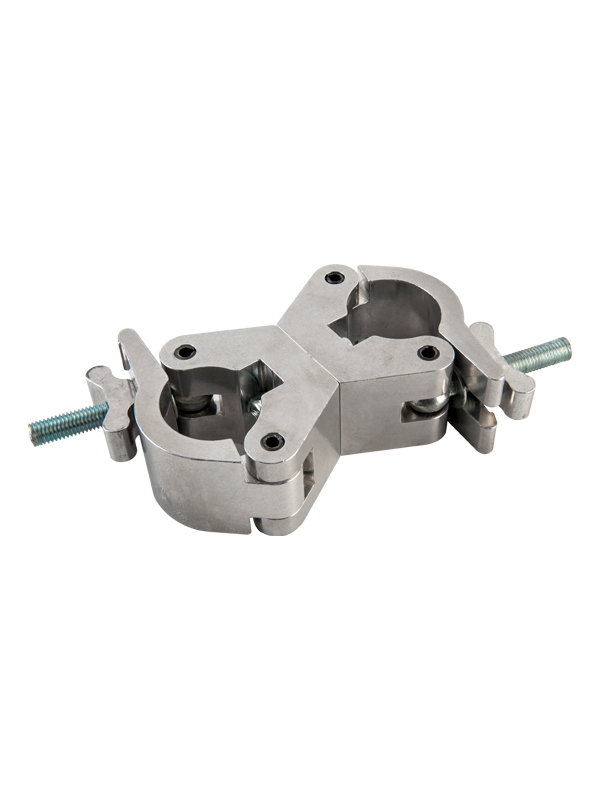

The CTC-50SCL is a load rated swivel coupler which features captive T-handles and a load rating of 750 kg (1,650 lbs). The CTC-50SCL is field lockable into a fixed coupler at 90 degree increments using two high-strength graded cap screws. The CTC-50SCL also features a heavy duty construction that wraps completely around truss for added stability, security, and long lasting reliability.

*includes Mexico & Canada

Highlights

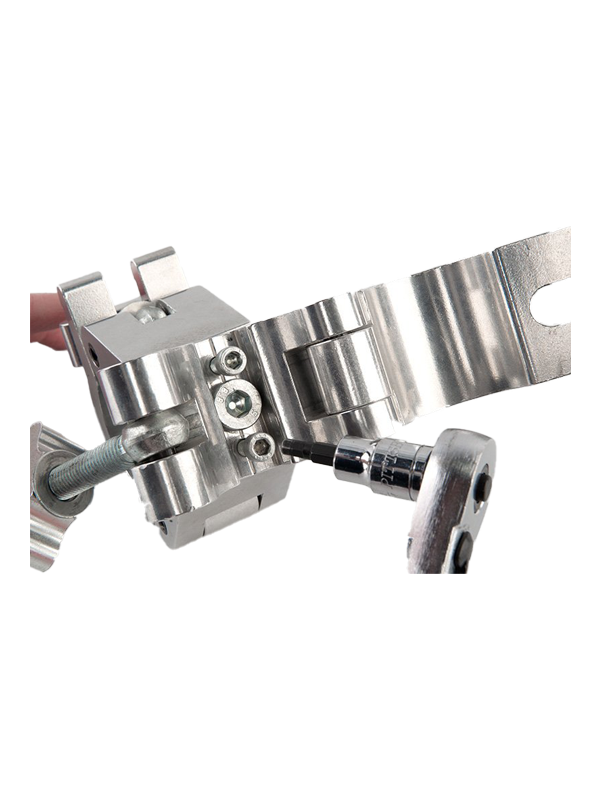

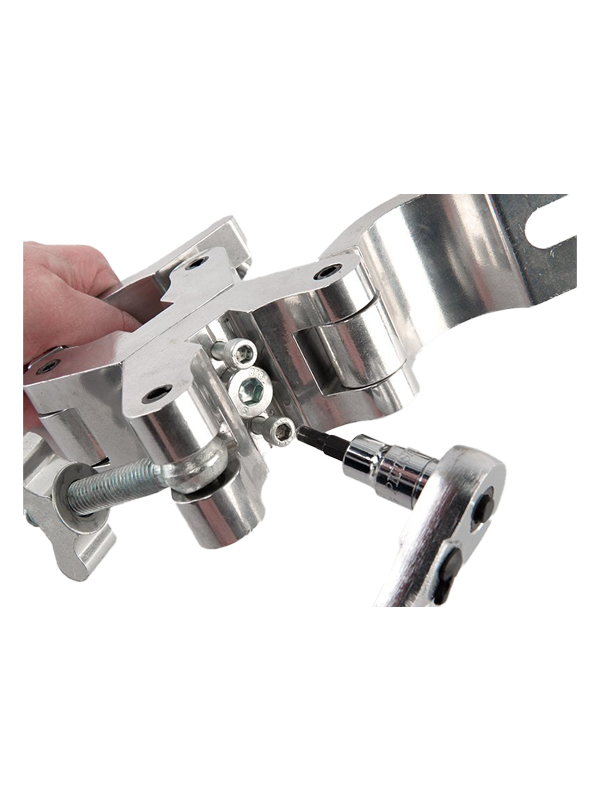

  • Field lockable in 90 degree increments to create a fixed coupler using two graded bolts

  • Swivel-coupler clamp made of heavy duty extruded aluminum

  • Built with versatility, safety and durability in mind

  • 360-degree wrap around style won’t scratch or damage truss

  • Fits the CT290 series and other major brands of truss

  • Heavy duty captive T-handle for easy installation

  • Ideal for hanging light fixtures from truss and pipe systems

Specifications

  • Colors:Natural aluminum, clear anodized
  • Weight:2.8 lb. (1.3 kg)
  • Size:11.5 x 1.9 x 4.5 in (292 x 50 x 114 mm)

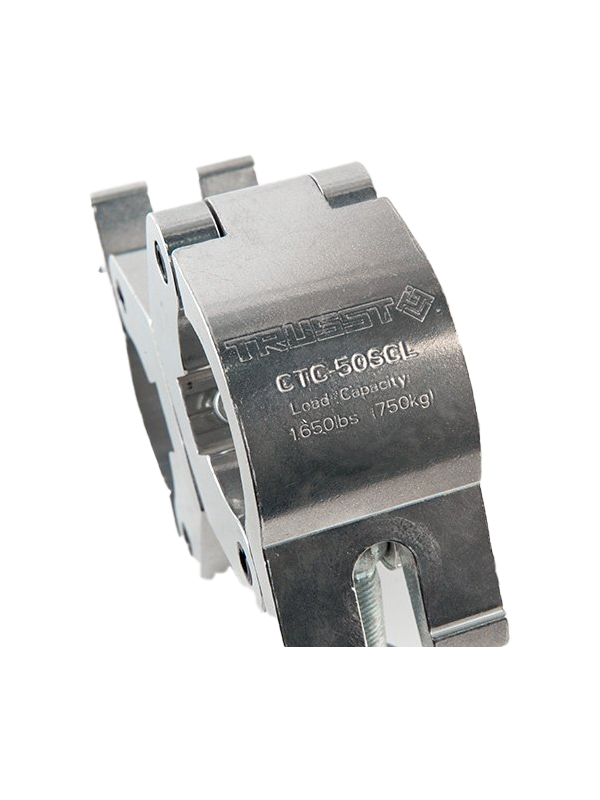

  • Load capacity: 1,650 lb. (750 kg)
  • Fits: 2 inch (50 mm) truss

What's Included

  • Swivel Coupler (Load Rated)
  • CTC-50SCL
