Discontinued Since 2014

Timer System Package

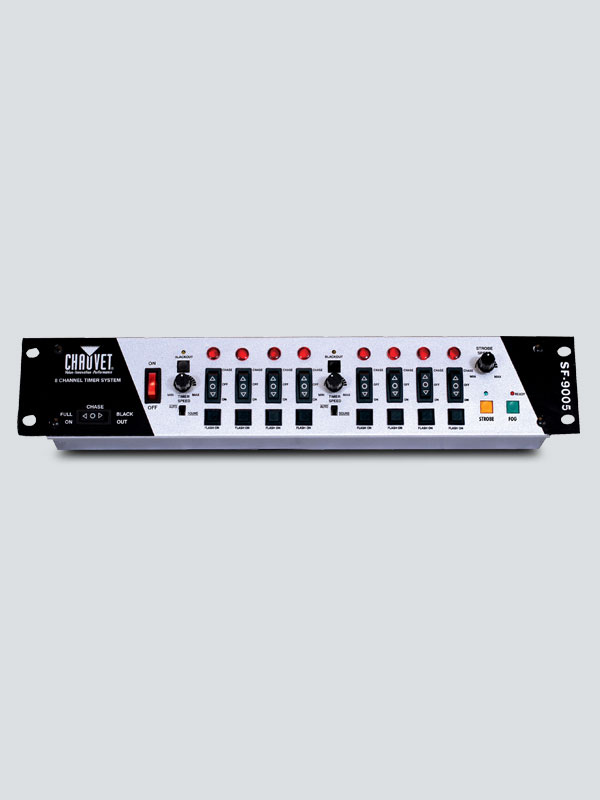

The SF-9005 Timer System Package includes 1 SF-9005 controller, 1 SR-8 Relay Pack, and 1 SF-EXCB 9-pin 25ft. extension cable for linking the controller and relay pack. The package features 8 on/off/chase switches. They can be configured and adjusted to perform one of two chase patterns, either 16-pattern sound activation for channels 1-4 and/or 5-8, and a timed chase with user-definable speeds from twenty seconds to fifteen minutes. The controller also features built-in fog and strobe controllers, a three-way switch for selecting full on, chase, or blackout, and an output for the CH-865/866 controller.

Highlights

  • Convenient pack includes: double space (2U) mounting rack, 8-channel relay pack (SR-8) and 25 ft (SF-EXCB) linking cable

  • Individual control of 2 separate zones with 4 channels each (8 channels total)

  • Each zone contains: 4 channels with LED indicator and flash button, separate blackout button, selector switch for automatic or sound-activated programs; speed control knob for automatic programs (20 sec – 15 min)

  • Compatible with external 16-pattern controller (CH-866, sold separately)

  • Connect up to 2 relay packs together (SR-8, sold separately)

  • Increase effects with fog and adjustable strobe speed control buttons

  • Non-switched output for linking relay packs (on SR-8)

Specifications

  • Input Voltage: (controller): 120/230 VAC, 50/60 Hz (switchable)
    (relay pack): 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: (controller): 1 W, 0.1 A @ 120 V, 60 Hz
    (controller): 1 W, 0.1 A @ 230 V, 50 Hz
  • Weight: (controller): 4.6 lb (2.1 kg)
    (relay pack): 2.5 lb (1.3 kg)
  • Size: (controller): 19 x 3.5 x 3.7 in (482 x 88 x 94 mm)
    (relay pack): 14 x 3.8 x 1.8 in (356 x 97 x 46 mm)
  • Approvals: CE
  • Output: (relay pack 120 V): 5 A (575 W) per channel, 15 A (1,725 W) max
    (relay pack 230 V): 5 A (1,150 W) per channel, 15 A (3,450 W) max
  • Rackmount: (controller): 2U

What's Included

  • Timer System Package
  • SR-8 relay pack
  • SF-EXCB extension cable
  • User Guide
  • Warranty card
