Discontinued Since 2022

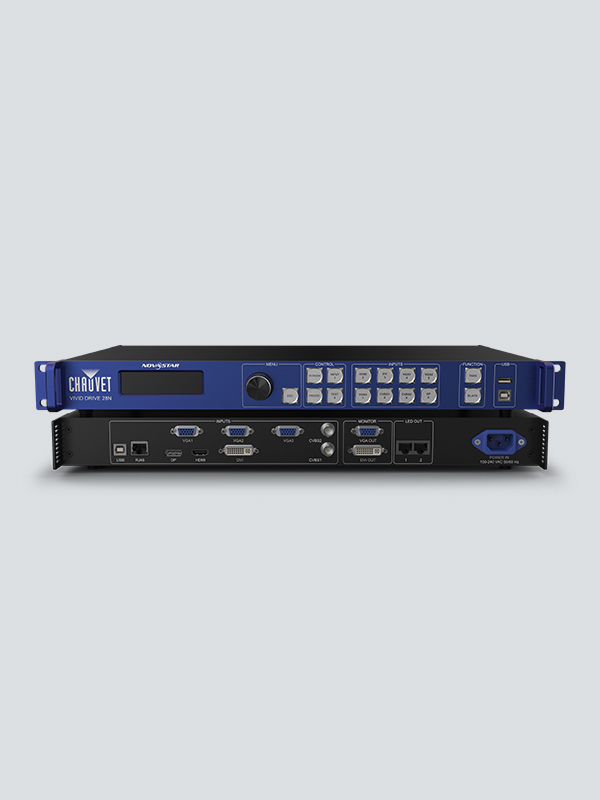

Vivid Drive 28N

Vivid Drive 28N is an easy-to-use video driver for CHAUVET DJ Vivid 4 video panels or any Novastar video panel. No computer needed! Vivid Drive 28N features powerful standalone mapping and a built-in video scaler for quick resizing of video content. Numerous input/output options are on board as well as backlit buttons for easy viewing in dark environments. The front knob can be set to control the master dimmer and you can seamlessly transition between different inputs with multiple transition effects. Compact 1U packing eases transportation and integration into your existing setup.

VIP Rewards Value: 2800 Points



Highlights

  • Video driver with numerous input/output options for any Novastar video panel

  • Powerful standalone mapping without the need for a computer

  • Built-in video scaler allows for quick resizing of all video content

  • Buttons are backlit for easy viewing in dark environments

  • Front knob can be set to control the master dimmer

  • Seamlessly transition between different inputs with multiple transition effects

  • Compact 1U packing eases transportation and integration into your existing setup

Specifications

  • Rackmount:1U
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:42 W, 0.7 A @ 120 V, 60 Hz
    42 W, 0.4 A @ 230 V, 50 Hz
  • Weight:4.8 lb (2.2 kg)
  • Dimensions:19 x 12 x 1.7 in (483 x 305 x 44 mm)
  • Approvals:CE
  • Control Protocol: Novastar
  • Control Input Connectors: USB, RJ45
  • Video Input Connectors: HDMI, Display Port, DVI, VGA (x3), CVBS (x2)
  • Video Output Connector: DVI, VGA, RJ45 (x2)
  • Max. Supported LEDs: 1,310,720
  • Max. Supported Panels (Vivid 4):: 30 per RJ45
  • Max. Supported Resolution: 1920 x 1080

What's Included

  • Vivid Drive 28N
  • Vivid Drive 28N
  • Power cord
  • DVI cable
  • VGA cable
  • DP cable
  • HDMI cable
  • RJ45 cable
  • DP to HDMI adaptor
  • USB cable
