Wash FX 2

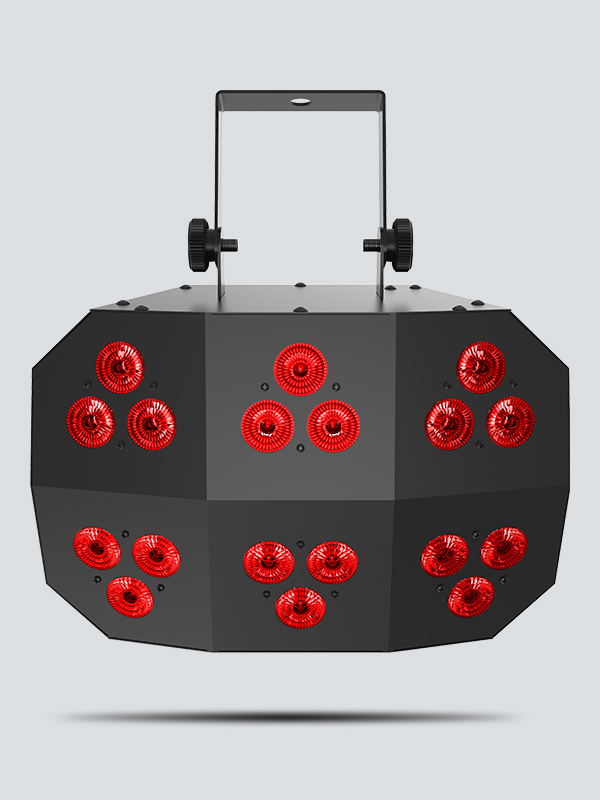

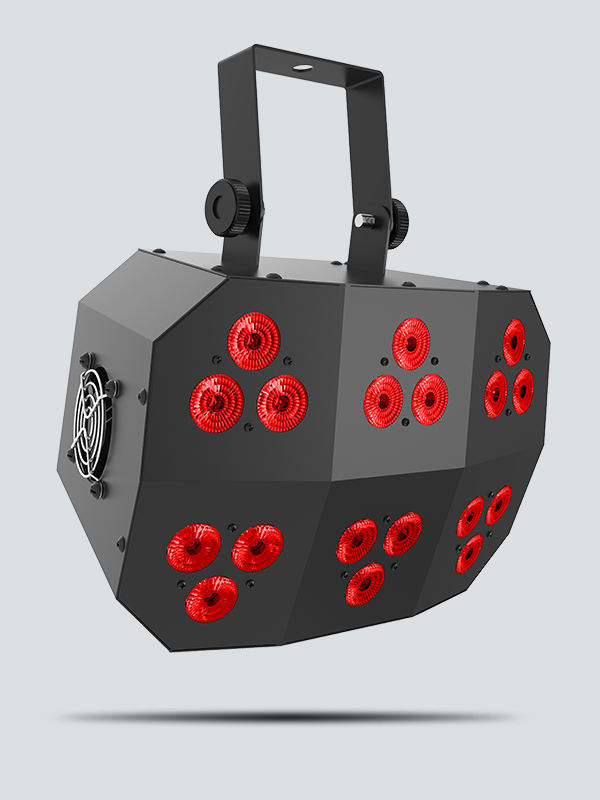

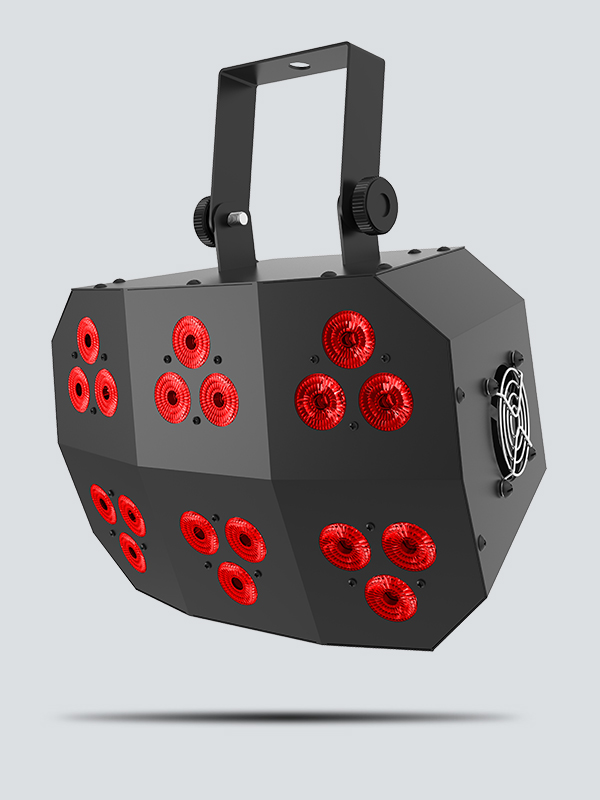

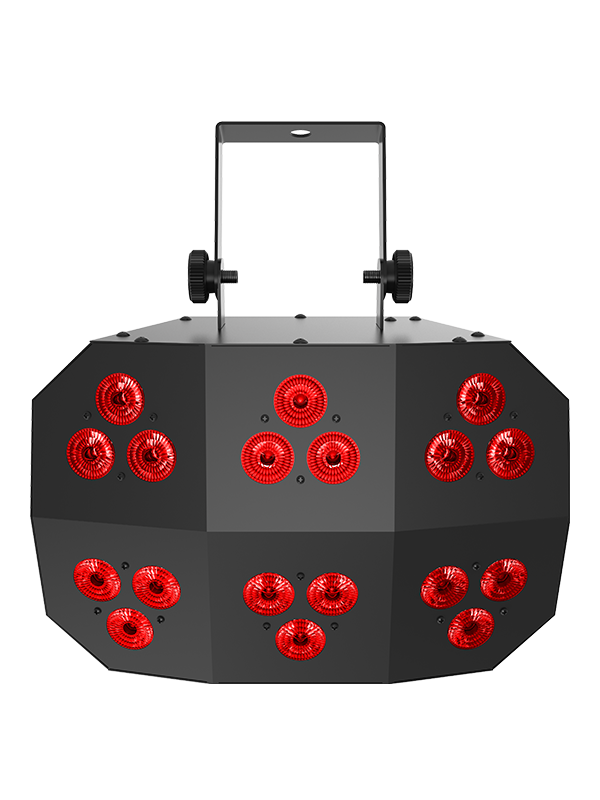

Wash FX 2 is a multi-purpose effect light with 18 Quad-color (RGB+UV) LEDs that can be used as a regular wash light or eye-candy effect with 6 chasing zones. Powerful UV LEDs create a psychedelic blacklight effect and provide brilliant color-mixing capabilities. Wash FX 2 can be controlled with the IRC6 wireless remote for wireless triggering or in stand-alone, DMX, IR or master/slave modes. Fits best in the CHS-40 VIP Gear Bag.

Highlights

  • Multi-purpose effect light designed for mobile entertainers

  • Use as a regular wash light or eye-candy effect with 6 chasing zones

  • Powerful UV LEDs create a psychedelic blacklight effect

  • Multiple control options include stand-alone, DMX, IR or master/slave

  • Compatible with the IRC6 wireless remote for wireless triggering

  • Power linking saves time running cables

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels:3, 4, 8 or 28

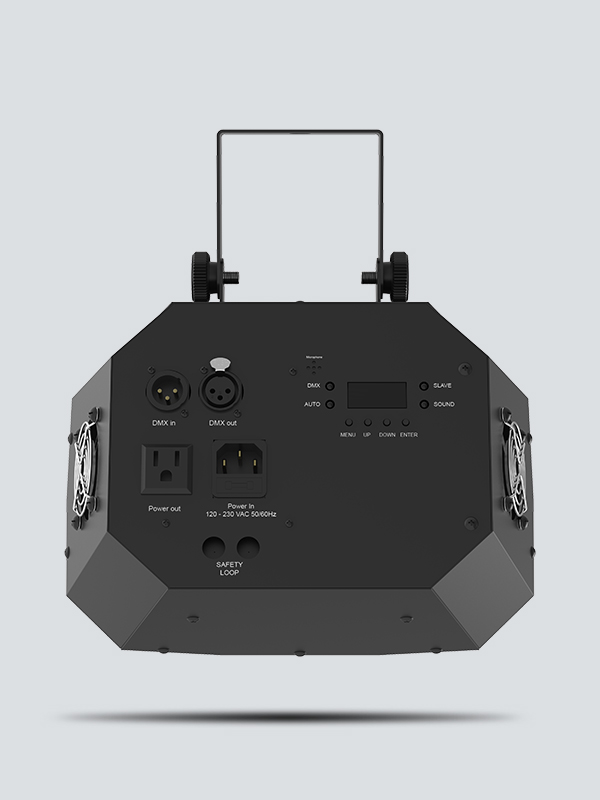

  • DMX Connectors:3-pin XLR
  • Light Source:18 LEDs (quad-color RGB+UV) 6 W, 2 A, 50,000 hours life expectancy
  • Strobe Rate:0 to 25 Hz
  • PWM Frequency:78.126 Hz
  • Beam Angle:40 degrees
  • Field Angle:64 degrees
  • Illuminance:1,795 lux @ 2 m
  • Power Linking:6 units @ 120 V; 12 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:145 W, 1.3 A @ 120 V, 60 Hz
    141 W, 0.6 A @ 230 V, 50 Hz
  • Weight:5.8 lbs (2.6 kg)
  • Size:10.7 x 6.3 x 7.2 in (273 x 160 x 183 mm)
  • Approvals:CE
  • Optional Controllers: IRC-6
  • Wavelength: 395 to 405 nm

What's Included

  • Wash FX 2
  • Wash FX 2
  • Power Cable
