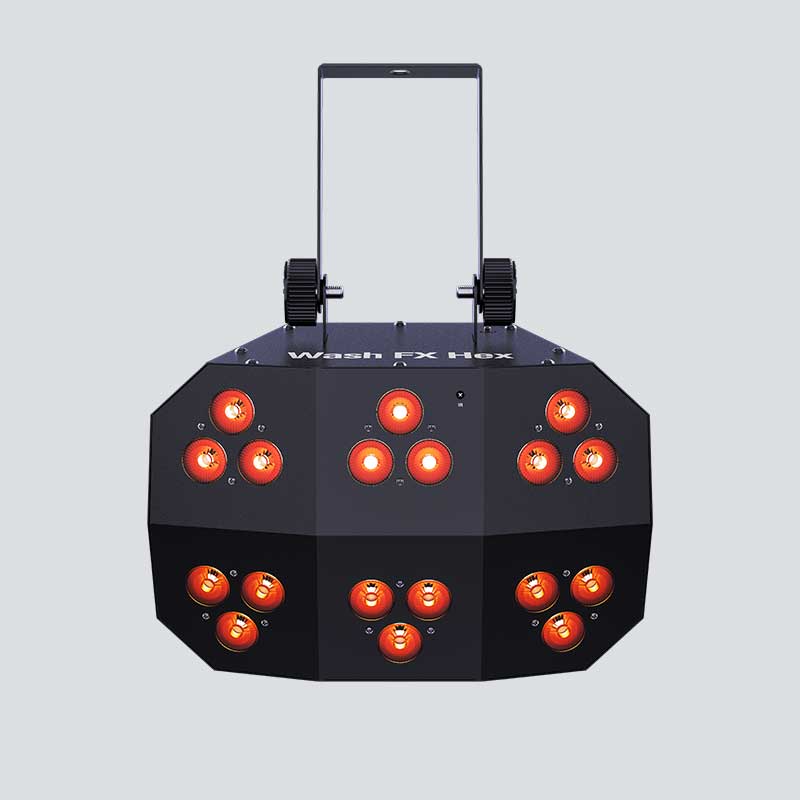

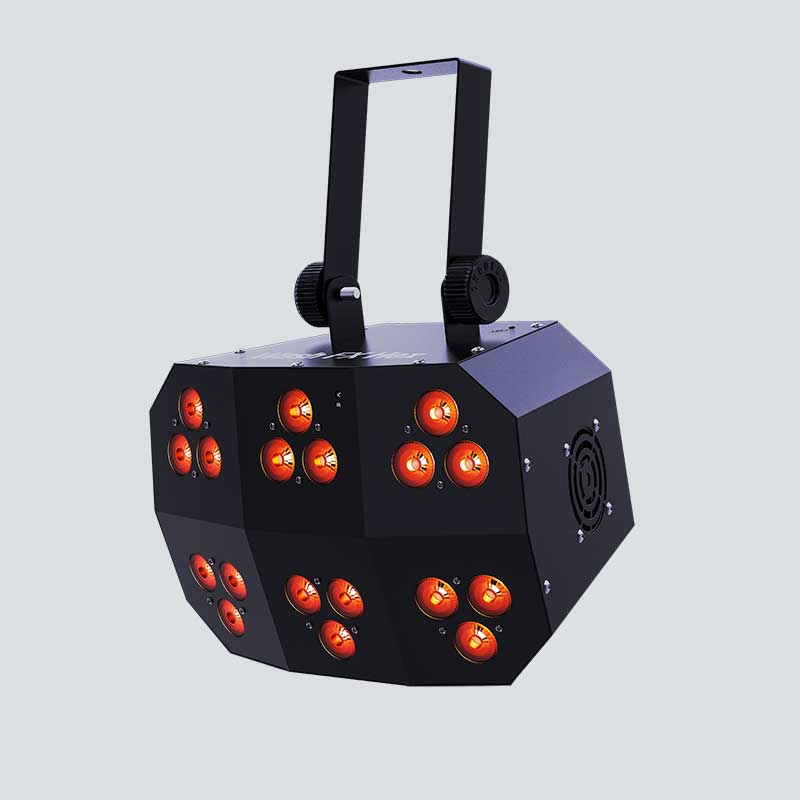

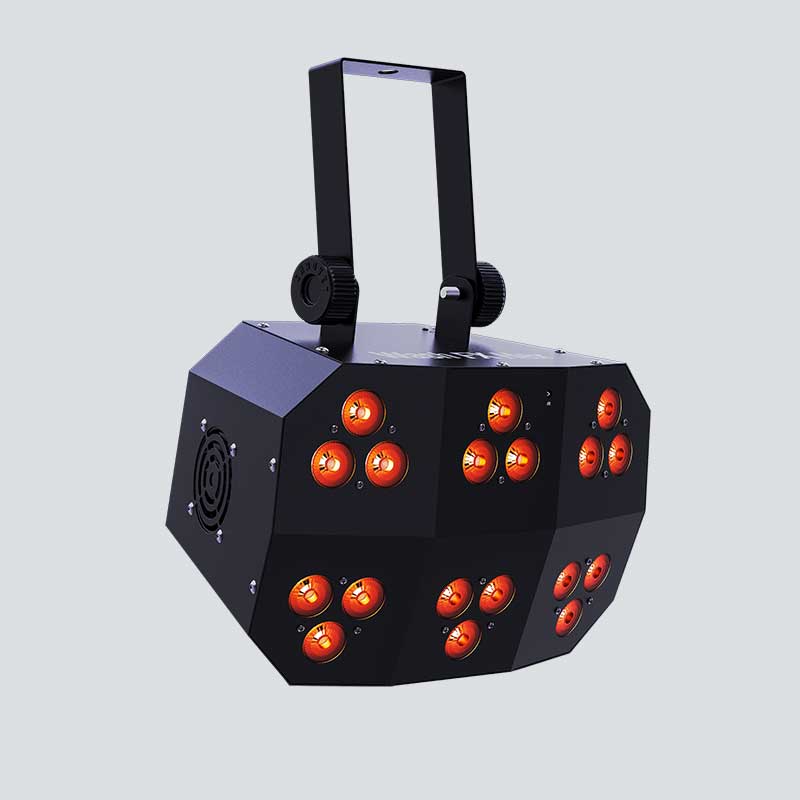

Wash FX Hex

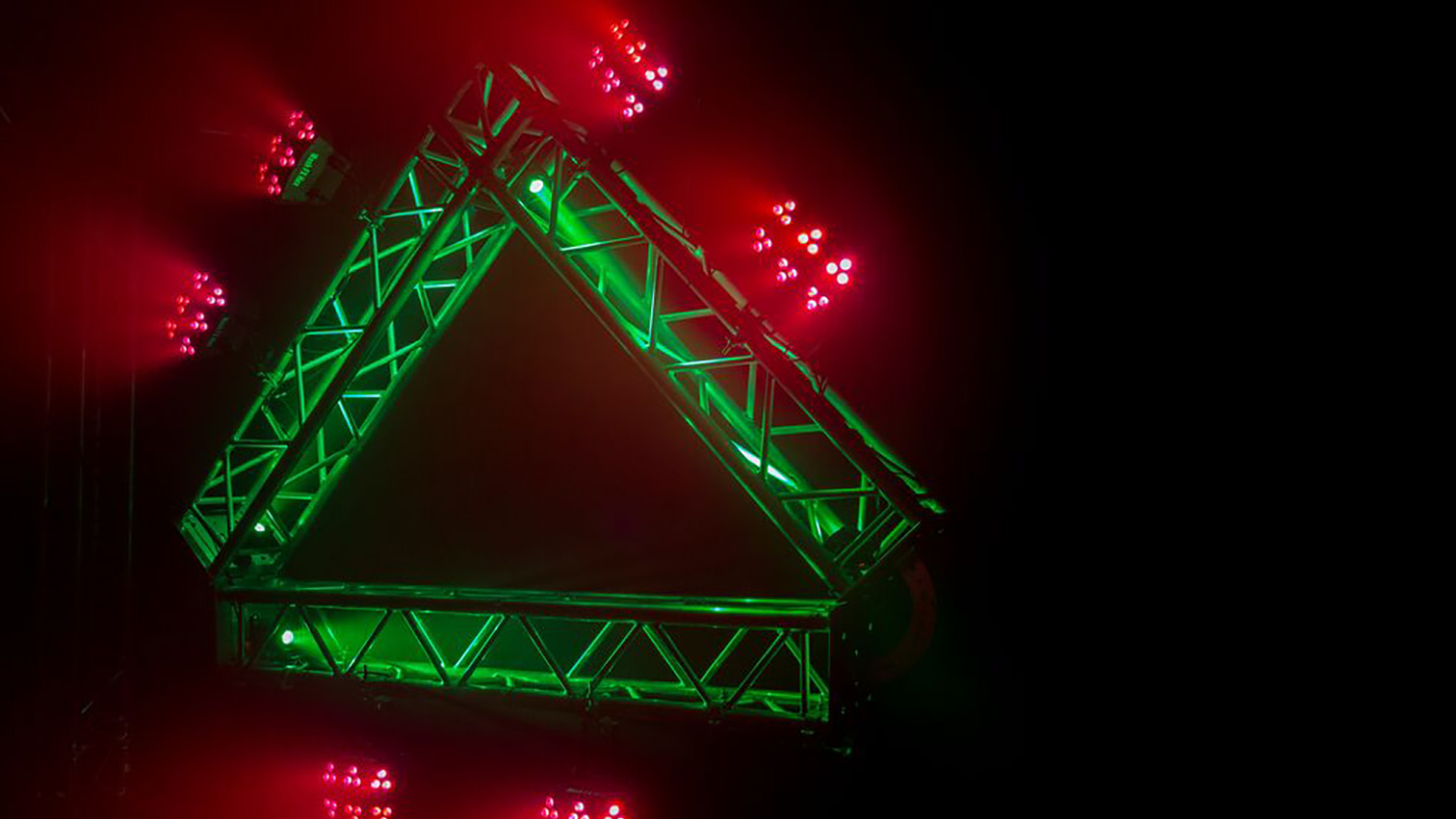

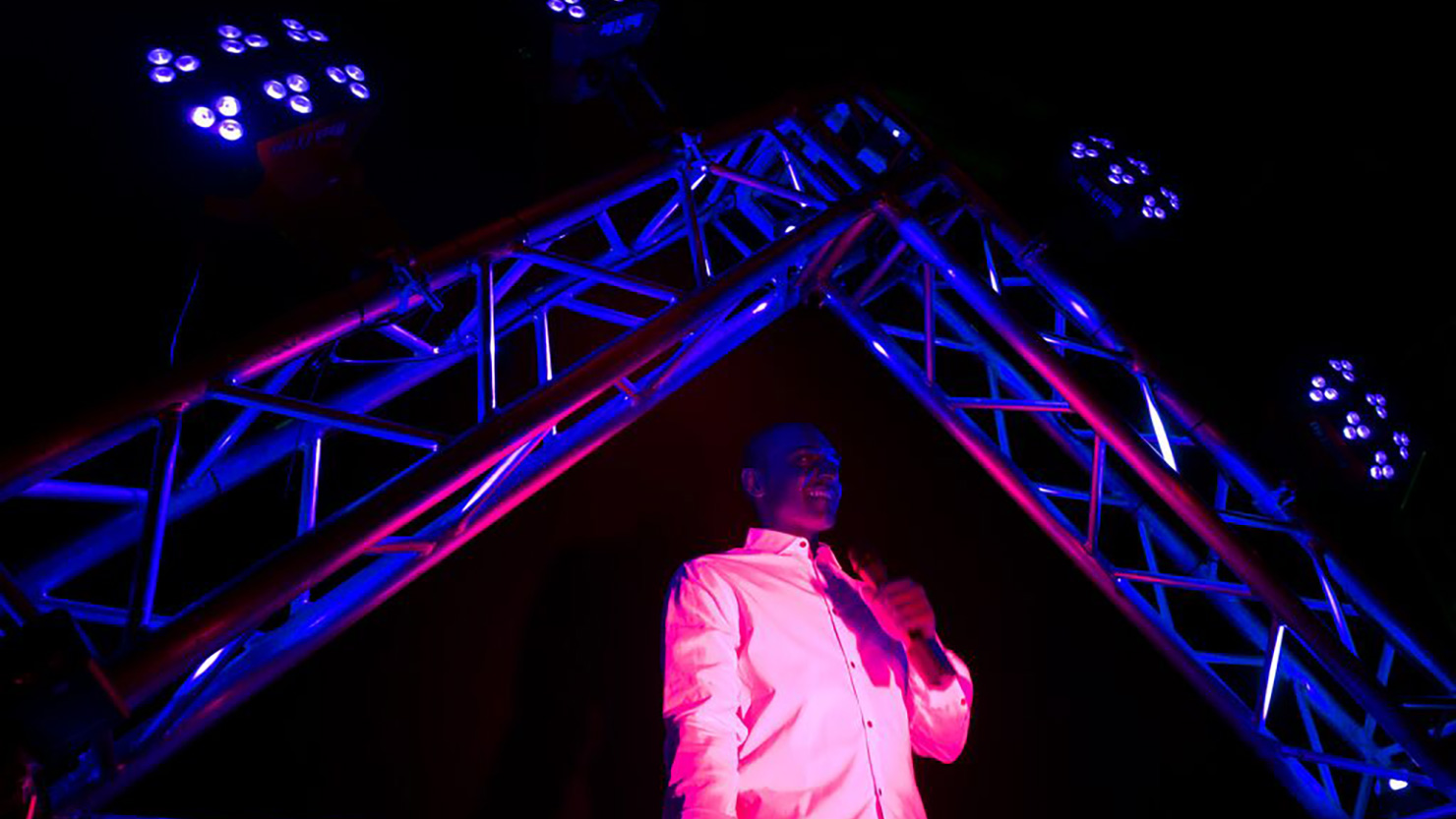

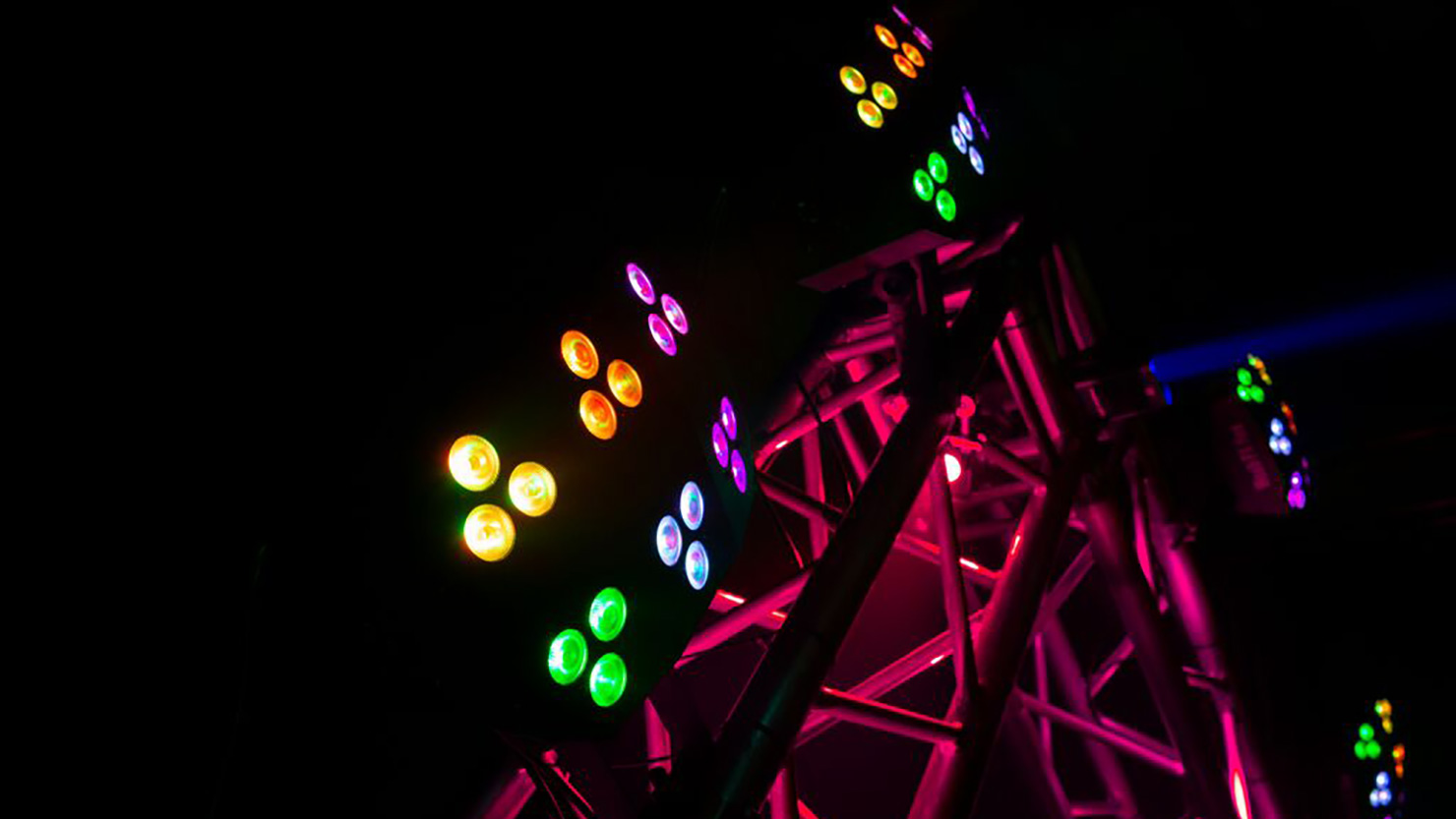

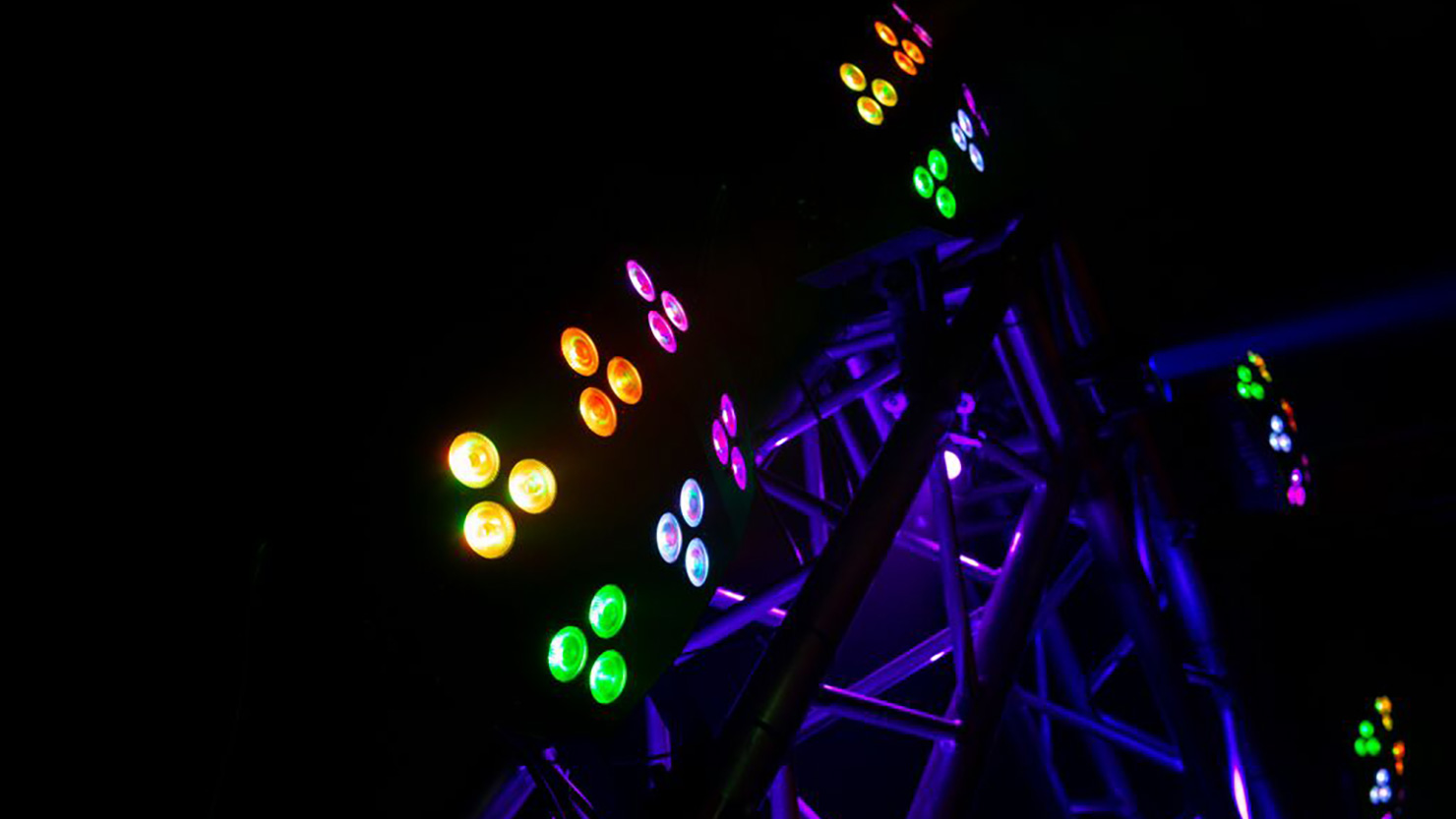

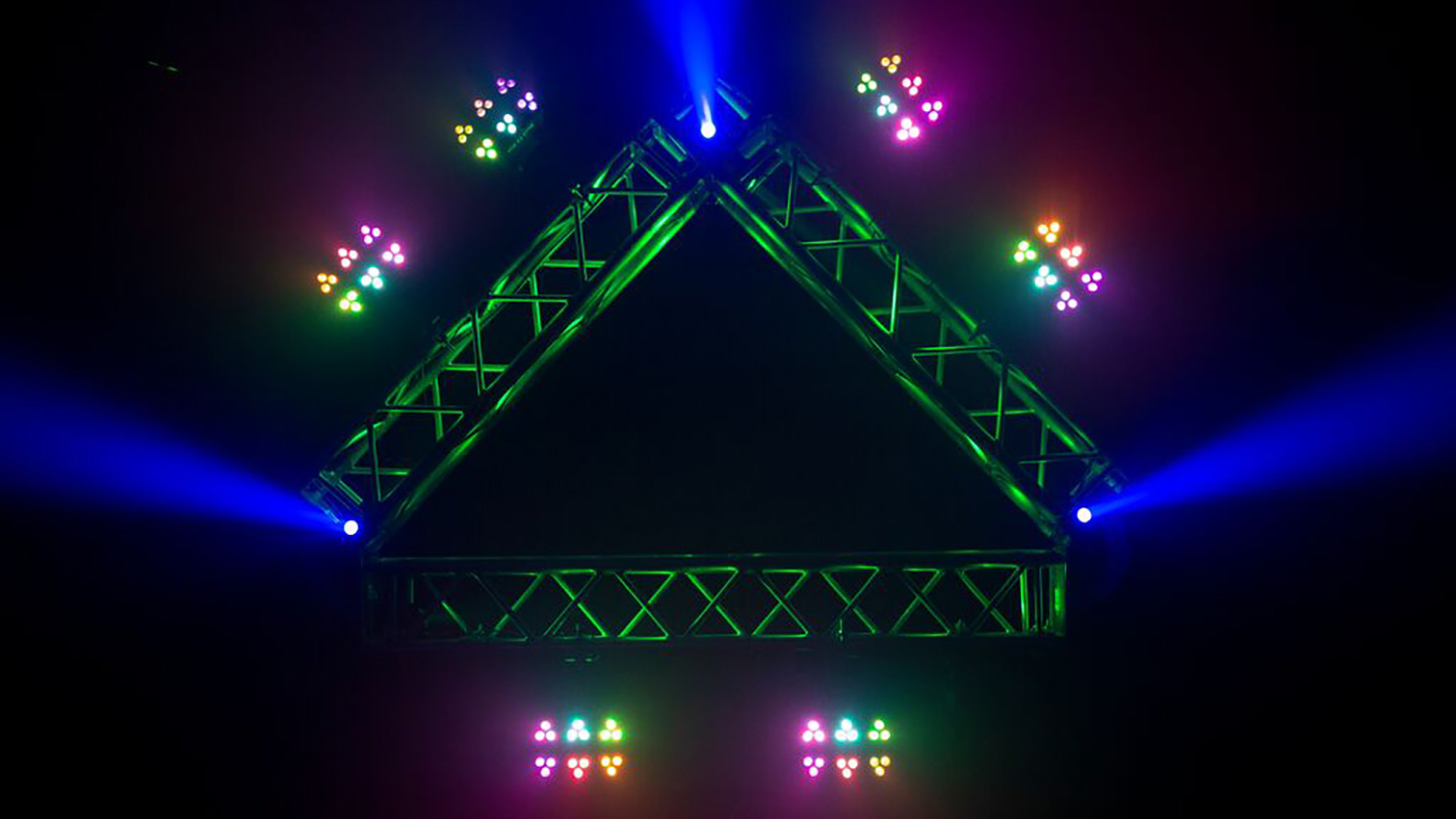

Brilliance, brightness and versatility are packed inside this powerhouse multi-purpose effect light that packs a punch with hex color (RGBAW+UV) LEDs. Wash FX Hex functions as a chase effect, blinder, or a wash light. 6 chasing zones mean Wash FX Hex can be used as a regular wash light or eye-candy effect and an advanced master/slave feature that allows you to mirror effects between units. Multiple control options include stand-alone mode, DMX, and IR as Wash FX Hex is compatible with an optional IRC-6 wireless remote for wireless triggering. Power linking saves time running cables. Fits best in the CHS-40 VIP gear bag.

VIP Rewards Value: 333 Points



Highlights

  • Multi-purpose effect light functions as chase effect, blinder, or a wash light

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with Hex color LEDs

  • Advanced master/slave feature allows you to mirror effect between units

  • Use as a regular wash light or eye-candy effect with 6 chasing zones

  • Multiple control options include stand-alone, DMX, IR, or master/slave

  • Compatible with the IRC6 wireless remote for wireless triggering

  • Power linking saves time running cables

  • Fits best in the CHS-40 VIP gear bag

Specifications

  • DMX Channels:3, 6, 11 or 40

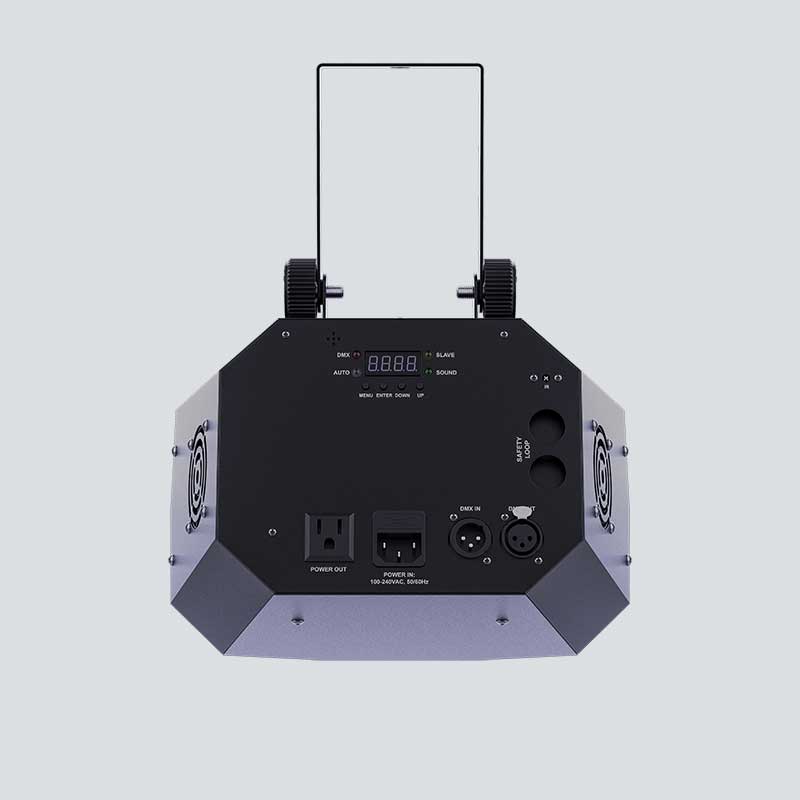

  • DMX Connectors:3-pin XLR
  • Light Source:18 LEDs (hex-color RGBAW+UV) 8 W, 2.8 A, 50,000 hours life expectancy
  • Strobe Rate:0 to 24 Hz
  • Beam Angle:41°
  • Field Angle: 68°
  • Illuminance:2,422 lux @ 2 m
  • Power Linking:3 units @ 120 V; 5 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:200 W, 2.5 A @ 120 V, 60 Hz
    194 W, 1.5 A @ 230 V, 50 Hz
  • Weight:7.0 lbs (3.2 kg)
  • Size:11.2 x 6.3 x 13 in (285 x 160x 330 mm)
  • Approvals:CE
  • Optional Controllers: IRC-6
  • Wavelength: 380 to 400 nm

What's Included

  • Wash FX Hex
  • Wash FX Hex
  • Power Cable
  • Quick Reference Guide
