Discontinued Since 2016

4BAR Flex

Next Gen Product Available

You might also like:

4Bar Flex Q ILS

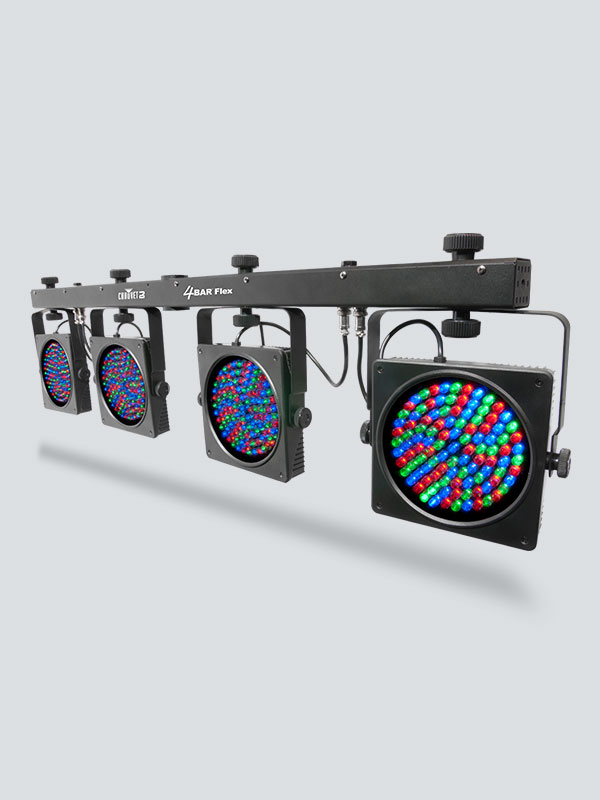

Upgraded version of the popular 4BAR, 4BAR Flex provides added flexibility and additional features including DMX capability. Two floor stands (L-brackets) are included to maximize setup possibilities and configurations. A pass-through hole easily mounts the fixture to most tripods or speaker stands without the need for additional clamps. It also features two additional power outlets and mounting options for adding additional wash or effect lights. 4BAR Flex includes a free carrying case.

VIP Rewards Value: 460 Points



Highlights

  • Upgraded version of the popular 4BAR™ increases FLEXibility

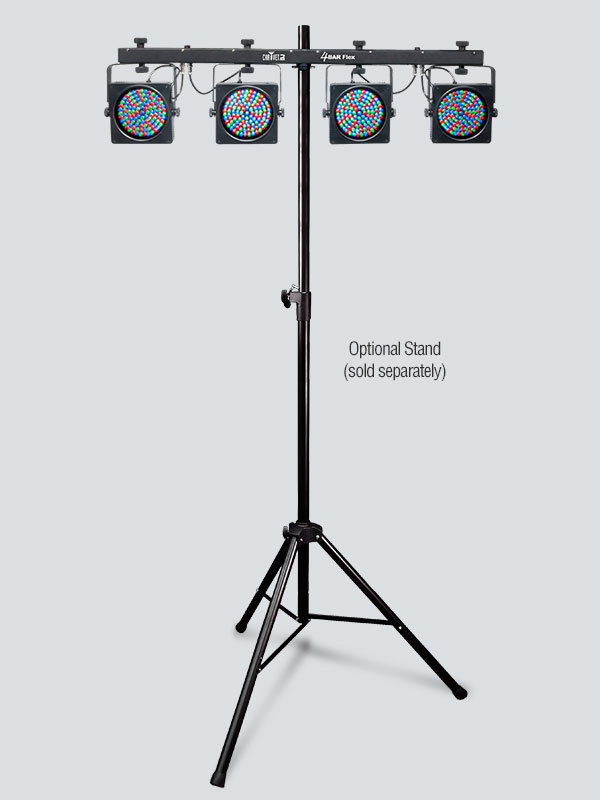

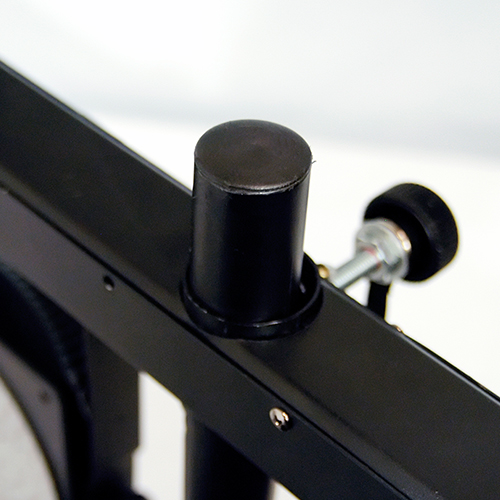

  • Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole

  • Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR™ Flex

  • Provide electricity to the additional lights by using the built-in Edison plugs

  • Maximize setup possibilities and configurations with 2 included L-brackets

  • Easily set-up and tear down in minutes with the included carrying bag

  • Multiple control options include standalone or DMX mode, or the included footswitch

  • Safely mounts to truss using built-in bolts

  • Create large, coordinated light shows with other 4BAR™ fixtures in master/slave mode

  • Sound-activated programs dance to the beat of the music

Specifications

  • DMX Channels:3 or 15
  • DMX Connectors:3-pin XLR
  • Light Source:432 LEDs (144 red, 144 green, 144 blue) 0.25 W (20 mA), 100,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • Beam Angle:21°
  • Fits Tripod Size:1.2 to 1.5 in (32 to 39) mm
  • Illuminance:725 lux @ 2 m (per pod)
  • Power Linking:12 units @ 120 V; 21 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:47 W, 0.7 A @ 120 V, 60 Hz
    46 W, 0.4 A @ 230 V, 50 Hz
  • Weight:13.5 lb (6 kg)
  • Size:47.4 x 5.2 x 14.7 in (1,205 x 133 x 375 mm)
  • Approvals:CE

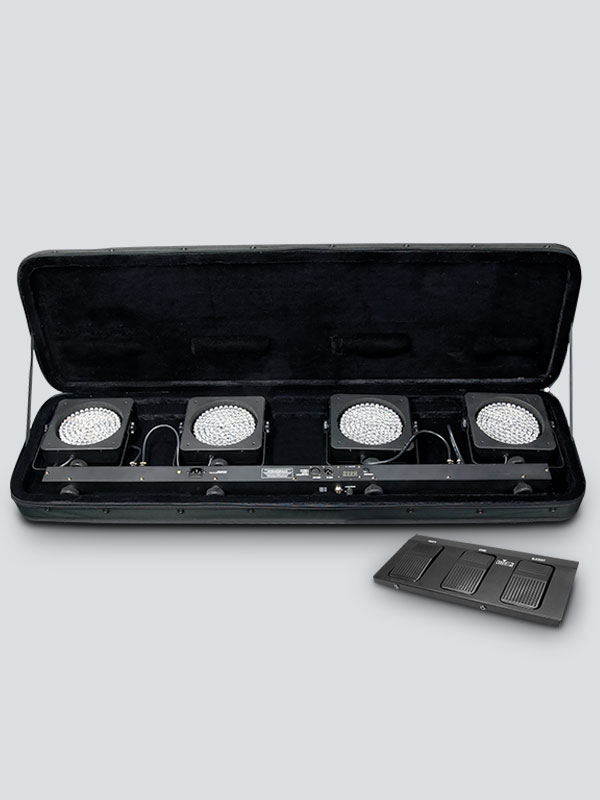

What's Included

  • 4BAR Flex
  • Power cord
  • Carrying bag
  • Footswitch
  • L-Brackets
  • Quick Reference Guide / Warranty card

Downloads
