D-Fi Hub

Submit A Review

Read Our Review

2.3 out of 5 stars (based on 3 reviews)

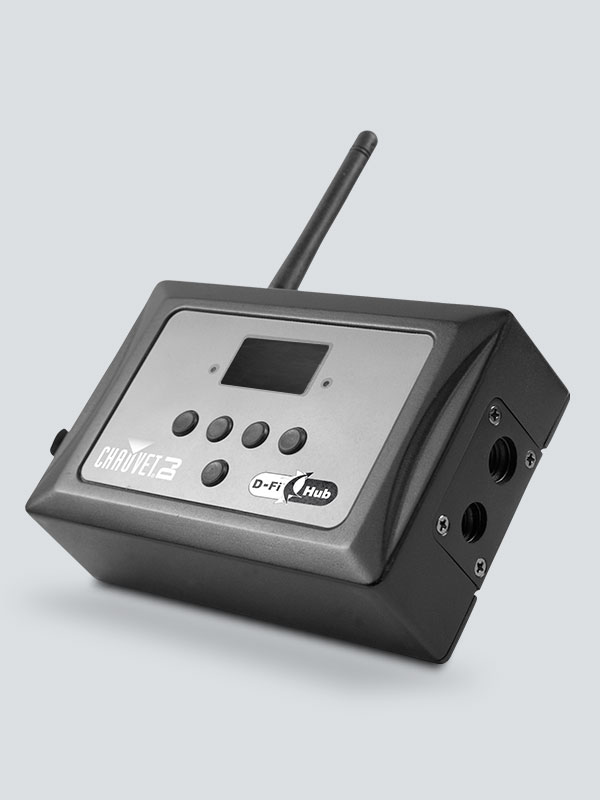

D-Fi Hub is a compact, easy-to-use DMX unit that functions as either a transmitter or receiver. For more stable communication between units, it operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency and syncs the units effortlessly. You can wirelessly synchronize an unlimited number of D-Fi-ready fixtures simultaneously, and operate them using the simple navigation on the OLED digital display.

VIP Rewards Value: 130 Points


  • Compact, easy-to-use wireless D-Fi transmitter and receiver in a single unit

  • Wirelessly synchronize an unlimited number of D-Fi-ready fixtures and receivers simultaneously

  • Built-in options include manual or automatic channel selection

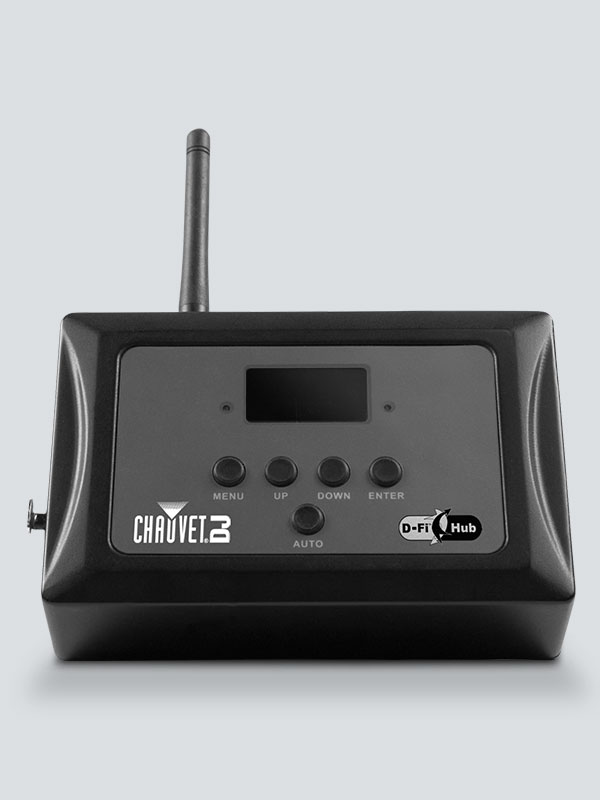

  • Simple navigation and text readout using the OLED digital display

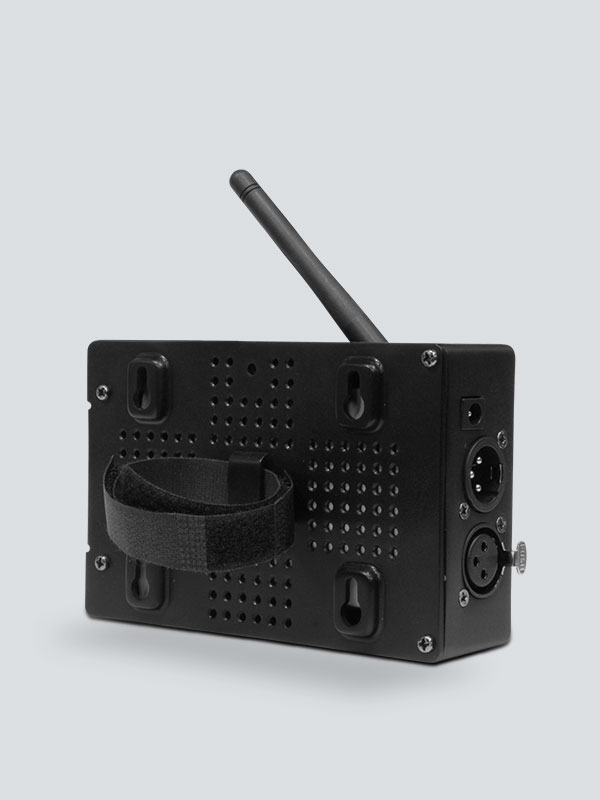

  • Mounting options include built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss

  • Fully FCC/RTTE compliant


  • DMX Connectors: 3-pin XLR
  • Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
  • Power and Current: 4 W, 0.1 A @ 120 V, 60 Hz
    4 W, 0.1 A @ 230 V, 50 Hz
  • Weight: 1.2 lb (0.6 kg)
  • Size: 5.59 x 3.58 x 1.81 in (142 x 91 x 46 mm)
  • Approvals: CE, FCC
  • Max Unobstructed Distance:: 656 ft (200 m)

What's Included

  • D-Fi Hub


Read Our Review

2.3 out of 5 stars (based on 3 reviews)

Chauvet D-fi hUb not recommenDed

January 22, 2020

I have highly dissapointyed in this proDuct, i have CONTINUOUS problems with my 3 units dropping oUt in the middle of shows, they work one MINUTE and Decide to Lose connection the next. I sold my Adj wifly to buy the ao called better product, but i am oH so sorry for making the move.

Craig Bokelmann

Used for many years, still works

December 2, 2019

I work for a sound and lighting company. as the head lighting director, I can say these things came in clutch when running long cable fades your signal. They work as they’re supposed to, so long as you know what you’re doing. going on 5 years with my 6 hubs. all work great still.


D-FI hub does not connect with lights after a month of use

November 8, 2019

I purchased the chauvet DJ d-fi hub for the benefit of not having to run cables. the unit worked for APPROXIMATELY 1 month and now will not connect. I have now had to spend money and run cables. There is no online troubleshooting and Chauvet has been no help.
