Discontinued Since 2023

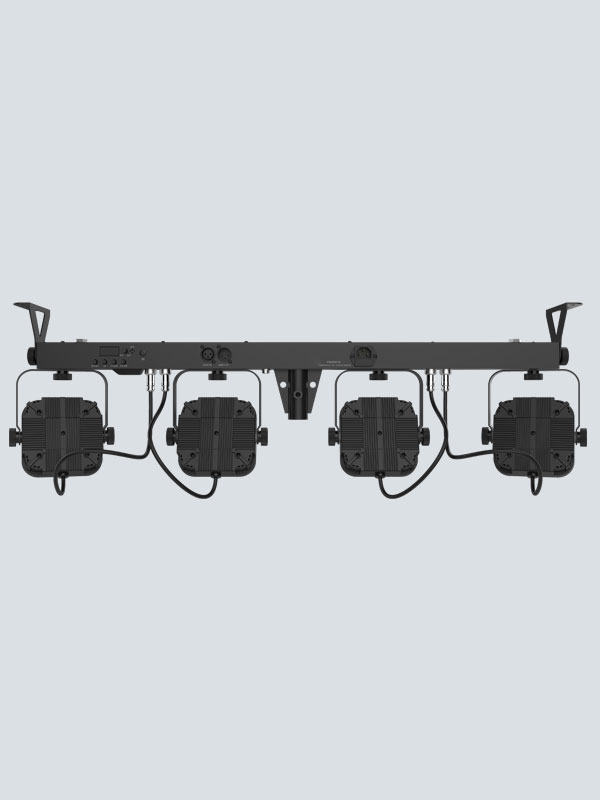

4BAR LT QuadBT

The rich, warm color-mixing power of amber LEDs comes to one of the most convenient pack-n-go wash lighting systems anywhere. This quad-color (RGBA) fixture comes equipped with built-in Bluetooth® wireless technology so you can light easier right from your phone or tablet with the BTAir app (patent pending). This complete wash lighting solution has 4 individually adjustable heads to achieve total room or stage coverage. Easily set up and tear down in seconds with the included tripod, carry bags and footswitch.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Chauvet & Sons, LLC is under license. Other trademarks and trade names are those of their respective owners.

Highlights

  • Complete wash lighting solution with built-in Bluetooth® wireless technology

  • Control directly from a smart phone or tablet without any additional hardware

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

  • Easily set up and tear down in seconds with the included tripod, carry bags and footswitch

  • Create large, coordinated light shows with other 4BAR fixtures in master/slave mode

  • Achieve total room or stage coverage with 4 individually adjustable heads

  • Easily control static colors and automated programs with the optional IRC-6 remote

  • Sound-activated programs dance to the beat of the music

Specifications

  • DMX Channels:4, 6 or 19
  • DMX Connectors:3-pin XLR
  • Max Unobstructed Distance:150 ft (25.7 m)
  • Light Source:12 LEDs (quad-color RGBA) 4 W, (2 A), 50,000 hours life expectancy
  • PWM Frequency:1.31 kHz
  • Beam Angle:12°
  • Field Angle:21°
  • Operating Frequency:2.4 GHz
  • Fits Tripod Size:1 in (25.4 mm)
  • Illuminance:2,162 lux @ 2 m (per pod)
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:46 W, 0.6 A @ 120 V, 60 Hz
    44 W, 0.3 A @ 230 V, 50 Hz
  • Weight:7.2 lb (3.3 kg)
  • Size:36.1 x 3.7 x 10.8 in (918.1 x 95 x 274.3 mm)
  • Approvals:CE, FCC
  • Stand Height: 50-83 in (127-211 cm)
  • Optional Controllers: IRC-6, BTAir
  • Bluetooth Version: 4.2

What's Included

  • 4BAR LT QuadBT
  • 4BAR LT QuadBT
  • Power cord
  • Carrying bag
  • Tripod
  • Footswitch
  • L- bracket
