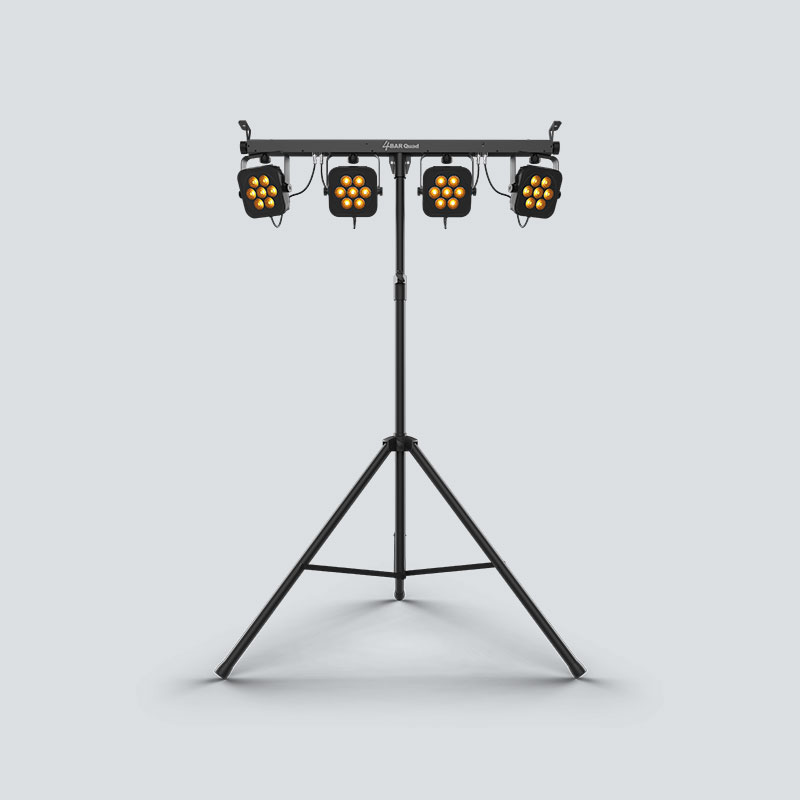

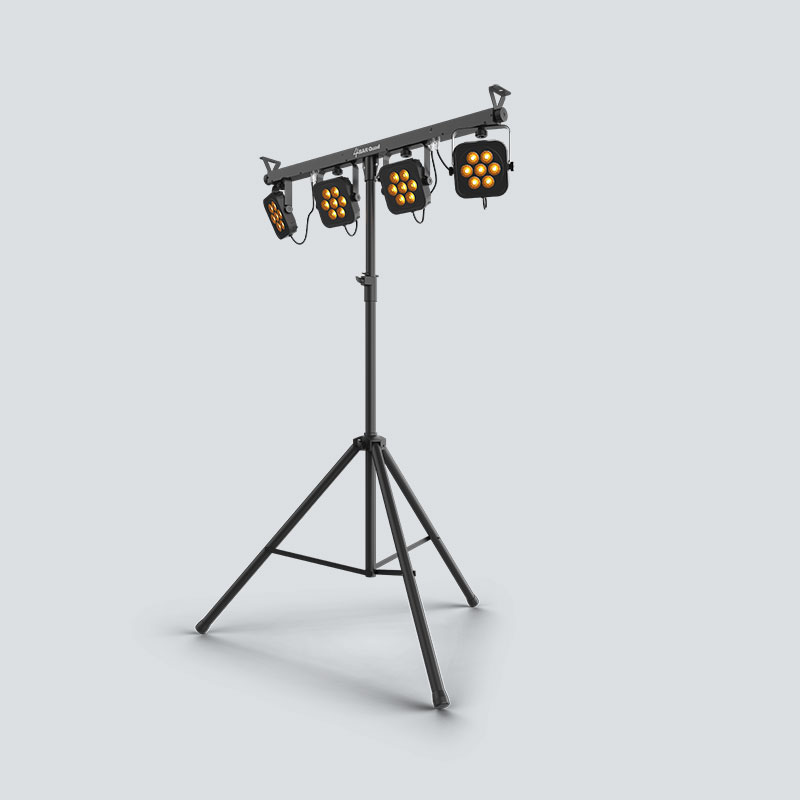

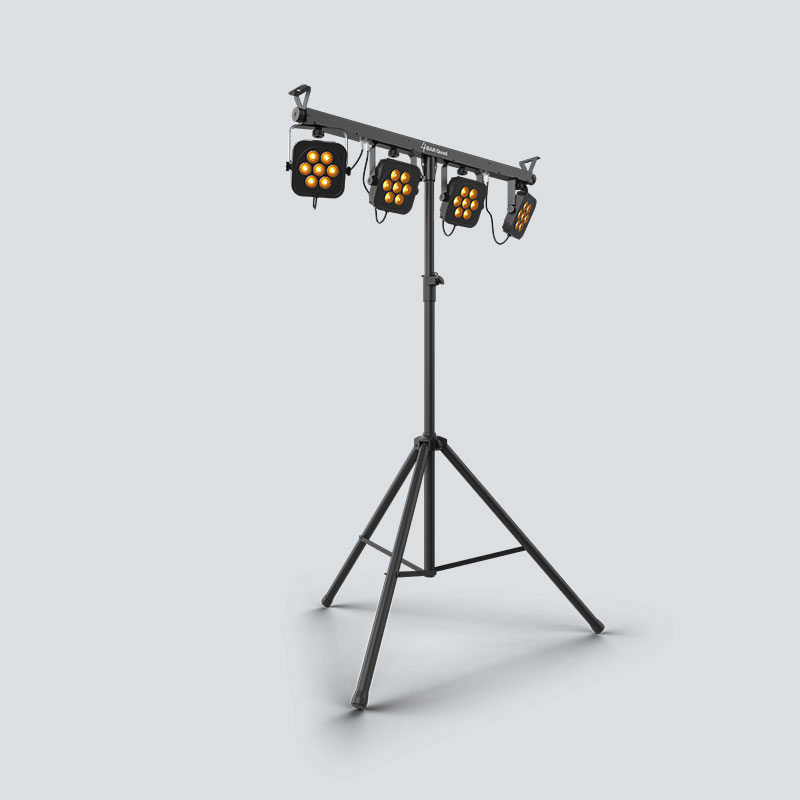

4BAR Quad is a complete wash lighting solution fitted with high-intensity quad-color (RGBA) LEDs that can be controlled wirelessly out of the box via the included footswitch or optional IRC-6 controller. Generate natural, warm color temperatures with punchy amber and achieve total area coverage by individually positioning the 4 adjustable pods. 4BAR Quad is compatible with D-Fi USB for wireless Master/Slave or DMX programming. A convenient tripod and carry bag are included for effortless setup and quick tear down. 4BAR Quad safely attaches to truss with built-in bolts, easily increasing mounting options.

Highlights

  • Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

  • Out of the box wireless control with included footswitch or optional IRC-6 controller

  • Easily set up and tear down in minutes with the included tripod stand and carrying bags

  • D-Fi™ USB compatibility for wireless Master/Slave or DMX control

  • Achieve total room or stage coverage with 4 individually adjustable heads

  • Increase mounting options by safely mounting to truss using built-in bolts

Specifications

  • DMX Channels: 4, 6 or 19
  • DMX Connectors: 3-pin XLR
  • Max Unobstructed Distance: (foot switch): 100 ft (30.5 m)
  • Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • PWM Frequency: 1310 Hz
  • Beam Angle: 14°
  • Field Angle: 23°
  • Operating Frequency: (D-Fi): 2.412 to 2.484 GHz
    (foot switch): 433 MHz
  • Fits Tripod Size: 1.5 in (36.80 mm)
  • Illuminance: 2,353 lux @ 2 m (per pod)
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 80 W, 1.2 A @ 120 V, 60 Hz
    78 W, 0.6 A @ 230 V, 50 Hz
  • Weight: 12.2 lb (5.5 kg)
    (Controller): 1.2 lb (0.6 kg)
  • Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
    (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
  • Approvals: CE, FCC
  • Footswitch battery: 9 V
  • Stand Height: 7 ft 4 in (2.2 m)
  • Bracket Mounting Hole: M10 (1.5 mm pitch)
  • Optional Controllers: IRC-6, D-Fi USB

What's Included

  • 4BAR Quad
  • 4Bar Quad
  • Power cord
  • Carrying bag
  • Tripod
  • Tripod Carry bag
  • Wireless Footswitch
  • Quick Reference Guide
