COLORrail IRC

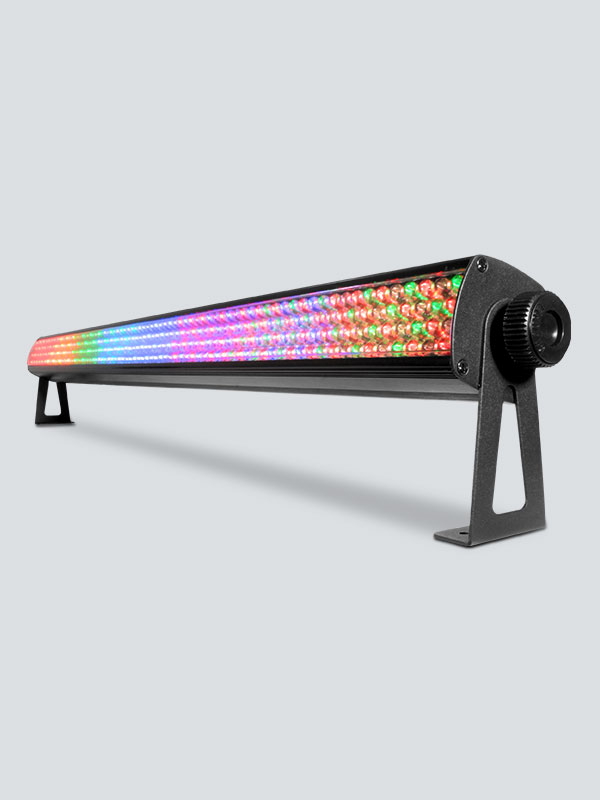

COLORrail IRC is a linear wash and effect light fitted with 320 LEDs (128 red, 96 green, 96 blue) and featuring built-in, infrared technology. Create your own looks with eight sections of DMX control, or generate eye-catching chase and runway effects with built-in, automated and sound-activated programs. Thanks to tightly packed and evenly distributed LEDs, color mixing and wall washing occur almost immediately. For wireless (non-DMX) control, use the COLORrail IRC with the optional IRC (Infrared Remote Control).
26nominee-300x117

Highlights

  • Eye-catching, multicolored strip light designed for mobile entertainment applications

  • Wireless, non-DMX operation is available with the optional IRC-6 remote

  • Create dazzling effects with 8 sections of individual control

  • Save time running cables and extension cords by power linking multiple units

  • Generate endless effects with built-in, automated programs

  • Sound-activated programs dances and chase to the beat of the music

  • Easily transports in the optional CHS-60 VIP Gear Bag

  • Combine multiple units together with CBB-6 mounting bracket

Specifications

  • DMX Channels: 2, 3, 4, 7, 14 or 26
  • DMX Connectors: 3-pin XLR
  • Light Source: 320 LEDs (128 red, 96 green, 96 blue) 0.25 W (20 mA), 100,000 hours life expectancy
  • Beam Angle: 28° x 12°
  • Illuminance: 1,140 lux @ 2 m
  • Power Linking: 17 units @ 120 V; 32 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 57 W, 0.5 A @ 120 V, 60 Hz
    58 W, 0.3 A @ 230 V, 50 Hz
  • Weight: 6.3 lb (2.8 kg)
  • Dimensions: 43.5 x 3 x 6 in (1,062 x 88 x 90 mm)
  • Approvals: CE
  • Optional Controllers: IRC-6

What's Included

  • COLORrail IRC
  • Power cord
  • Warranty card
  • Quick Reference Guide
