Discontinued Since 2016

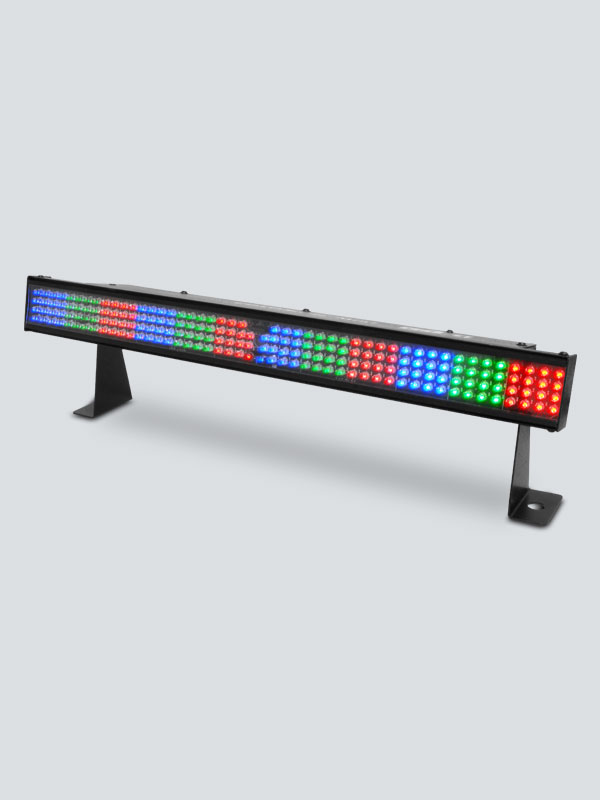

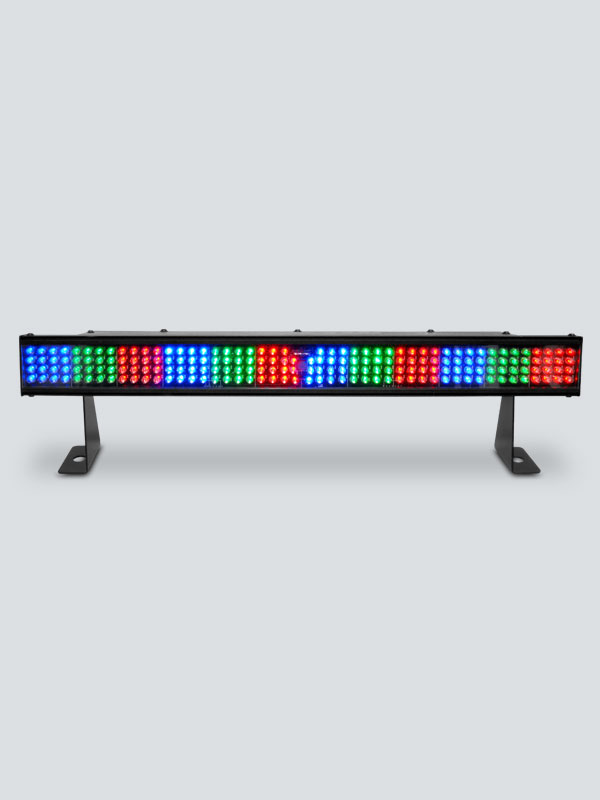

COLORstrip Mini FX

COLORstrip Mini FX is a compact, linear wash light with built-in laser effects, perfect for uplighting applications or mesmerizing effects. Built-in, dynamic laser patterns are variance free and ready to use right out of the box. Combine multiple units together for unique runway effects, or pair it with other COLORstrip fixtures for large coordinated light shows. Use the included wireless IR remote for separate color and program control. Save time by power-linking multiple units and safely transport COLORstrip Mini FX in the optional CHS-60 VIP Gear Bag.

Highlights

  • Compact, linear wash light with built-in laser effects perfect for up-lighting applications or mesmerizing eye-candy effects

  • Create large, coordinated light shows with other COLORstrip™ Mini or COLORstrip™ fixtures in Master/Slave mode

  • Generate unique runway effects by connecting multiple units together

  • Wireless operation allows for separate color and program control using the included IR remote

  • Eye-catching, variance-free laser patterns ready to use right out of the box

  • Save time running cables and extension cords by power-linking multiple units

  • Fits best in the CHS-60 VIP Gear Bag

Specifications

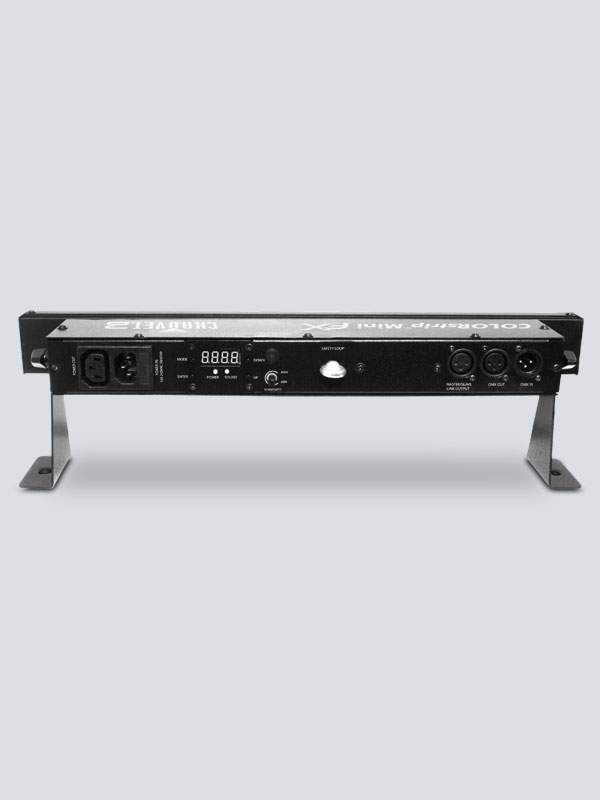

  • DMX Channels: 4 or 7
  • DMX Connectors: 3-pin XLR
  • Light Source: 190 LEDs (63 red, 64 green, 63 blue) 0.25 W (20 mA), 100,000 hours life expectancy
    532 nm/50 mW (green) laser diode, 650 nm/100 mW (red) laser diode
  • Beam Angle: 22°
  • Field Angle: 38°
  • Coverage Angle: (laser): 100°
  • Illuminance: 444 lux @ 2 m
  • Power Linking: 20 units @ 120 V; 38 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 28 W, 0.4 A @ 120 V, 60 Hz
    26 W, 0.2 A @ 230 V, 50 Hz
  • Weight: 4.2 lb (2 kg)
  • Dimensions: 19 x 2.4 x 6.6 in (482 x 60 x 169 mm)
  • Approvals: CE, FDA
  • Included Controllers: IR

What's Included

  • COLORstrip Mini FX
  • Power cord
  • IR remote
  • Hanging bracket with mounting hardware
  • Warranty card
