Discontinued Since 2017

Core 3×1

Core 3×1 combines a pixel-mapping effect and a powerful linear wash light into one unique, multipurpose fixture. Powered by three RGB LEDs with chip-on-board (COB) technology, it utilizes a unique reflector cup to produce large pixels of light and create intriguing sweeping and runway chase effects that become the core of your lighting display.

Highlights

  • Compact, tri-color LED strip light designed for use as a pixel-mapping effect, blinder or wash light

  • Easily trigger built-in automatic and sound activated programs for a stunning show in seconds

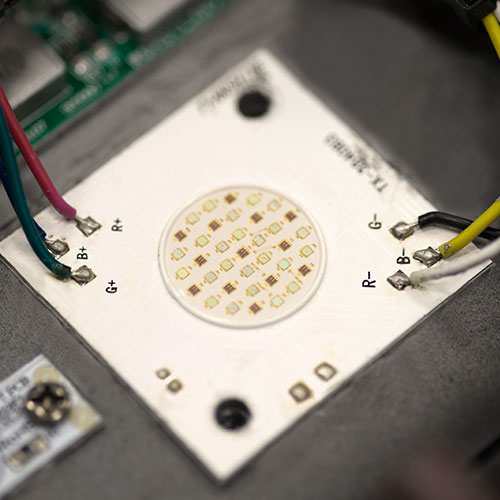

  • Produce a full spectrum of light with excellent color mixing using COB technology

  • Create animations and video effects with individual LED control

  • Completely silent operation

  • Withstand the harshness of traveling from gig to gig with a robust housing

  • Generate complex looks with ease using ShowXpress™ Pixels

  • Achieve flicker-free video operation with high-frequency LED dimming

  • Save time running cables and extension cords by power linking multiple units

  • Sound-activated programs dance to the beat of the music

  • Generate a synchronized show in master/slave mode with easy access to built-in automated programs

Specifications

  • DMX Channels: 3, 5, 9, 10 or 13
  • DMX Connectors: 3-pin XLR
  • Light Source: 3 LEDs (tri-color RGB) 9 W (1.5 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • PWM Frequency: 1.1 KHz
  • Beam Angle: 47°
  • Illuminance: 340 lux @ 2 m
  • Power Linking: 10 units @ 120 V; 21 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 79 W, 0.6 A @ 120 V, 60 Hz
    79 W, 0.3 A @ 230 V, 50 Hz
  • Weight: 8.2 lb (3.7 kg)
  • Size: 8.7 x 13.7 x 4.6 in (222 x 347 x 116 mm)
  • Approvals: CE

What's Included

  • Core 3×1
  • Power cord
  • Hanging bracket with mounting hardware
  • Quick Reference Guide
  • Warranty card
