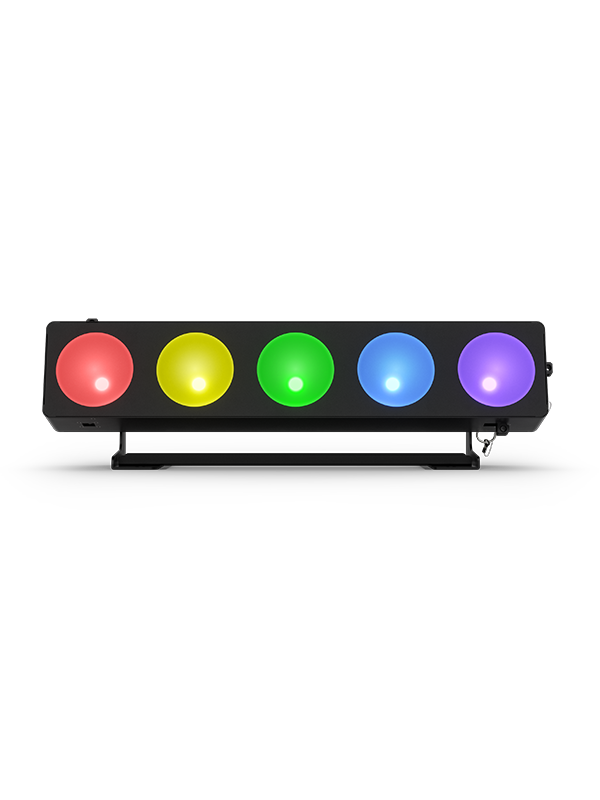

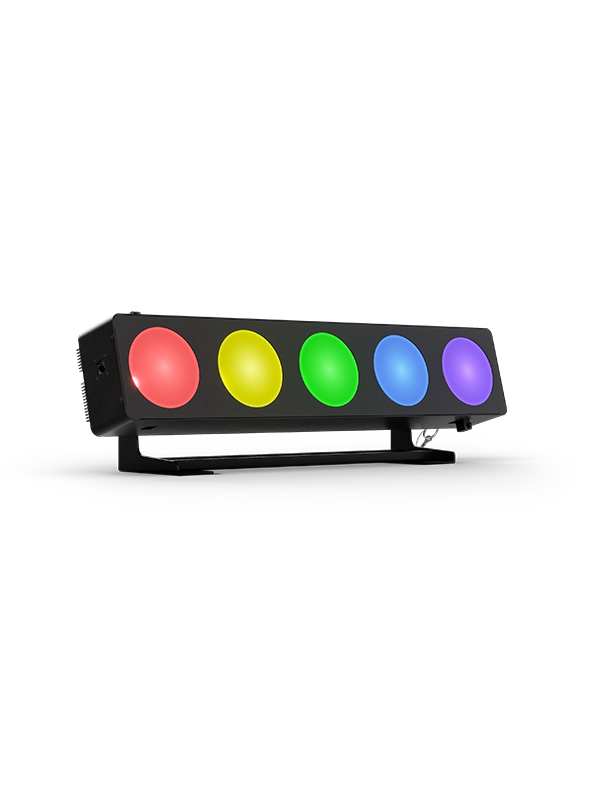

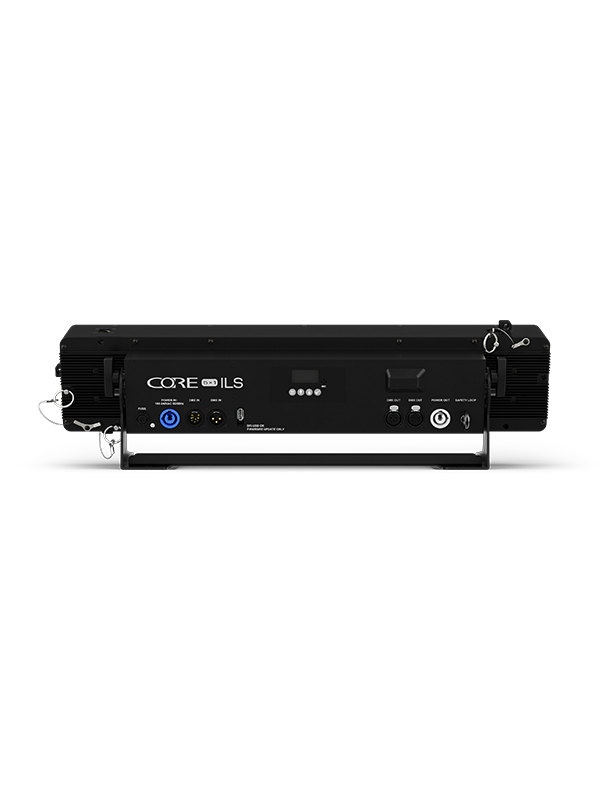

Core 5X1 ILS
Core 5×1 ILS projects smoothly saturated color with COB technology and a large reflector design ideal for bringing the most natural color tones to live setups. Create custom shapes with built-in tool-free connecting hardware. Add a D-Fi™ USB (sold separately) to wirelessly sync Core 5×1 ILS with multiple ILS fixtures of different types. Floor mount for a perfect uplight or attach multiple fixtures together for high-impact pixel-mapped looks, runway chase effects, blinder bursts or color washes.
Highlights
Multi-purpose effect light functions as a pixel-mapping effect, chase effect, blinder, or wash light.
Attach multiple fixtures together using the built-in, toolless connecting hardware
ILS compatibility for use in the ILS ecosystem (D-Fi™ USB sold separately)
Connect up to 6 fixtures together vertically using the toolless linking hardware
Generates a broad spectrum of colors and achieves natural-looking color temperatures with COB technology
Withstand the harshness of traveling from gig to gig with a robust housing
Offers multiple control options, including stand-alone, DMX, ILS, RF, or master/slave
Specifications
- DMX Channels:4, 8, or 22
- DMX Connectors:3- and 5-pin XLR
- Light Source:5 LEDs (quad-color RGB+WW) 35W, (1.2A) 50,000 hours life expectancy
- Strobe Rate:0 to 20 Hz
- Beam Angle:54°
- Field Angle:75°
- Illuminance:953 lux @ 2 m
- Lumens:2,875
- Power Linking:6 units @ 120 V; 10 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:120 W, 1.8 A @ 120 V, 60 Hz
- Weight:11 lbs (5 kg)
- Size:23.6 x 3.1 x 4.7 in (600 x 79 x 120 mm)
- Approvals:CE, RoHS
- Cable Length: 5 ft (1.52 m)
- Bracket Mounting Hole: 13 mm
- Optional Controllers: ILS Command, RFC, RFC-XL
What's Included
- Core 5X1 ILS
- CORE 5X1 ILS
- Power cord
- Quick Reference Guide
