Data Stream 8

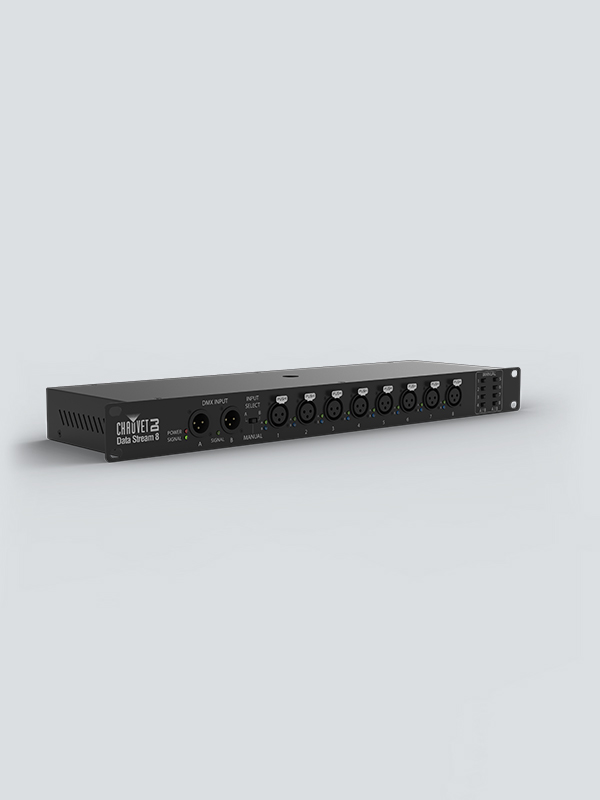

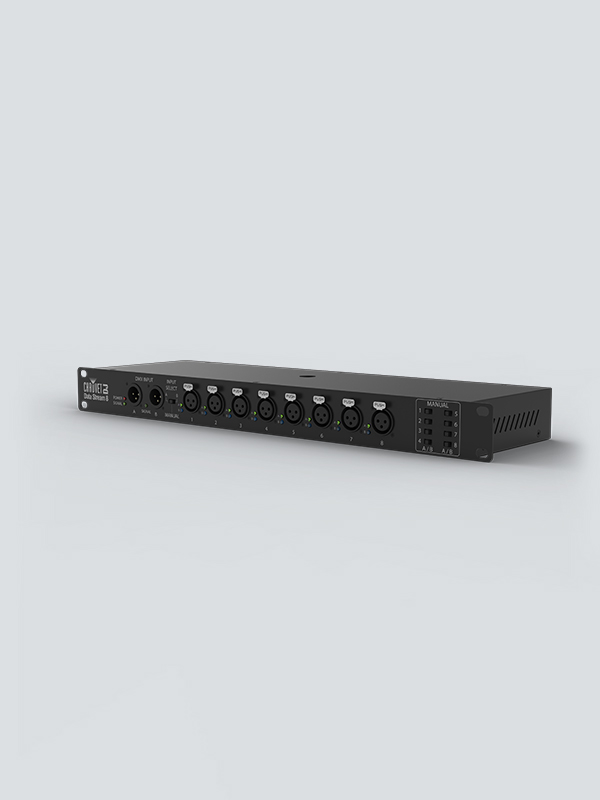

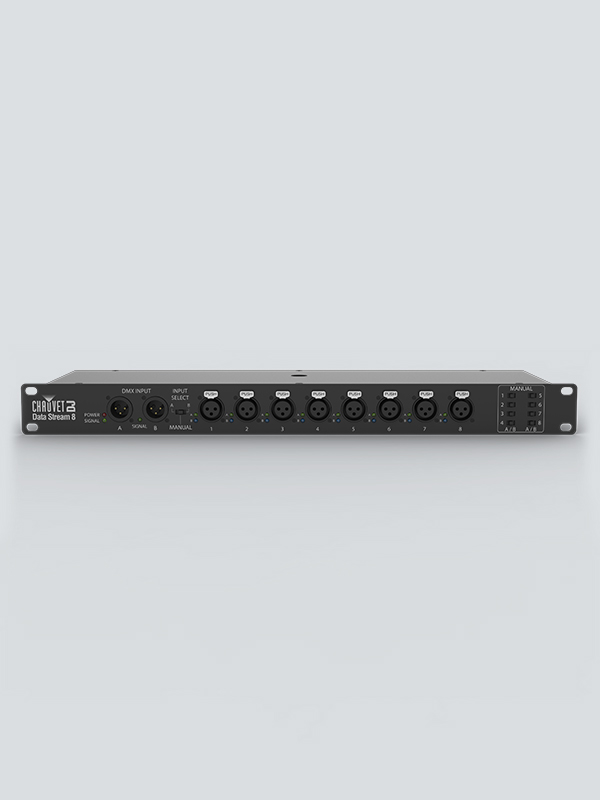

Data Stream 8 is a flexible DMX splitter designed to distribute and boost incoming DMX signals from dual inputs into 8 separate outputs via a master 3-position switch. Each input can be used simultaneously and sent to any output. Individual 2-position switches can also send data from either the A or B input separately. Each of the outputs is optically isolated from the others providing protection in the event of a short. A threaded insert allows the unit to be safely secured to trussing.

Highlights

  • Flexible DMX splitter provides up to 8 outputs from dual inputs

  • Each input can be used simultaneously and sent to any output

  • Master 3-position switch quickly sends A or B input to all 8 outputs

  • Individual 2-position switches send data from either the A or B input

  • Optically isolated outputs provide protection in the event of a short

  • Threaded insert safely secures to overhead truss

Specifications

  • DMX Connectors: 3-pin XLR
  • Rackmount: 1U
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 2 W, 0.04 A @ 120 V, 60 Hz
    2 W, 0.03 A @ 230 V, 50 Hz
  • Weight: 4.6 lbs (2.1 kg)
  • Size: 19 x 5.2 x 1.7 in (483 x 132 x 44 mm)
  • Approvals: CE

What's Included

  • Data Stream 8
  • Data Stream 8
  • Power cord
  • Warranty card
  • Quick Reference Guide
