New

DMX-RT

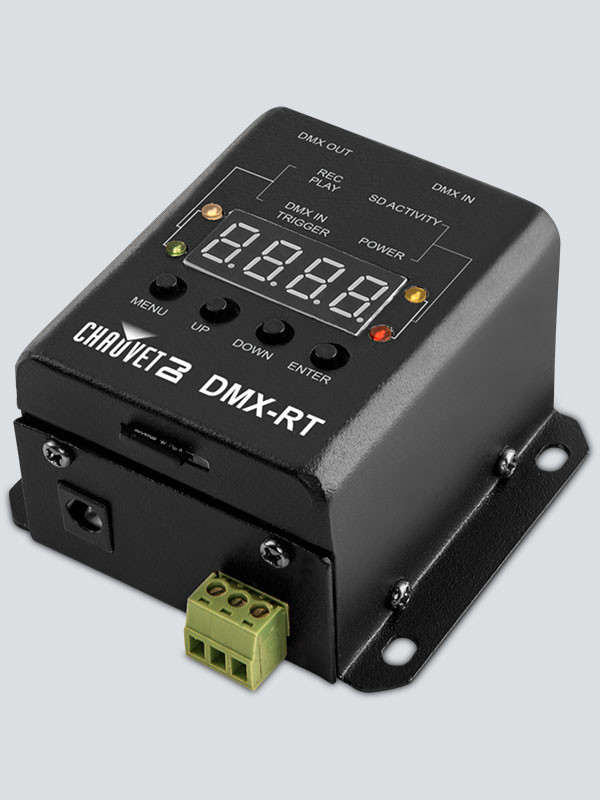

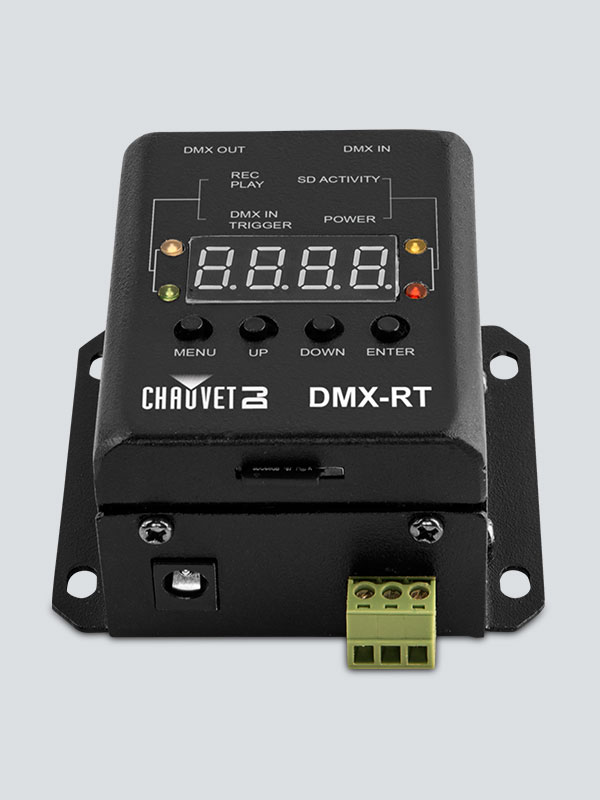

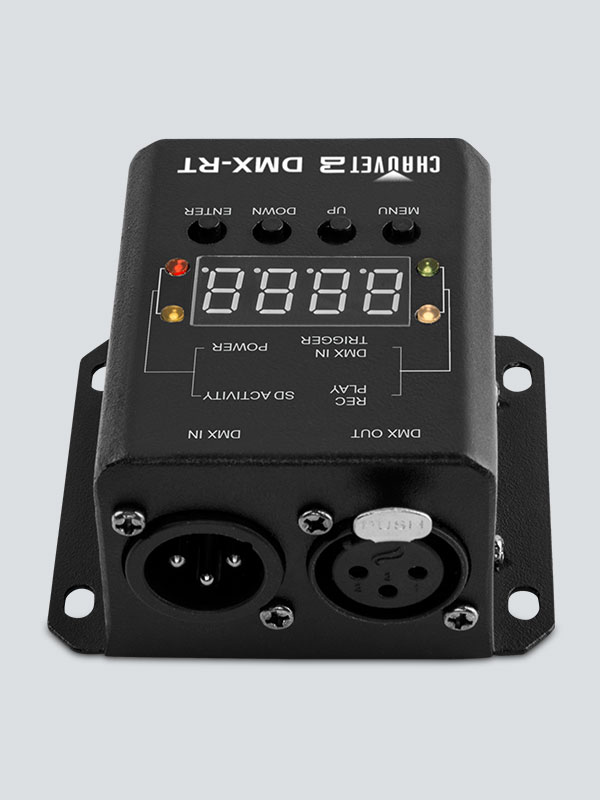

DMX-RT is a rugged and compact DMX recording device with triggerable playback. Copy, backup and transfer show files with a built-in micro SD card slot and included micro SD card. The unit comes with a mounting bracket for convenient mounting options. The digital display is easy to navigate and lets you easily trigger scenes.

Highlights

  • Rugged and compact DMX recording device with triggerable playback

  • Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors

  • Easily navigate and trigger scene using the digital display

  • Copy, backup and transfer show files with a built-in micro SD card slot and included micro SD card

  • Integrated mounting bracket to quickly install into any location.

  • Supplies DC voltage through terminal block to power specific triggers

Specifications

  • DMX Connectors: 3-pin XLR
  • Input Voltage: 12 VDC, 1 A (external power supply: 100-240 VAC, 50/60 Hz)
  • Power and Current: 1 W, 0.03 A @ 120 V, 60 Hz
    1 W, 0.03 A @ 230 V, 50 Hz
  • Weight: .4 lb (0.2 kg)
  • Size: 3 x 2.9 x 1.7 in (77 x 73 x 43 mm)
  • Approvals: CE
  • Programmable Scenes: 999
  • Trigger Type: N/O or N/C
  • Terminal Block output: 12 VDC, 100 mA
  • Memory Card: 8GB (included) 32GB (max) Micro SD
    Format: FAT32

What's Included

  • DMX-RT
  • Power adapter
  • Warranty card
  • Quick Reference Guide
