Discontinued Since 2014

Double DerbyX

Similar Product Available

You might also like:

Mini Kinta ILS

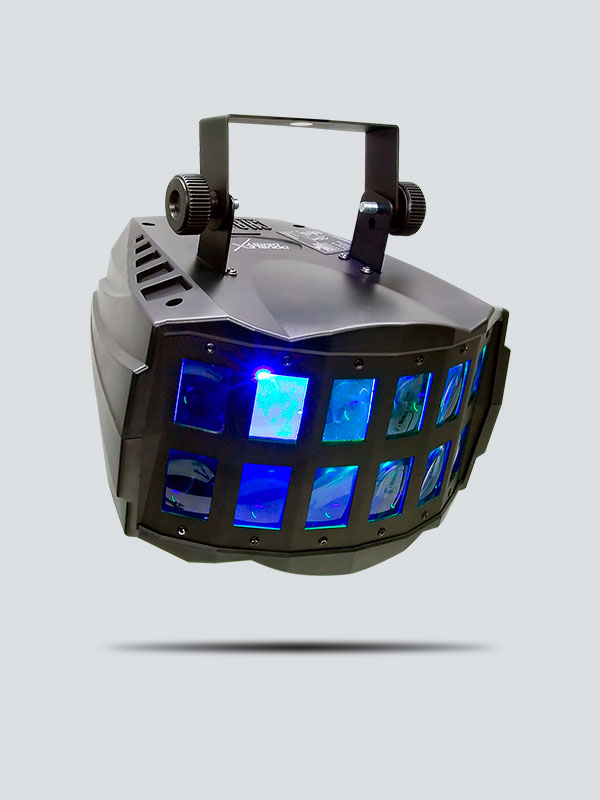

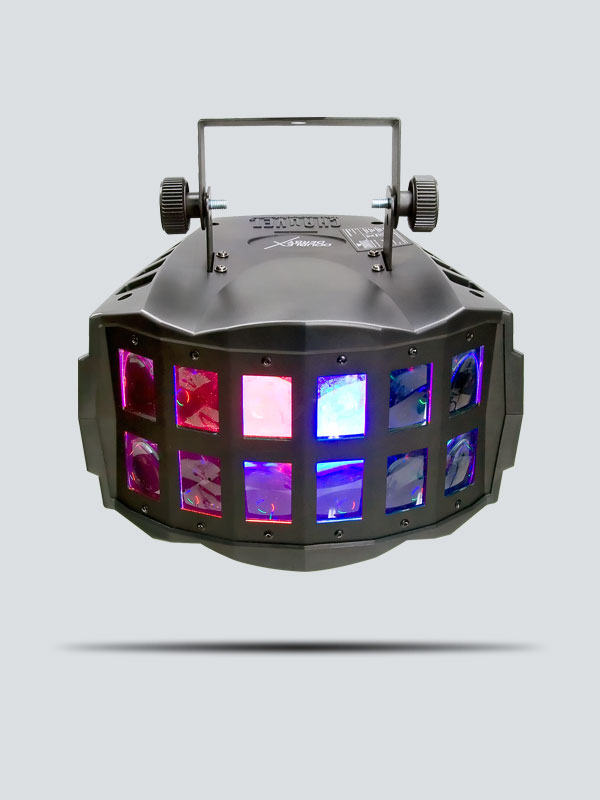

Fitted with three high- power LEDs, the Double Derby X updates the classic derby effect and is smaller and lighter than its predecessor, easing transportation, installation, stowing and use. It is linkable with other fixtures in the X series that share the X Bracket, plus the LED Mushroom. Pre-programmed and sound-activated via DMX.


  • LED derby effect light fills even the largest room with vivid beams

  • Alternate effects with continuous rotation or back and forth motor control

  • Activate built-in, automated and sound-activated programs in master/slave or DMX mode (rotation only)

  • Create coordinated light shows by linking other LED Mushroom and Kinta X fixtures in master/slave mode

  • Combine multiple units together using the included, adjustable X bracket

  • Fits best in the CHS-40 VIP Gear Bag


  • DMX Channels:2
  • DMX Connectors:3-pin XLR
  • Light Source:3 LEDs (1 red, 1 green, 1 blue) 3 W (730 mA), 50,000 hours life expectancy
  • Coverage Angle:132°
  • Power Linking:37 units @ 120 V, 75 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:24 W, 0.2 A @ 120 V, 60 Hz
    11 W, 0.1 A @ 230 V, 50 Hz
  • Weight:6 lb (2.7 kg)
  • Size:11.1 x 11.7 x 10.4 in (283 x 297 x 264 mm)
  • Approvals:CE

What's Included

  • Double DerbyX
