Discontinued Since 2023

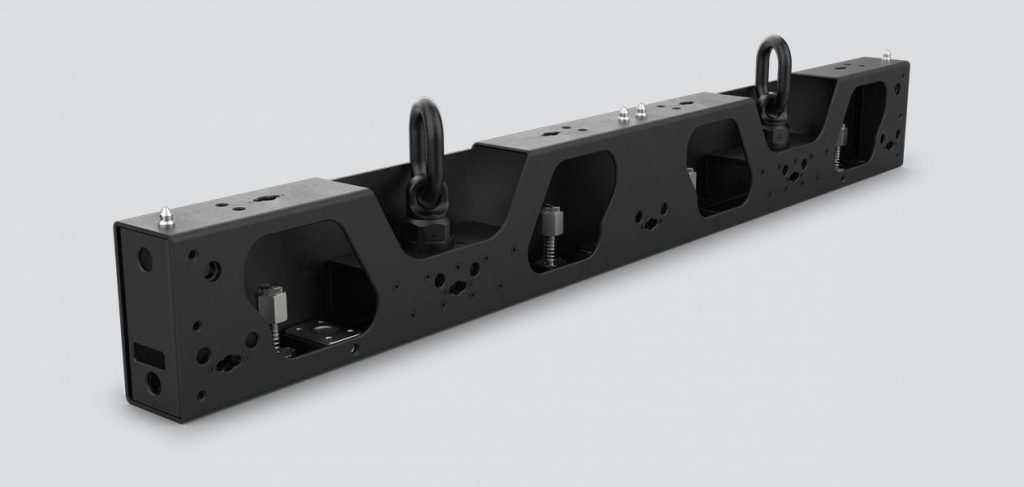

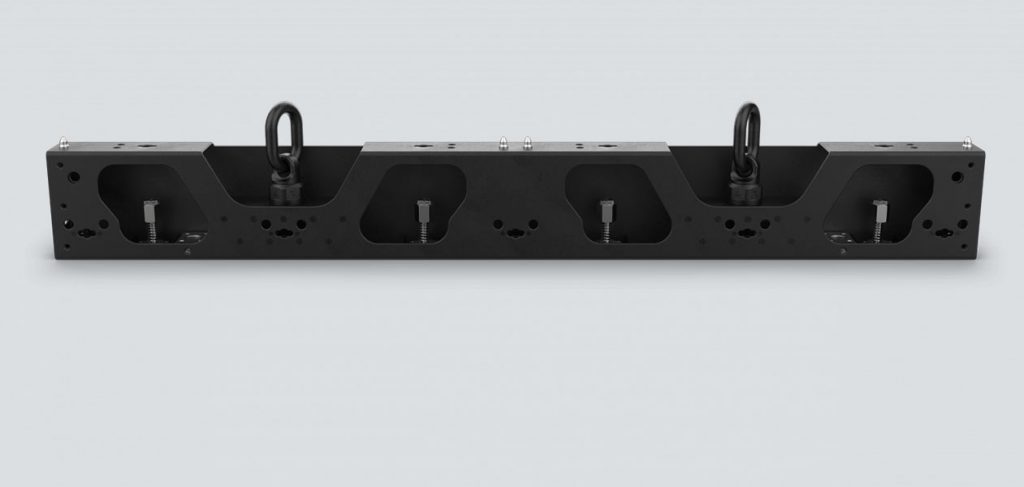

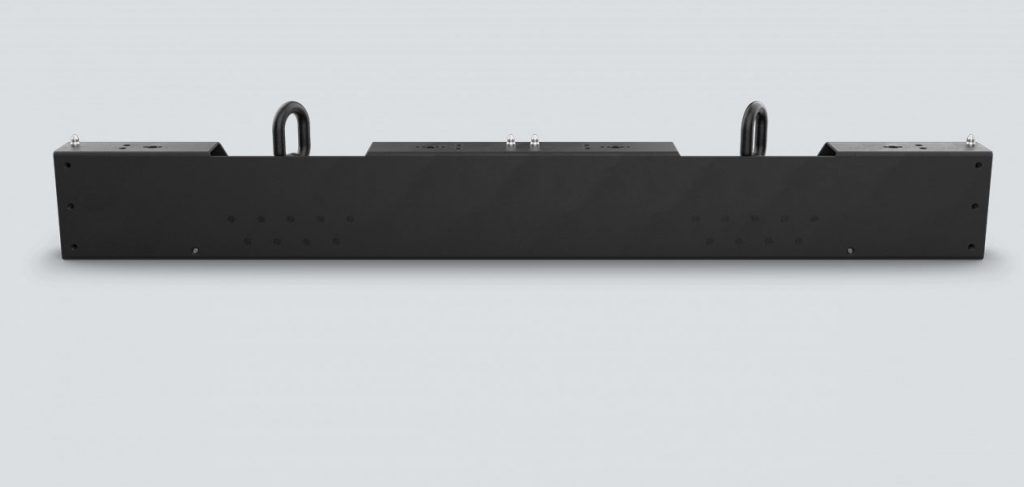

DRB-F100CM

DRB-F100CM and the DRB-F50CM are newly designed rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the new GROUNDSUPPORT2KIT.

Highlights

  • F-series Dual Function Rig Bar, used to hang video panels vertically or horizontally

  • Works for overhead hanging, as well as ground support/stacking applications

  • Works with CHAUVET F-series video panels (F4, F3, F2, F5IP, F4IP, VIVID4)

  • Hoist Rings fit standard rigging hardware for overhead hanging (1/2″ and 5/8″ shackles)

  • Magnetic alignment hardware between other dual function F-Series Rig Bars ensures correct alignment of screen structure

Specifications

  • Weight:20 lb (9.1 kg)
  • Dimensions:39.35 x 2.36 x 4.72 in (999.6 x 60 x 120 mm)
  • Approvals:CE
  • Load Capacity (Hanging): 1,300 lb (590 kg)
  • Load Capacity (Stacking): 2,000 lb (900 kg)
  • Recommended Shackle Sizes: 1/2", 5/8"

What's Included

  • DRB-F100CM
  • 1pcs F-series Dual Function Rig Bar-100 cm (DRB-F100CM)
