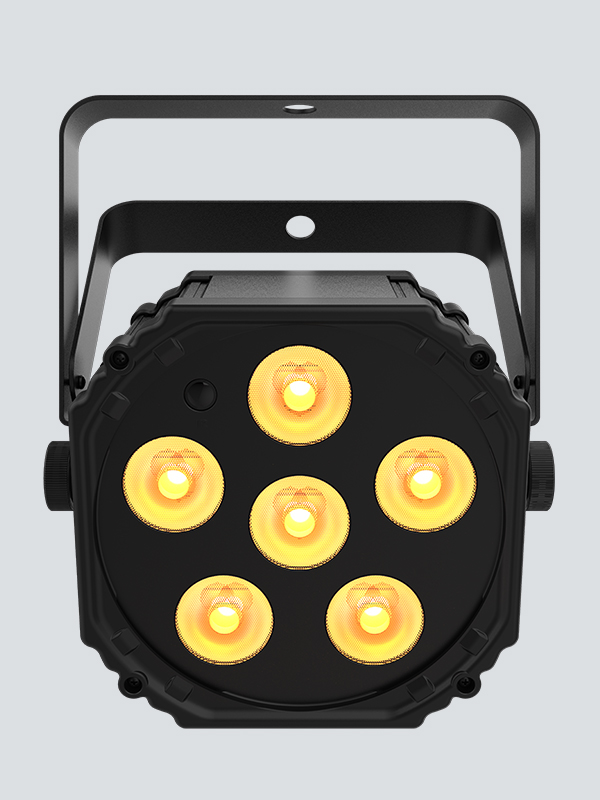

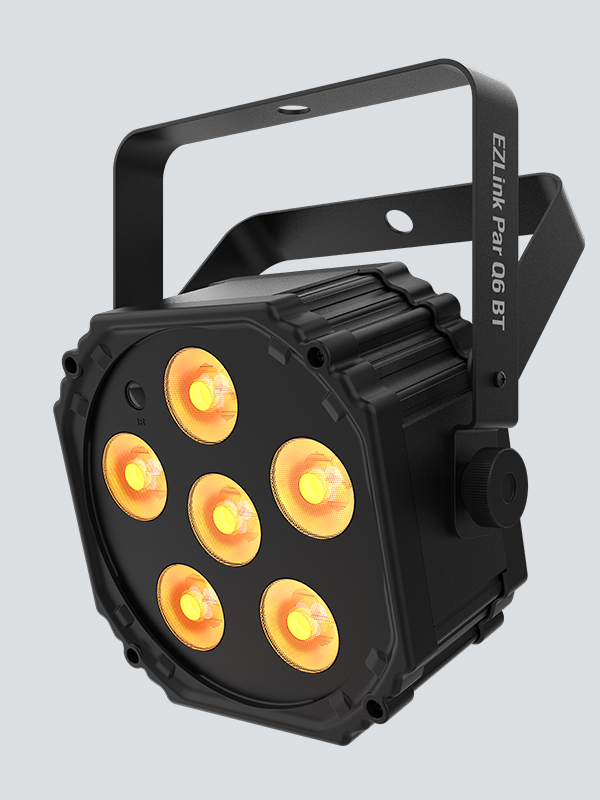

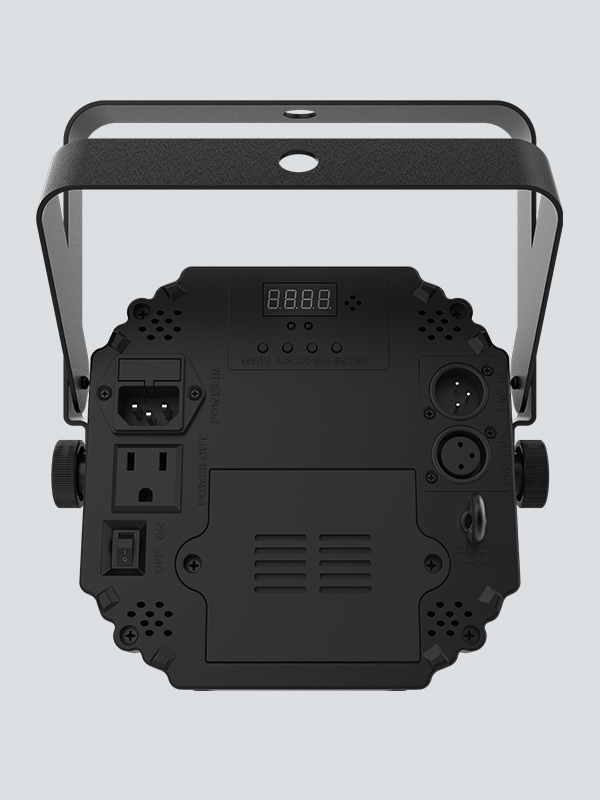

EZLink Par Q6BT

Battery-powered lighting just got even more convenient with EZLink Par Q6BT, a 100% TRUE wireless battery-operated Par with built-in Bluetooth® wireless technology. Harness the color-mixing power of this versatile fixture with six quad-color (RGBA) LEDs, including genuine amber, right from any smartphone or tablet—no additional hardware needed! Imagine the ability to wash smaller event spaces with dynamic lighting displays, using the free BTAir smartphone app (patent pending). EZLink Par Q6BT allows you convenient wireless non-DMX control using the IRC-6 remote or through sound-activated and automated programs. Fits best in the CHS-40 VIP Gear Bag.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Chauvet & Sons, LLC is under license. Other trademarks and trade names are those of their respective owners.

Highlights

  • 100% TRUE wireless, battery-operated, quad-color (RGBA) LED Par with built-in Bluetooth® wireless technology

  • Control directly from a smart phone or tablet without any additional hardware

  • Convenient, wireless non-DMX control using the IRC-6 remote

  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

  • Generate eye-catching effects with sound-activated and automated programs

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels:4 or 8
  • DMX Connectors:3-pin XLR
  • Max Unobstructed Distance:150 ft (45.7 m)
  • Light Source:6 LEDs (quad-color RGBA) 3 W, (900 mA), 50,000 hours life expectancy
  • Strobe Rate:0 to 25 Hz
  • PWM Frequency:1.58 kHz
  • Beam Angle:19°
  • Field Angle:35°
  • Maximum Run Time:(all on): up to 8 hours
    (single color): up to 20 hours
  • Recharge Time:7 hours
  • Operating Frequency:2.4 GHz
  • Illuminance:1,587 lux @ 2 m
  • Power Linking:21 units @ 120 V; 45 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:40 W, 0.4 A @ 120 V, 60 Hz
    39 W, 0.2 A @ 230 V, 50 Hz
  • Weight:3.6 lb (1.7 kg)
  • Size:8 x 9.6 x 3.4 in (206.6 x 244 x 86 mm)
  • Approvals:CE, FCC
  • Bracket Mounting Hole: M12
  • Optional Controllers: IRC-6
  • Bluetooth Version: 4.2

What's Included

  • EZLink Par Q6BT
  • EZLink Par Q6BT
  • Power cord
  • Hanging bracket
