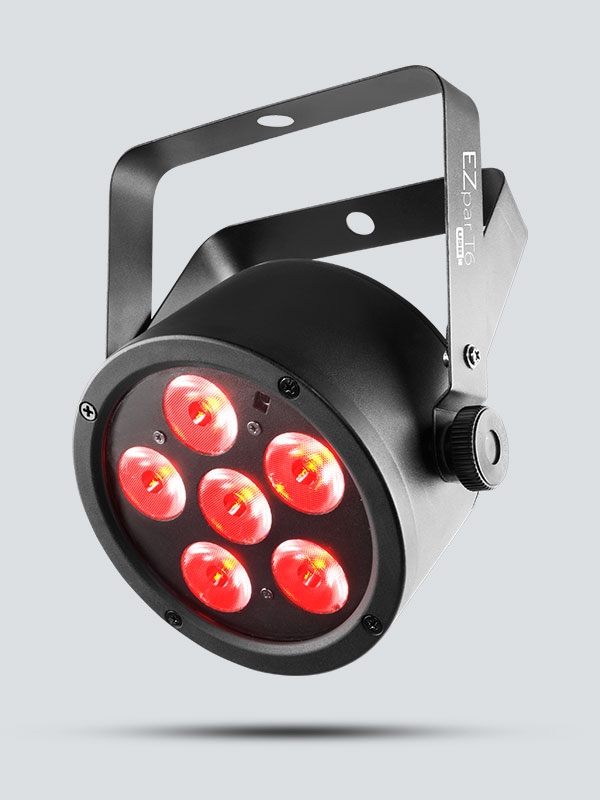

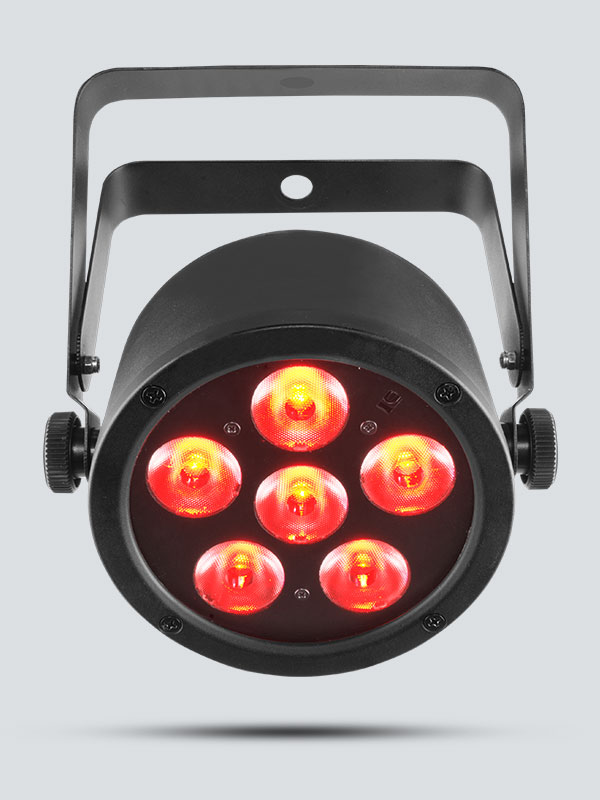

EZpar T6 USB

EZpar T6 USB is a battery-operated, tri-color RGB LED wash light. D-Fi USB compatible for wireless Master/Slave or DMX control. Its rechargeable, lithium battery lasts up to 20 hours from a single charge and you can easily check the battery status with the built-in battery life indicator. Convenient access to RGB color mixing and static colors is available with or without DMX. Built-in automated programs via the IRC-6 remote or Master/Slave mode makes control easy. Compact, it easily fits inside sticks of TRUSST® to serve as a Trusst warmer and travels easily in the CHS-30 VIP Gear Bag.

Highlights

  • Battery-operated, tri- color RGB LED Par goes anywhere light is needed

  • Rechargeable, lithium battery lasts up to 20 hours from a single charge and you can easily check the battery status with the built-in battery life indicator

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

  • Convenient access to RGB color mixing and static colors with or without DMX

  • Flicker-free operation suitable for on-camera use

  • Access built-in automated programs via IRC-6 remote, Master/Slave

  • Fits best in the CHS-30 VIP Gear Bag

  • Compact design easily fits inside sticks of TRUSST

Specifications

  • DMX Channels: 3 or 8

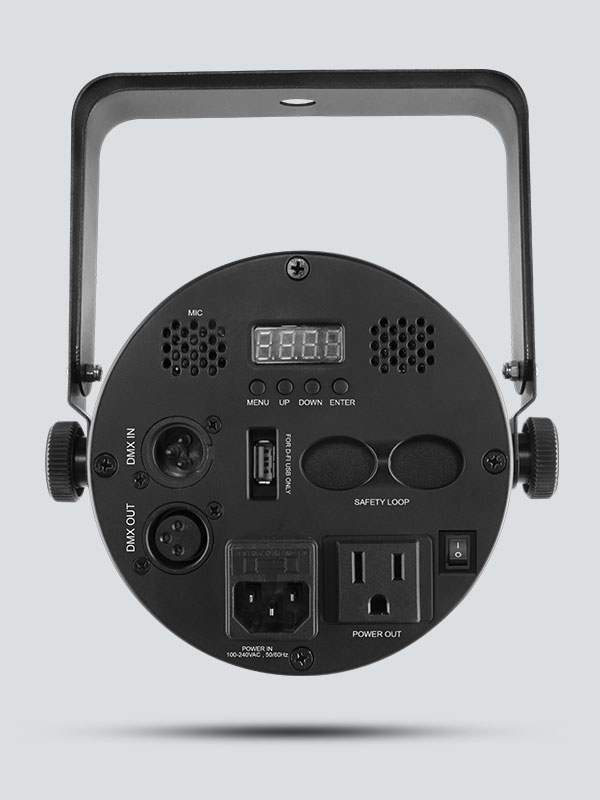

  • DMX Connectors: 3-pin XLR
  • Light Source: 6 LEDs (tri-color RGB) 3 W, (0.82 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 21 Hz
  • PWM Frequency: 1.20k Hz
  • Beam Angle: 19°
  • Field Angle: 29°
  • Maximum Run Time: (all on): up to 8 hours
    (single color): 20 hours
  • Recharge Time: 4.5 hours
  • Illuminance: 1,440 lux @ 2 m
  • Power Linking: 24 units @ 120 V; 41 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 22 W, 0.3 A @ 120 V, 60 Hz
    23 W, 0.2 A @ 230 V, 50 Hz
  • Weight: 3.8 lb (1.7 kg)
  • Size: 7.1 x 4.1 x 9.1 in (180 x 105 x 231 mm)
  • Approvals: CE
  • Optional Controllers: IRC – 6, D-Fi USB

What's Included

  • EZpar T6 USB
  • IRC-6
  • Power Cord
  • Hanging bracket
