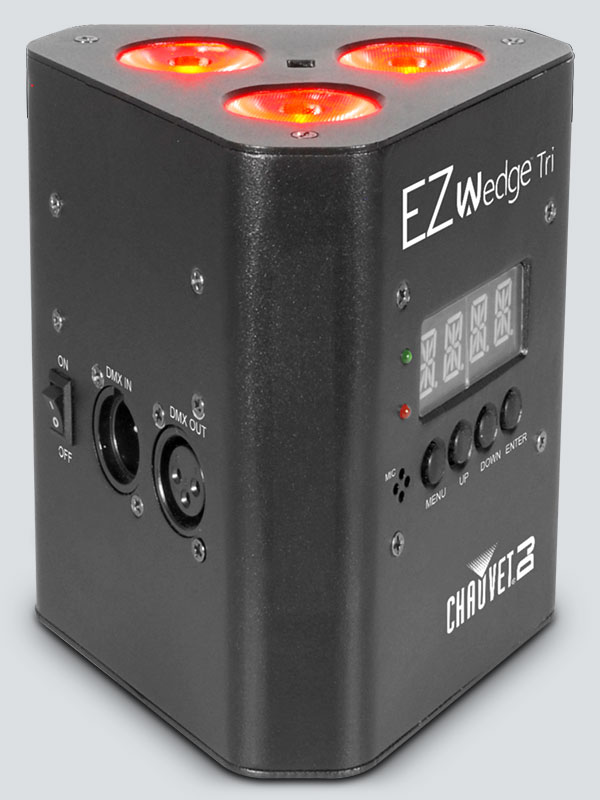

EZWedge Tri

EZWedge Tri is a battery-operated, tri-color LED wash light that fits perfectly inside TRUSST Goal Post and Arch Kit truss systems. The rechargeable, lithium battery lasts up to 20 hours from a single charge, and you can easily check the battery status with the built-in battery life indicator. The EZWedge Tri attaches to 35-mm truss without the need for a bracket, using M10 or M12 threaded rig points. Its flicker-free operation is suitable for on-camera use and it provides smooth dimming with built-in dimming curves. Easily control static colors and automated programs with the included IRC-6 remote, or create any color without DMX by using the built-in digital display and build coordinated light shows by linking other tri-color LED fixtures in Master/Slave mode.

Highlights

  • Battery-operated, tri-color LED wash light fits perfectly inside TRUSST® Goal Post and Arch Kit truss systems

  • Rechargeable, lithium battery lasts up to 20 hours from a single charge

  • Easily check the battery status with the built-in battery life indicator

  • Attaches to 35-mm truss without the need for a bracket, using M10 or M12 threaded rig points

  • Easily control static colors and automated programs with the included IRC-6 remote

  • Create any color without DMX by using the built-in digital display

  • Smooth dimming with built-in dimming curves

  • Flicker-free operation suitable for on-camera use

  • Create coordinated light shows by linking other tri-color LED fixtures in Master/Slave mode

Specifications

  • DMX Channels: 3 or 8
  • DMX Connectors: 3-pin XLR
  • Light Source: 3 LEDs (tri-color RGB) 3 W (1,050 mA), 50,000 hours life expectancy
  • Strobe Rate: 0 to 17 Hz
  • PWM Frequency: 5.39 KHz
  • Beam Angle: 16°
  • Illuminance: 1,066 lux @ 2 m
  • Power Linking: 33 units @ 120 V; 57 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 17 W, 0.2 A @ 120 V, 60 Hz
    16 W, 0.1 A @ 230 V, 50 Hz
  • Weight: 2.8 lb (1.3 kg)
  • Size: 4.3 x 4.3 x 5.4 in (108 x 108 x 136 mm)
  • Included Controllers: IRC-6

What's Included

  • EZWedge Tri
  • Power Cord
  • IRC-6
  • Warranty Card
  • Quick Reference Guide
