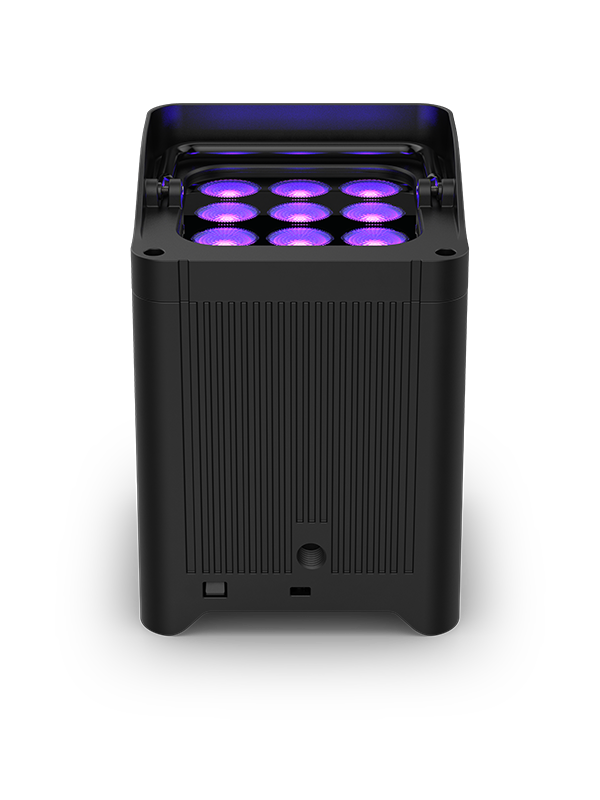

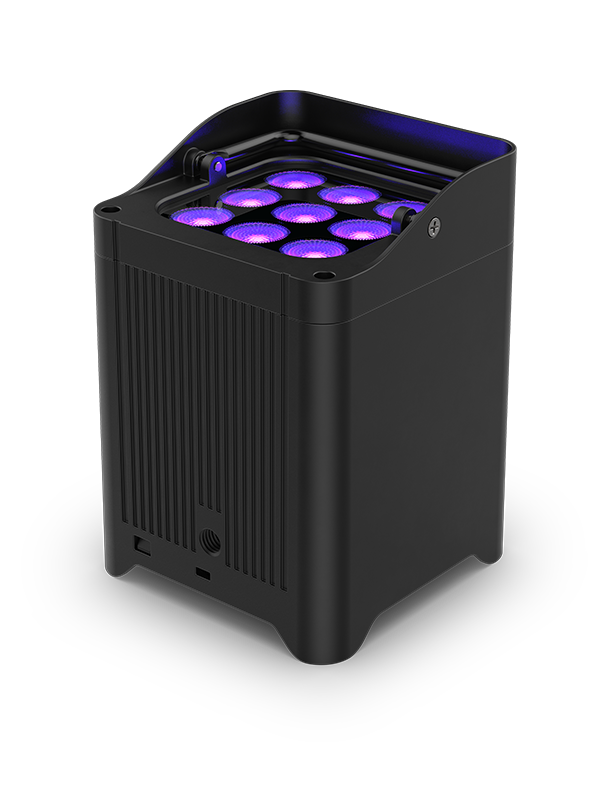

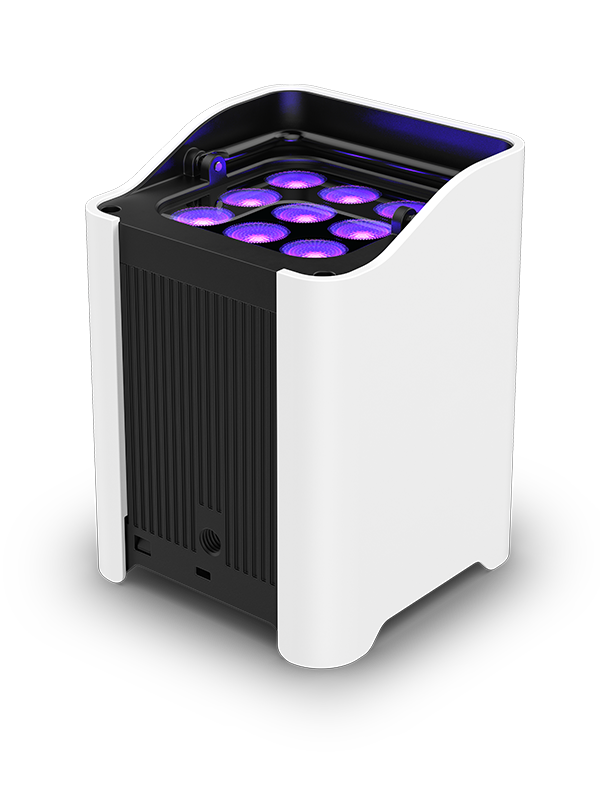

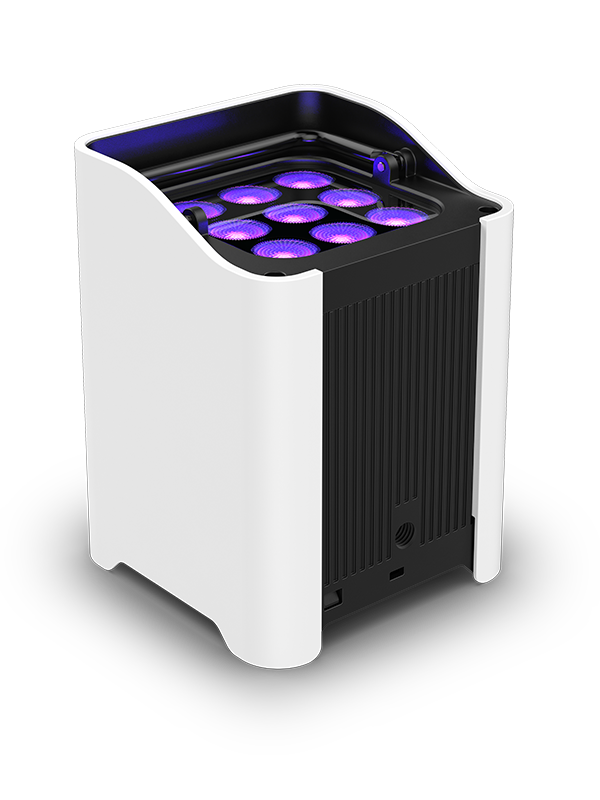

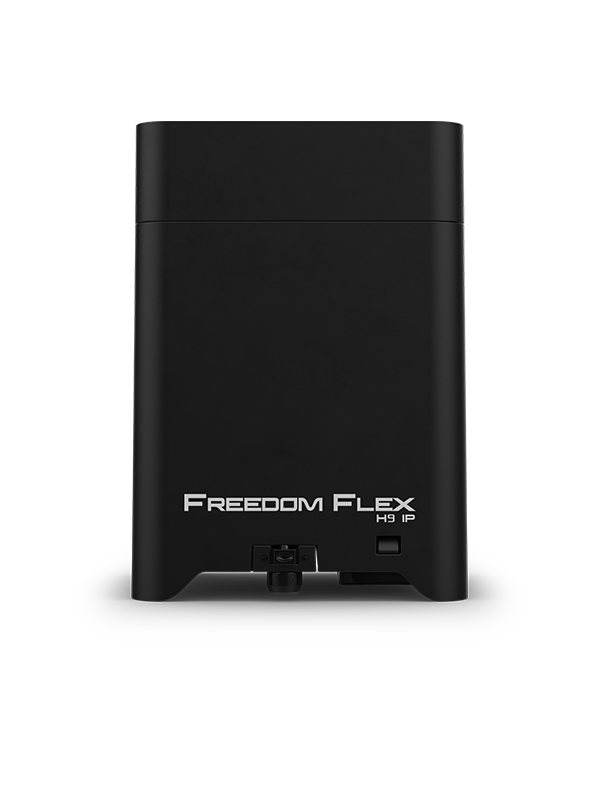

Freedom Flex H9 IP X6

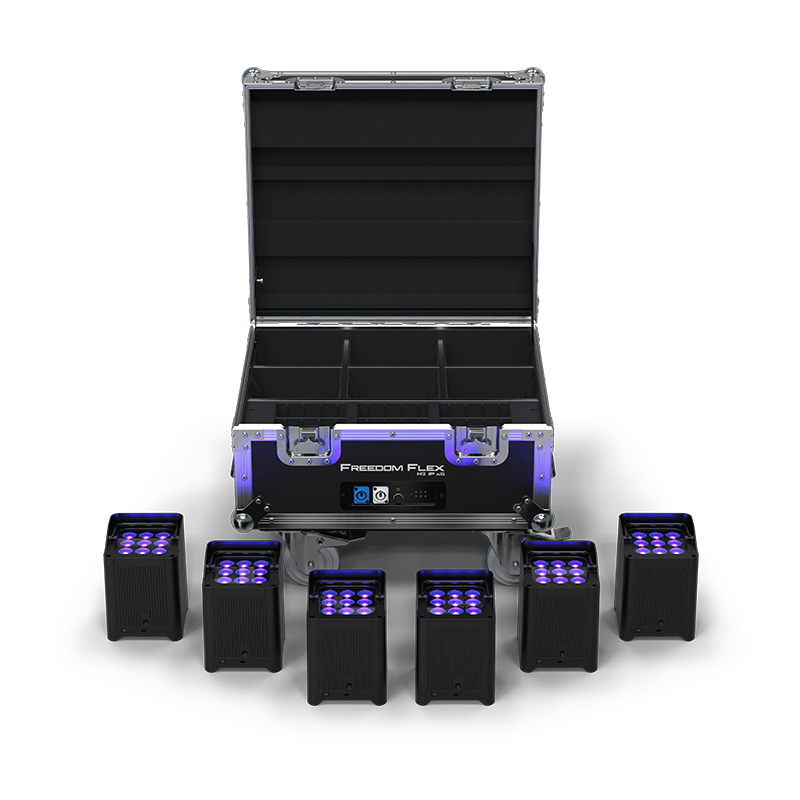

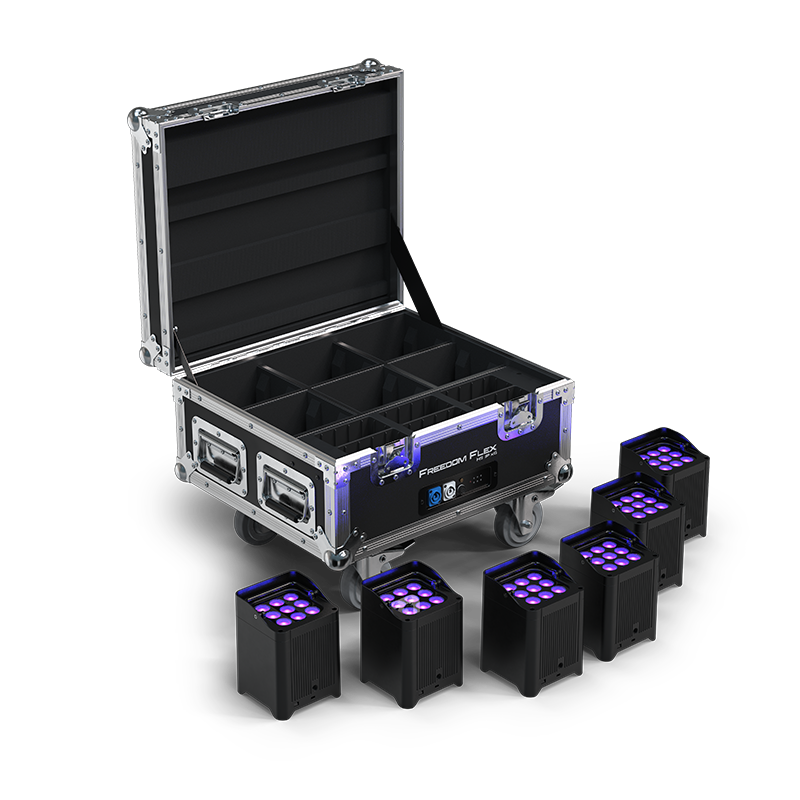

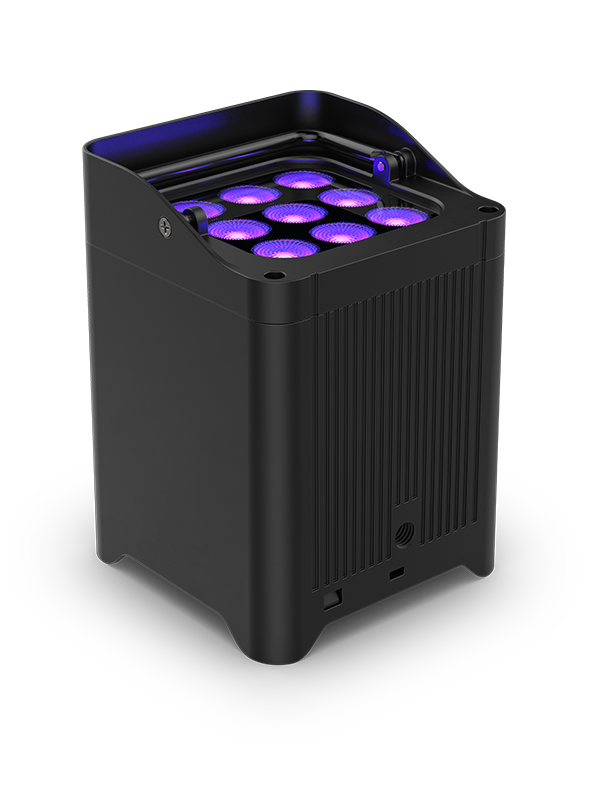

Experience unbridled and unlimited color mixing capabilities with Freedom Flex H9 IP X6, a complete lighting package including six 100% TRUE wireless, battery-operated, hex-colored (RGBAW+UV) lights in a charging road case that simultaneously charges up to six swappable batteries that ensure the fixtures are always ready to go. A Built-in RF receiver for wireless control using the included RFC or optional RFC-XL remotes and new secondary optics provide perfect color blending with nearly no artifacts. Freedom Flex H9 IP fixtures are ready indoors or out with robust housing that repels the elements for temporary outdoor situations. The lights feature full text OLED displays for easy navigation and adjustable run times ensure the fixtures last as long as your events do.

Highlights

  • 100% TRUE wireless, battery-operated, uplight package with built-in D-Fi transceivers

  • Swappable battery packs ensure the fixture is always ready to go

  • Charging road case simultaneously charges up to 6 batteries

  • Robust housing repels mother nature for temporary outdoor situations

  • New secondary optics provide perfect color blending with nearly no artifacts

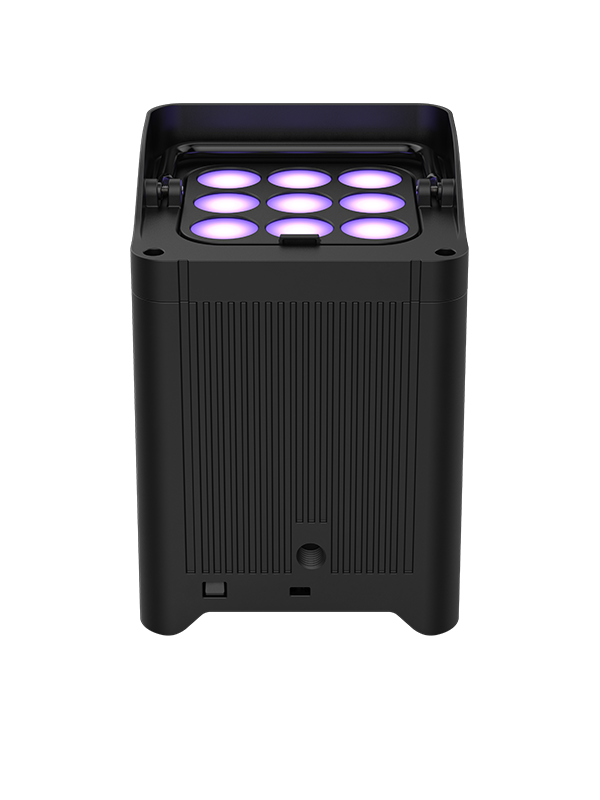

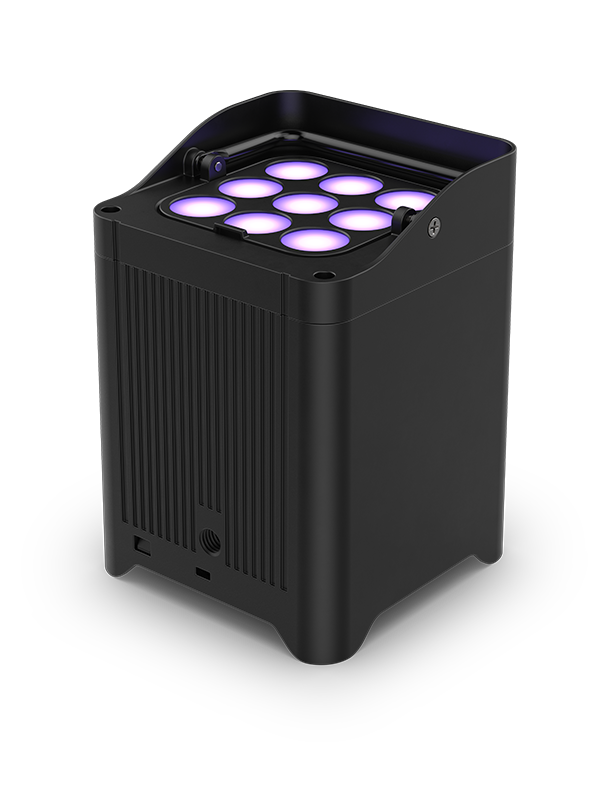

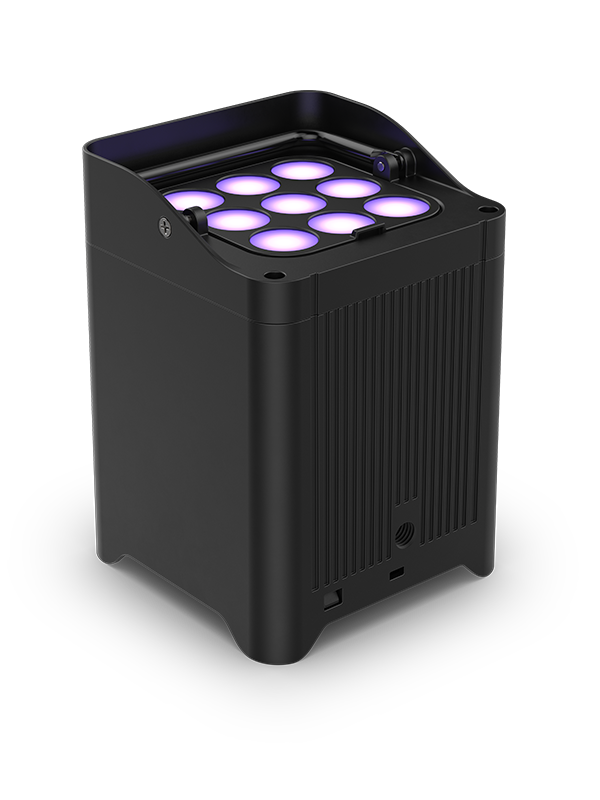

  • Magnetic diffuser pops on or off with ease and widens the coverage area

  • Adjustable run times ensure the fixture will last the length of the event

  • OLED display allows for full-text and to easily change fixture’s settings

  • Built-in RF receiver for wireless control using the included RFC or optional RFC-XL remotes

  • Adjust the projection angle using the spring-loaded kickstand

  • Built-in glare shield protects light spillage and eye fatigue

  • Extend the fixture’s lifespan with the onboard charge and discharge protection circuitry

  • Achieve smooth LED fading with built-in dimming curves

Specifications

  • DMX Channels:6, 8 or 16
  • Max Unobstructed Distance:600 ft (183 m)
  • Light Source:9 LEDs (hex-color RGBAW+UV, 10 W, (5.7A), 50,000 hours life expectancy
  • Strobe Rate:1 to 25 Hz
  • Beam Angle:28°
  • Field Angle:60°
  • Recharge Time:3 hours
  • Operating Frequency:2.412 to 2.484 GHz
  • Illuminance:1,403 lux @ 2 m
  • Lumens:2,028
  • IP Rating:IP54
  • Power and Current:
    377 W, 3.2 A @ 120 V, 60 Hz
    365 W, 1.8 A @ 230 V, 50 Hz
  • Weight:67.4 lbs. (30.6 kg)
  • Size:19.6 x 21.7 x 16.6 in (498 x 552 x 423 mm)
  • Approvals:CE, ROHS, UKCA, RoHS, FCC
  • Beam Angle (with diffuser): 45°
  • Field Angle (with diffuser): 85°
  • Illuminance (with diffuser): 602 lux @ 2 m
  • Run Time (adjustable): 3, 5, 8, or 12 hrs
  • Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
  • Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
  • Bracket Mounting Hole: M12
  • Wheel Size: 3 in (76.2 mm)
  • Optional Controllers: RFC-XL, FlareCON

What's Included

  • Freedom Flex H9 IP X6
  • 6 fixtures
  • 6 batteries
  • 6 magnetic diffusers

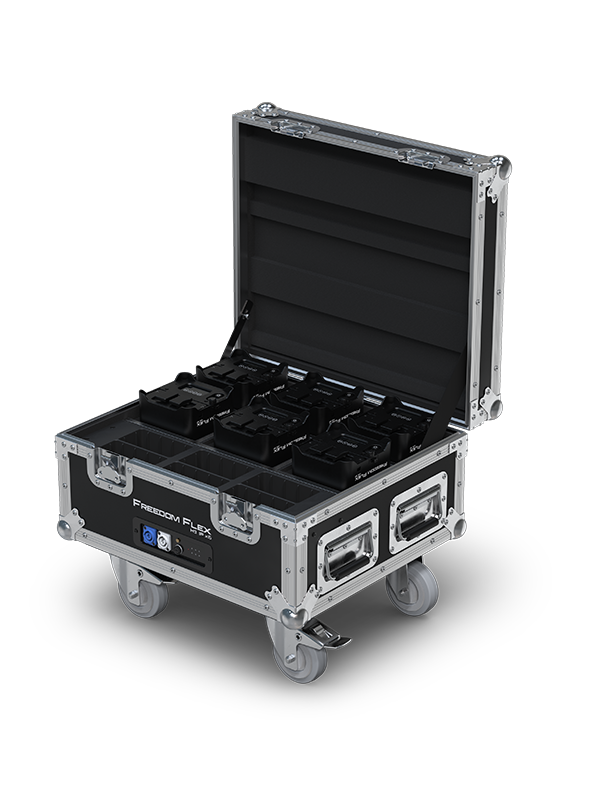

  • Charging road case
  • RFC remote
  • Power cord
  • Quick Reference Guide
