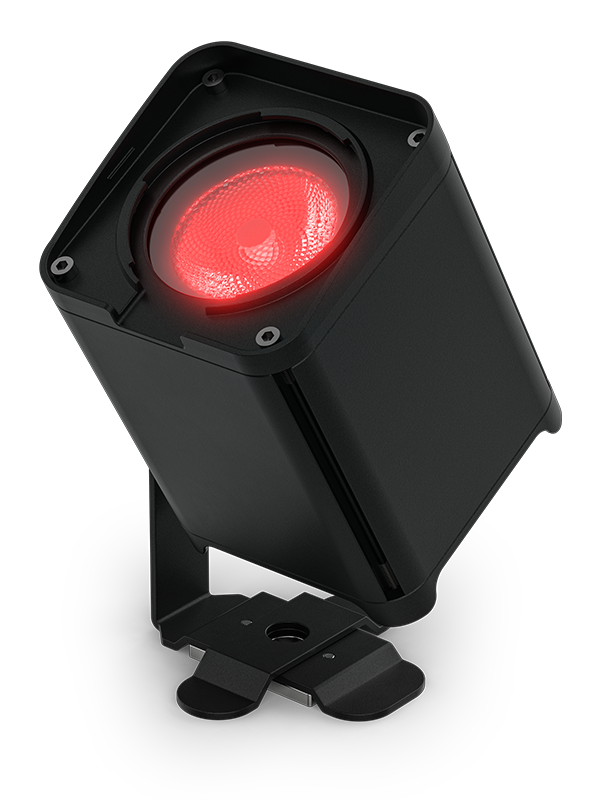

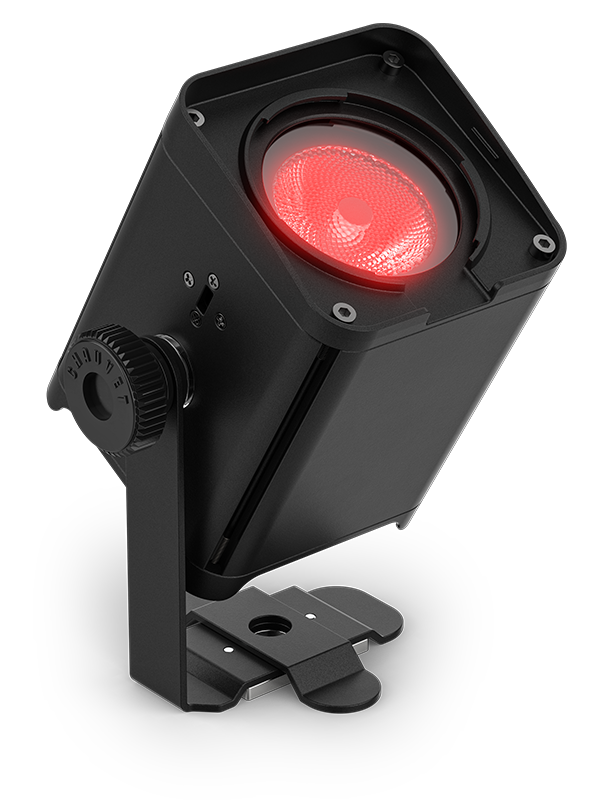

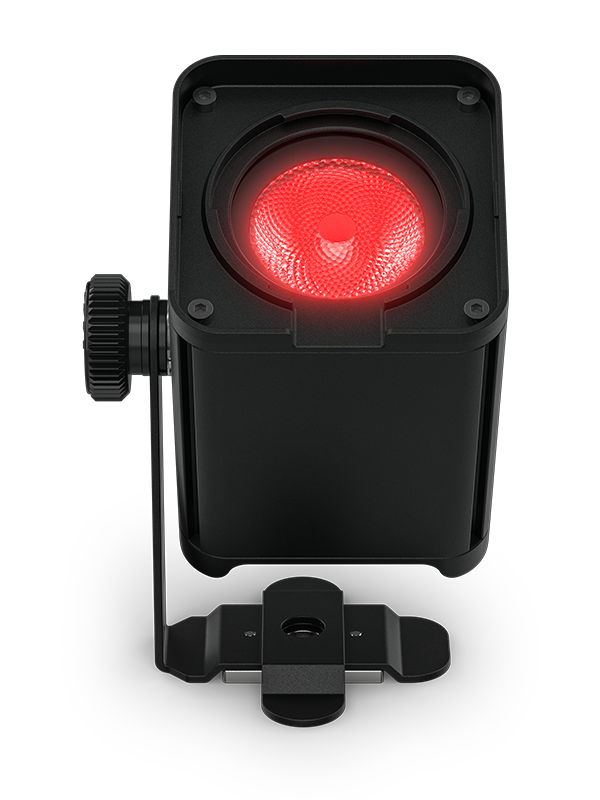

Freedom H1 IP ILS X4

Enjoy complete wireless freedom in a tiny package with this four-pack kit of ultra-compact outdoor-rated RGBAW+UV LED wash lights ready to go anywhere, indoors or out. Battery-operated Freedom H1 IP ILS X4 fixtures put a versatile tool for accent lighting in the palm of your hand along with a beam angle wide enough for perfect uplighting and downlighting looks. Run up to 8 hours at full output or 20 hours with a single color after each charging session with the included multi-charger. Easily attach their magnetic base to most metal surfaces and choose the control that suits your setup with built-in D-Fi transceiver, RF receiver, and OLED digital display.

Highlights

  • Outdoor-rated, palm-sized wash light perfect for highlighting small subjects

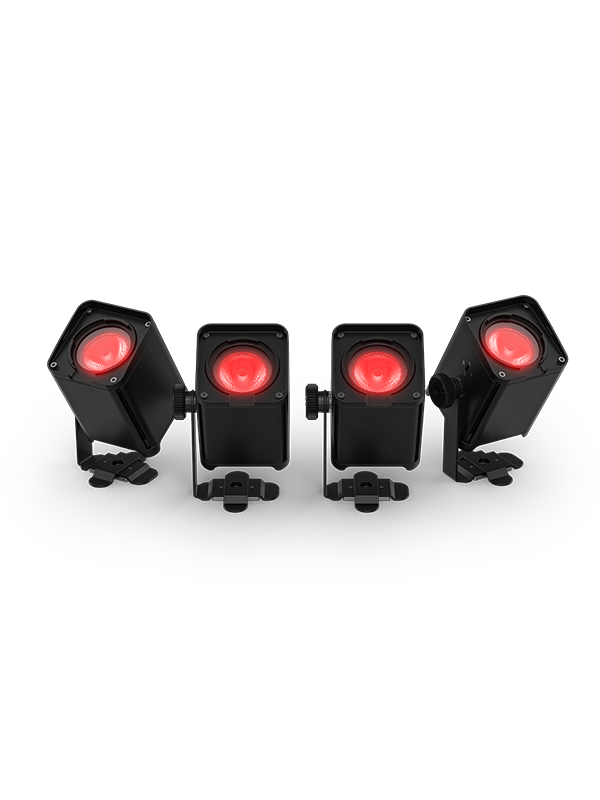

  • Sold as a complete kit with 4 fixtures, multi-charger, and RFC remote

  • Robust housing repels Mother Nature for temporary outdoor situations

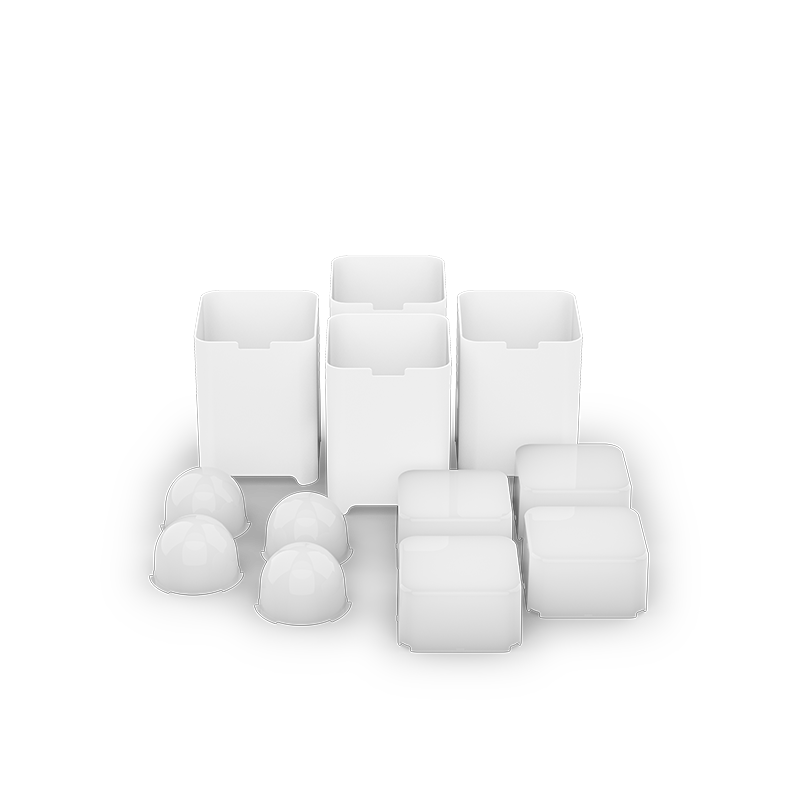

  • Accessory kit includes a round dome, square top, and white sleeves (sold separately)

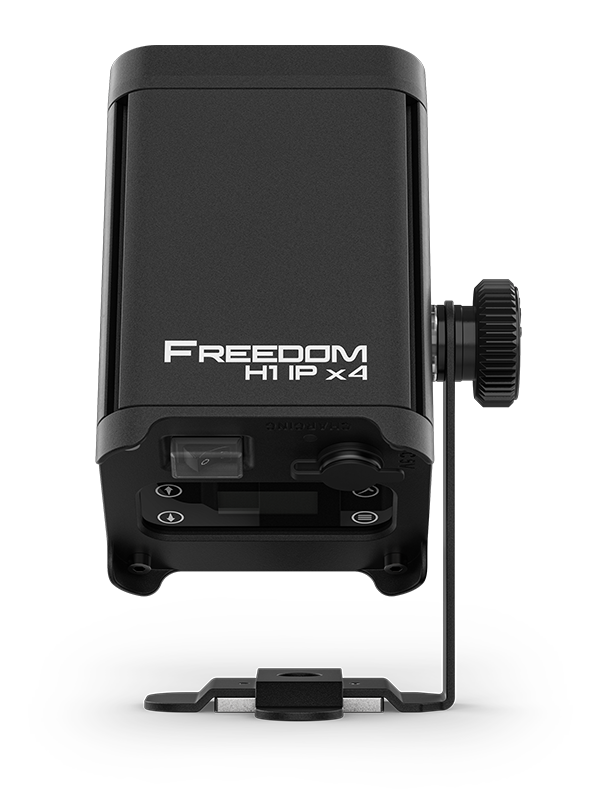

  • OLED display allows for full-text and easily changeable fixture settings

  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

  • Built-in D-Fi transceiver wirelessly communicates with other D-Fi-enabled devices

  • Magnetic base to easily mount the product to most metal surfaces

Specifications

  • DMX Channels:6, 8, or 12
  • Max Unobstructed Distance:600 ft (183 m)
  • Light Source:1 LED (hex-color, RGBWA+UV) 10 W, (3 A), 50,000 hours life expectancy.
  • Strobe Rate:0 to 20 Hz
  • Beam Angle:23°
  • Field Angle:44°
  • Operating Frequency:2.412 to 2.484 GHz
  • Illuminance:168 lux @ 2 m
  • Lumens:137
  • IP Rating:IP54
  • Input Voltage:5 VDC, 1.5A (External power supply)
  • Power and Current:13 W, 0.2 A 230 V, 50 Hz
  • Power and Current:13 W, 0.3 A 120 V, 60 Hz
  • Approvals:CE, ROHS, FCC
  • Maximum Run Time (all on): up to 8 hours
  • Maximum Run Time (single color): up to 20 hours
  • Recharge Time: 6 hours
  • Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
  • Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
  • Bracket Mounting Hole: M12
  • Weight (fixture): 1.6 lbs. (0.7 kg)
  • Size (fixture): : 3 x 3 x 4.2 in (75 x 75 x 107 mm)
  • Optional Controllers: RFC, RFC-XL, FREEDOM Connect

What's Included

  • Freedom H1 IP ILS X4
  • 4 fixtures
  • 1 multi-charger

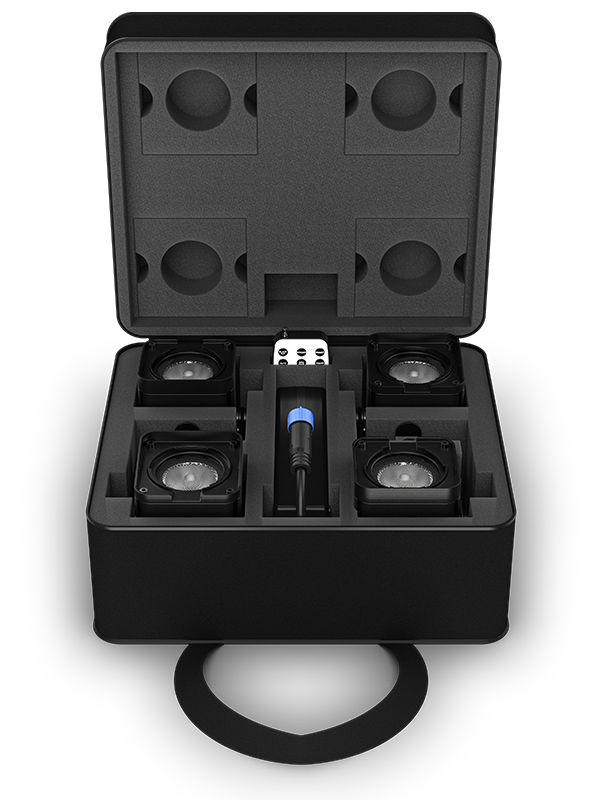

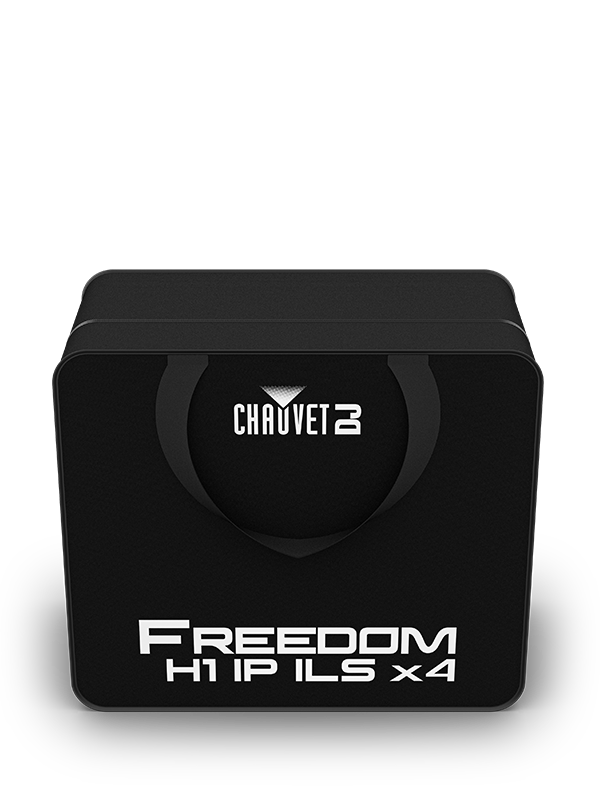

  • 1 carry case
  • 1 RF remote
  • 1 QRG
Save & Print

Downloads

Freedom H1 IP ILS X4 - QRG
Freedom H1 IP ILS X4 - UM
