Discontinued Since 2015

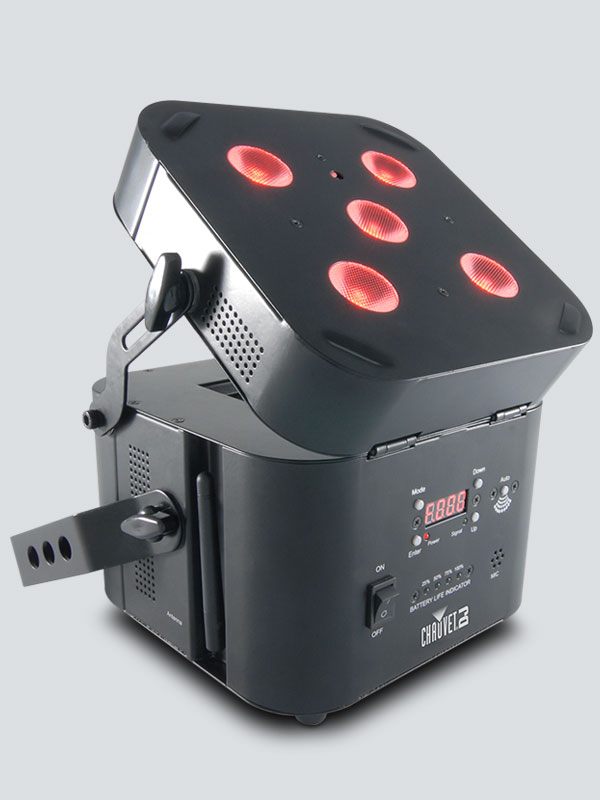

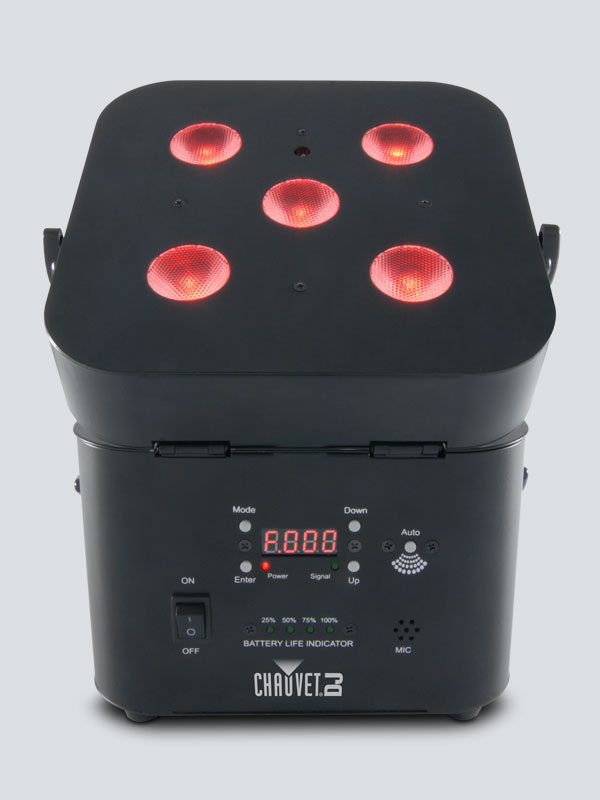

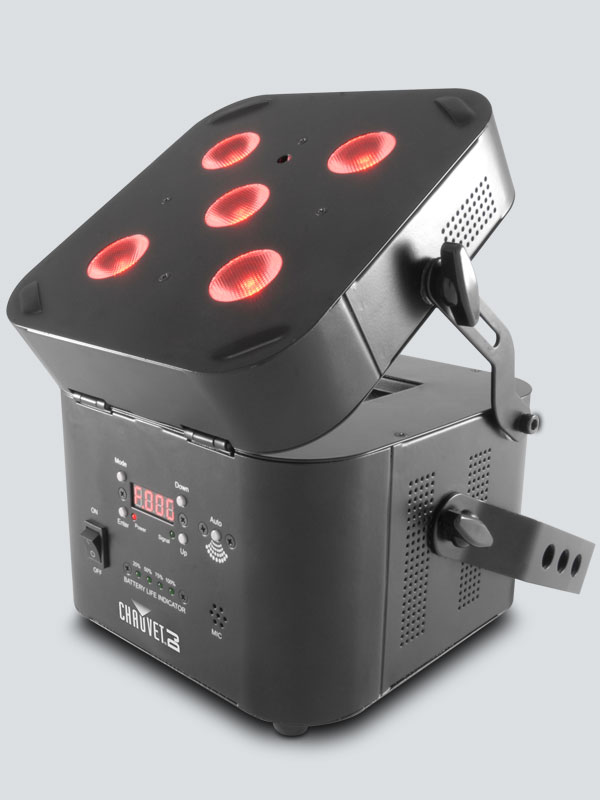

Freedom Par Quad-5

The Freedom Par Quad-5 pairs the familiar Freedom Par form with high-power quad-color LEDs. Five, 5-watt RGBA quad-color LEDs produce vivid, saturated colors and nearly eliminate multicolored shadows. A completely wireless DMX control option is available and made easy using built-in battery power and an integrated D-Fi 2.4 GHz system. For even easier operation when wireless DMX isn’t needed, point-and-shoot operation is available using the IRC (infrared remote control).

Highlights

  • 100% TRUE wireless, battery-operated, quad-color LED Par with built-in D-Fi™ 2.4 GHz wireless control

  • Create rich colors and pastels with amber LEDs

  • Master/slave wirelessly using D-Fi 2.4 GHz with other Freedom™ fixtures for a coordinated light show

  • Send and receive wireless DMX signals using the built-in D-Fi™ 2.4 GHz transceiver

  • Create coordinated light shows by linking other COLORstrip™, COLORstrip™ Mini and Freedom™ fixtures in master/slave mode using D-Fi™ 2.4 GHz technology

  • Extended run time of up to 20 hours with the rechargeable, lithium-ion battery

  • Achieve precise color mixing with 5 (5 W) quad-color LEDs

  • Extend the battery’s lifespan with built-in discharge protection

  • Shine light where it is needed using the adjustable, tilting head

  • Access built-in, eye-catching automated and sound-activated programs via wireless DMX, IRC remote or master/slave mode

  • IRC remote provides wireless non-DMX control

  • Compact design easily fits inside sticks of TRUSST®

  • Easily charge, store and transport your fixtures from gig to gig in the Freedom™ Charge P

Specifications

  • DMX Channels: 4 or 5

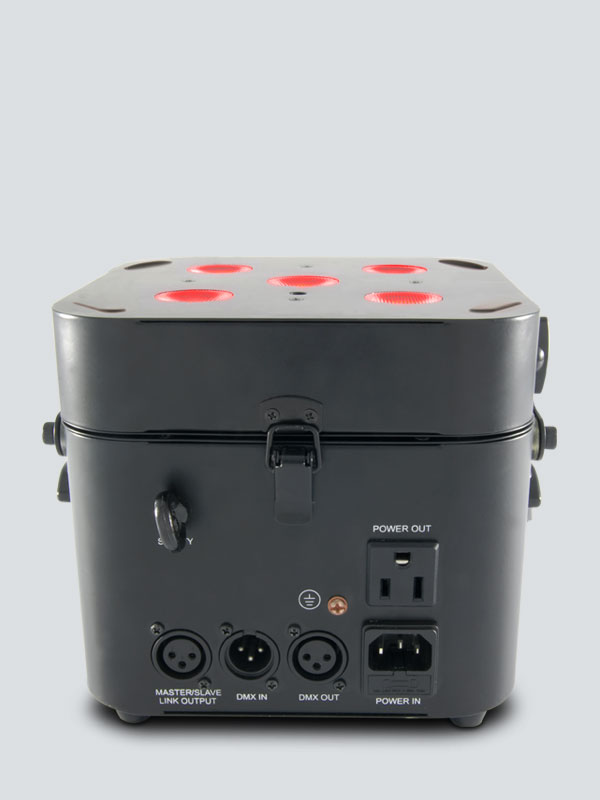

  • DMX Connectors: 3-pin XLR
  • Light Source: 5 LEDs (quad-color RGBA) 5 W (1.4 A), 50,000 hours life expectancy
  • Beam Angle: 24°
  • Field Angle: 48°
  • Maximum Run Time: (all on): up to 8 hours
    (single color): up to 20 hours
  • Recharge Time: 6 hours
  • Operating Frequency: 2.433 to 2.481 GHz
  • Illuminance: 605 lux @ 2 m
  • Power Linking: 12 units @ 120 V, 20 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 110 W, 0.9 A @ 120 V, 60 Hz
    116 W, 0.5 A @ 230 V, 50 Hz
  • Weight: 9.9 lb (4.5 kg)
  • Size: 9.3 x 8.5 x 8.8 in (236 x 215 x 223 mm)
  • Approvals: CE, FCC
  • Included Controllers: IRC

What's Included

  • Freedom Par Quad-5
