Freedom Q1N

Submit A Review

Read Our Review

0 out of 5 stars (based on 0 reviews)

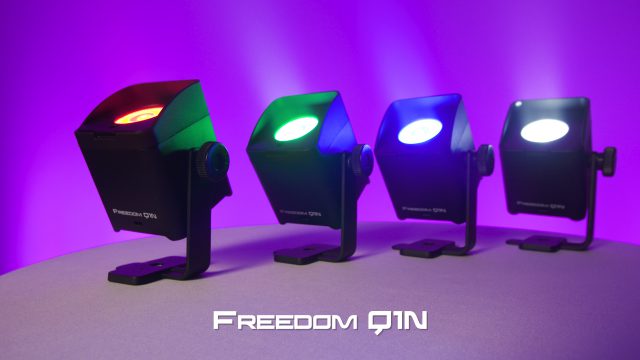

Freedom Q1N is a battery-powered RGB+WW pin spot fixture with a built-in D-fi transceiver. Part of the 100% TRUE wireless Freedom ecosystem, Freedom Q1N can be controlled remotely and programmed in sync with other Freedom products. This compact and powerful fixture features a narrow beam perfect for highlighting special event elements. Its magnetic base and small size mean effortless mounting, controlling, and transporting. The Freedom Q1N system includes 4 fixtures, a carry bag, multi-charger, and IRC-6 remote.

Highlights

  • 100% TRUE wireless, battery-operated, narrow LED wash with built-in D-Fi transceiver

  • Suitable for every event with either black or white housing

  • System includes 4 fixtures, a carry bag, multi-charger and IRC-6 remote

  • Multiple control options include stand-alone, wireless DMX or IR

  • Compact size provides effortless transport and set-up

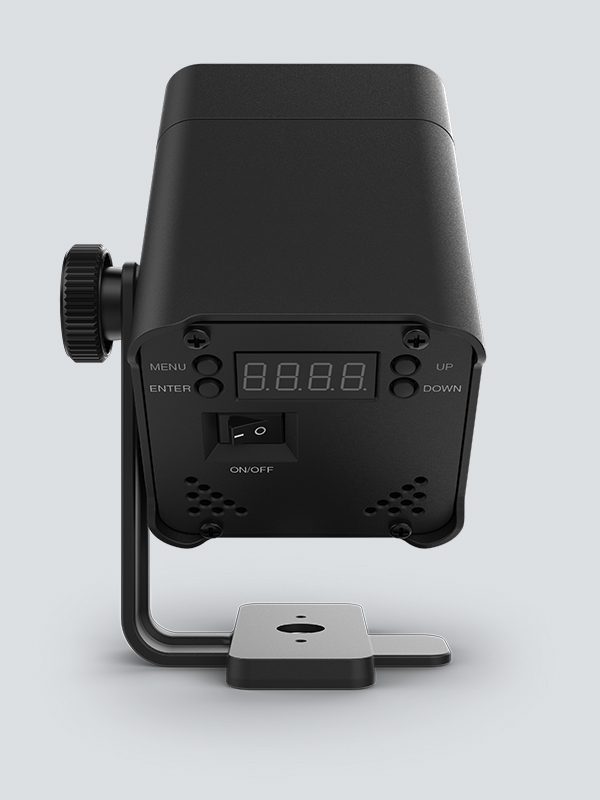

  • Digital display for easy control and adjusting all settings

  • Magnetic base to easily mount light to most metal surfaces

  • Built-in Kensington security slot prevents theft

Specifications

  • DMX Channels: 4, 6 or 10
  • Light Source: 1 LED (quad-color RGB+WW) 6 W, (2 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 25 Hz
  • PWM Frequency: 1200 Hz
  • Beam Angle: (w/o filter) : 8°
    (w/ filter) : 15°
  • Field Angle: (w/o filter): 14°
    (w/ filter): 28°
  • Maximum Run Time: (all on): up to 8 hours
    (single color): up to 15 hours
  • Recharge Time: 6 hours
  • Operating Frequency: 2.412 to 2.484 GHz
  • Illuminance: (w/o filter): 1,700 lux @ 2 m
    (w/ filter): 415 lux @ 2 m
  • Input Voltage: 8.4 VDC, 1.3 A (external power supply: 100-240 VAC, 47/63 Hz)
  • Power and Current: 13 W, 0.2 A @ 120 V, 60 Hz
    12 W, 0.1 A @ 230 V, 50 Hz
  • Weight: 1.4 lb (0.6 kg)
  • Size: 3.8 x 3 x 5.5 in (97 x 75 x 139 mm)
  • Approvals: CE, FCC
  • Color Temperature (WW LED): 3700 K
  • Bracket Mounting Hole: M12

What's Included

  • Freedom Q1N
  • x4 Freedom Q1N
  • Multi-charger
  • IRC-6
  • Carry bag
  • Quick Reference Guide
