FXarray Q5

Submit A Review

Read Our Review

5 out of 5 stars (based on 3 reviews)

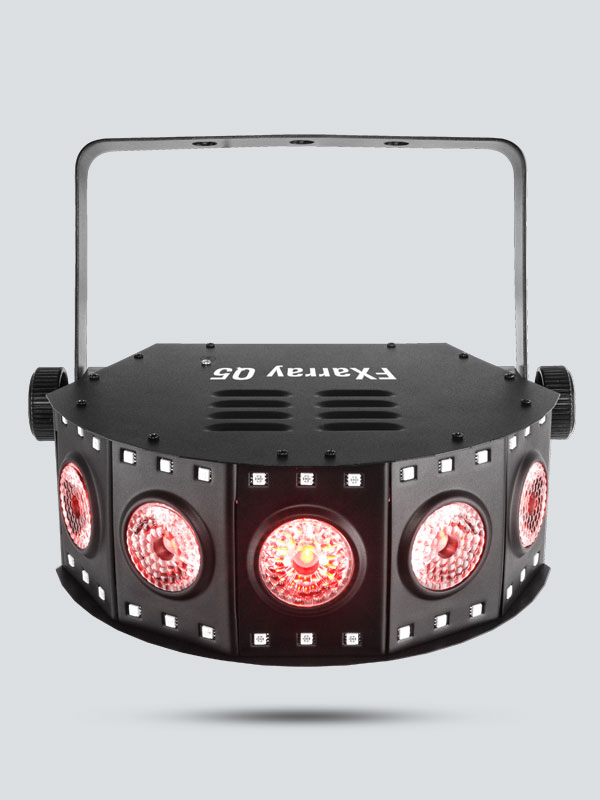

FXarray Q5 is an exciting and versatile quad-color LED wash light. It features an array of RGB+UV LEDs to spread light evenly across the dance floor with brilliant eye candy effects. Control the wash LEDs and the RGB SMDs separately for dynamic light shows and generate eye-catching effects with sound-activated and automated programs. FXarray Q5 is compatible with IRC-6 for flexible control over all features.

VIP Rewards Value: 220 Points



Highlights

  • Versatile quad-color LED wash light with brilliant eye candy effects

  • An array of RGB+UV LEDs spread light evenly across the dance floor

  • Control the wash LEDs and the RGB SMDs separately for dynamic light shows

  • Generate eye-catching effects with sound-activated and automated programs

  • Compatible with IRC-6 for flexible control over all features

  • Save time running extension cords by power linking multiple units

  • Fits best in the CHS-40 VIP gear bag

Specifications

  • DMX Channels: 3, 10 or 30
  • DMX Connectors: 3-pin XLR
  • Light Source: 5 LEDs (quad-color RGB+UV) 6W, (2.1 A), 50,000 hours life expectancy
    30 SMDs (tri-color RGB) 0.3 W, (0.1 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 19 Hz
  • Beam Angle: 22°
  • Field Angle: 36°
  • Illuminance: 314 lux @ 2 m (per pod)
  • Power Linking: 15 units @ 120 V; 27 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 34 W, 0.5 A @ 120 V, 60 Hz
    32 W, 0.3 A @ 230 V, 50 Hz
  • Weight: 3.4 lb (1.6 kg)
  • Size: 11 x 8 x 6 in (285 x 207 x 155 mm)
  • Approvals: CE
  • Optional Controllers: IRC - 6

What's Included

  • FXarray Q5
  • FXarray Q5
  • Hanging bracket with mounting hardware

Downloads

Read Our Review

5 out of 5 stars (based on 3 reviews)

More feat than expected

May 9, 2019

This fixture is amazing and has ni short of features.

Ray wubz

Great light

March 6, 2019

I have added 14 of them to our new set up and let me tell you they are great. they are 14 foot off the floor and they light up the room the uv and the strobes it’s for sure a good all around light. thanks chauvet !

S & r

My go to light

December 1, 2018

I picked up a pair of these to run as wash lights for smaller jobs and was surprised- they’ll do more than just a small room.

ROB Z

Submit a Review
