GigBAR Flex

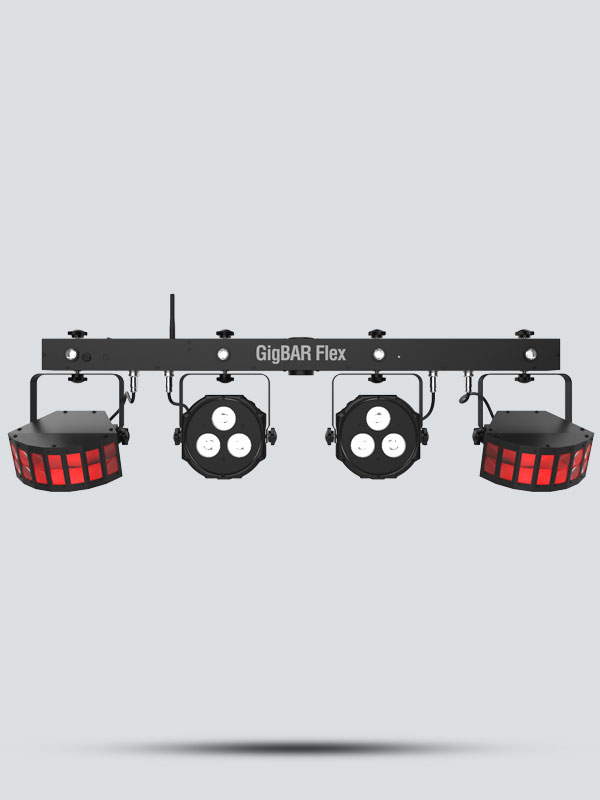

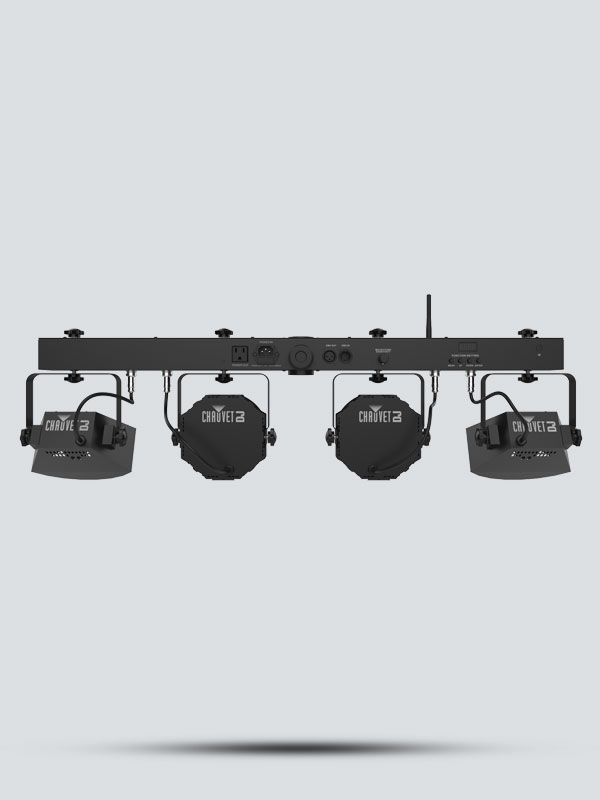

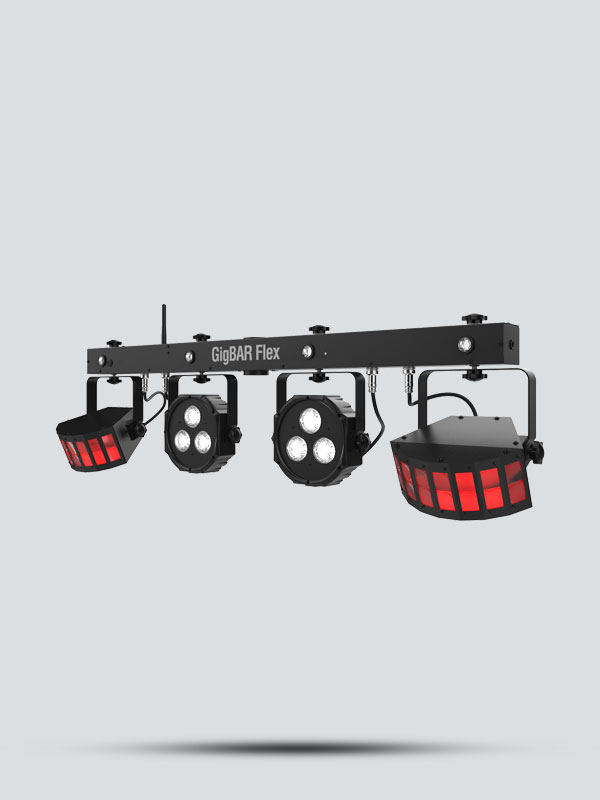

GigBAR Flex is an ultra-convenient 3-in-1 Pack-n-Go lighting system with a pair of LED Derbys, LED Quad-color pars (RGB + UV for increased color mixing and effects) and strobes. A pass-through mounting hole for flexible mounting options with various stage and speaker stands and adjustable leg brackets adds versatility.

Highlights

  • 3-in-1 fixture includes a pair of LED Derby, LED pars and strobe effect for ultimate convenience

  • Pass-through mounting hole for flexible mounting options with various stage and speaker stands

  • Built-in UV (blacklight) for increased color mixing and effects

  • Four individually adjustable heads provide wide room coverage and lighting versatility

  • Wireless footswitch for convenient hands-free control

  • Built-in automated and sound-activated programs make dynamic light shows easy

  • Get in and get out quickly with the included wireless footswitch and FREE carry bag

  • Master/slave multiple units under the control of a single IRC-6 or wireless foot switch

Specifications

  • DMX Channels:3, 8 or 20
  • DMX Connectors:3-pin XLR
  • Light Source:(pars): 6 LEDs (quad-color RGB + UV) 3.5 W (1 A), 50,000 hours life expectancy
    (strobe): 4 LEDs (white & UV) 5 W (1.5 A), 50,000 hours life expectancy
    (derby): 6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 18 Hz
  • Beam Angle:(pars): 13°
    (strobe): 8°
  • Field Angle:(pars): 24°
    (strobe): 18°
  • Coverage Angle:(derby): 114°
  • Illuminance:(pars): 1,078 lux @ 2 m (per head)
    (strobe): 86 lux @ 2 m (per zone)
  • Power Linking:12 units @ 120 V; 22 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:45 W, 0.7 A @ 120 V, 60 Hz
    46 W, 0.4 A @ 230 V, 50 Hz
  • Weight:11 lb (5 kg)
  • Size:37 x 4 x 15 in ( 949 x 110 x 388 mm)
  • Approvals:CE
  • Foot Switch Operating Frequency: 433 MHz
  • Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
  • Footswitch battery: 12 V A 23

What's Included

  • GigBAR Flex
  • GigBAR Flex
  • Power cord
  • Carrying bag
  • Wireless footswitch
  • IRC-6
