GigBAR IRC

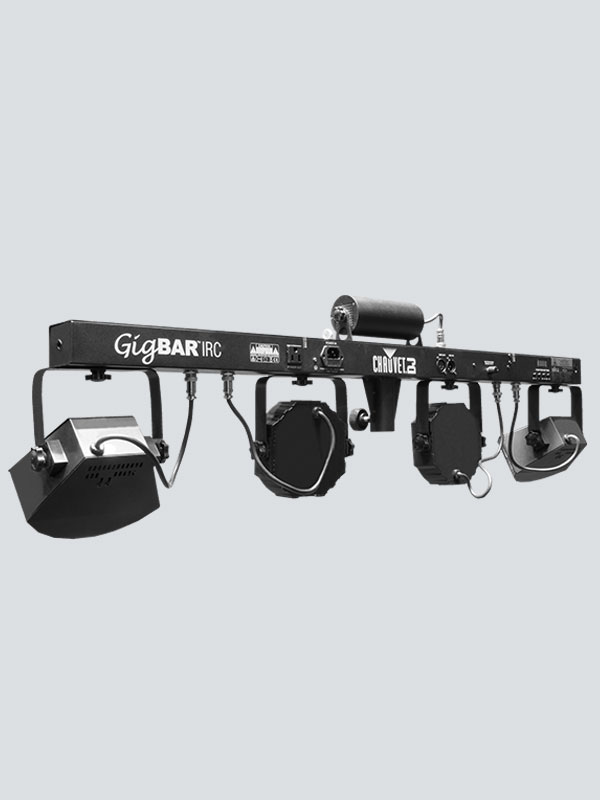

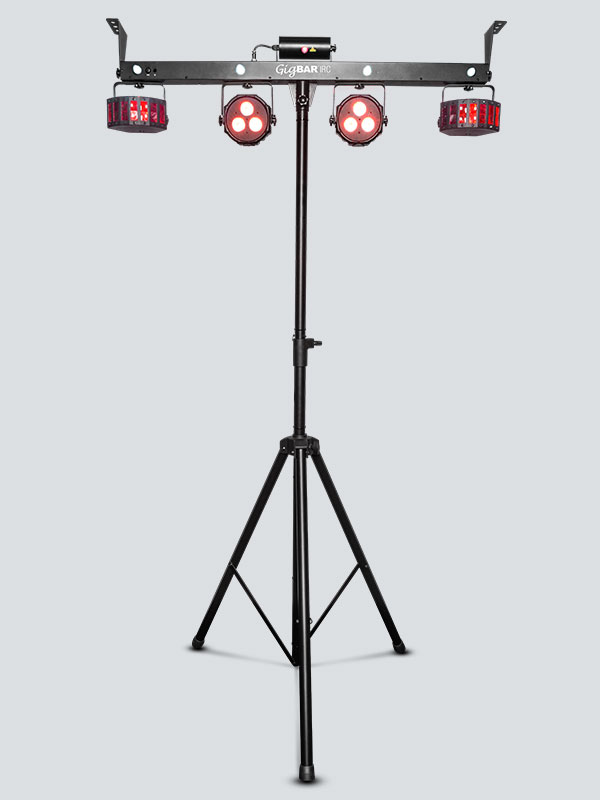

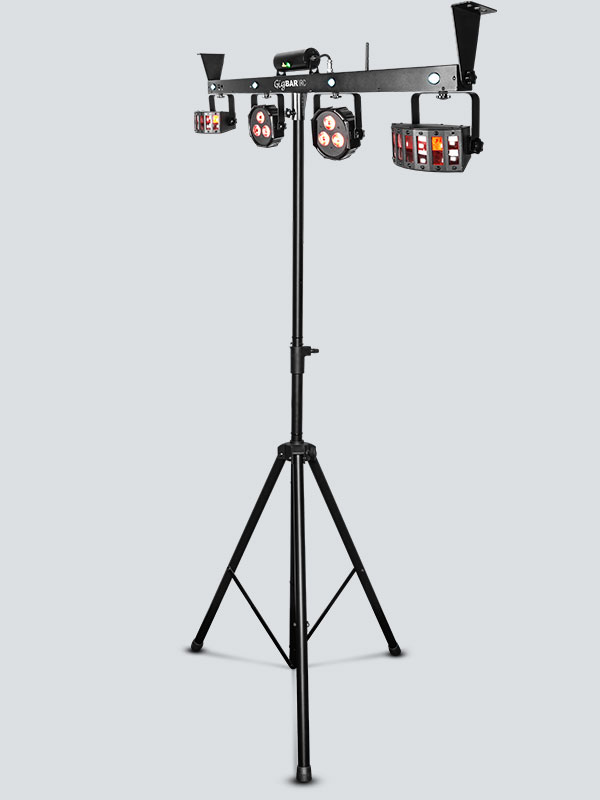

Music Inc. Editor’s Choice Award Winner, the CHAUVET DJ GigBAR IRC combines 4 essential lighting fixtures mounted onto a single control bar. The 4-in-1 GigBAR IRC maximizes convenience and ease of set-up and take-down for mobile entertainers who want to create a dynamic lighting experience for any event. The system includes a pair of LED Derby-style effect lights, a pair of LED pars, a laser and a strobe effect. Get in and out quickly with the included tripod, footswitch controller and FREE carry bags. The GigBAR IRC features phenomenal built-in automated and sound-activated programs that include all 4 effects to make one complete show. Easily control the GigBAR IRC from the display, IRC-6 remote control, wireless footswitch or DMX to take your gig to a higher level. Save time running cables and extension cords by power linking multiple units.

Highlights

  • Four great effects, nine great lights featuring a pair of LED Derby lights, a pair of LED Pars, a laser, and 4 strobes all mounted on one bar as one complete system

  • Cover any room or stage with individually adjustable and interchangeable heads

  • Get in and get out quickly with the included tripod, wireless footswitch and FREE carry bags

  • Ready for every application using the included mounting brackets to attach to truss

  • 4 high-power, LED strobe lights create exciting chase and slow motion effects

  • Adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions

  • Derbies project 42 red, green, and blue rotating beams from high-power LEDs

  • Phenomenal built-in automated and sound-activated programs that include all 4 effects to make one complete show

  • Easily control from the display, IRC-6, wireless footswitch or DMX to take your gig to a higher level

  • Master/slave multiple units under the control of a single IRC-6 or wireless footswitch

  • Save time running cables and extension cords by power linking multiple units

Specifications

  • DMX Channels: 3, 9 or 20
  • DMX Connectors: 3-pin XLR
  • Light Source: (Pars): 6 LEDs (tri-color RGB) 2.5 W (956 mA), 50,000 hours life expectancy
    (strobe): 4 LEDs (white) 1 W (281 mA), 50,000 hours life expectancy
    (derby): 6 LEDs (2 red, 2 green, 2 blue) 2 W (600 mA), 50,000 hours life expectancy
    650 nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
  • Strobe Rate: 0 to 18 Hz
  • Beam Angle: (Pars): 13°
    (strobe): 8°
  • Illuminance: (Pars): 1,205 lux @ 2 m (per head)
    (strobe): 86 lux @ 2 m (per zone)
  • Power Linking: 16 units @ 120 V; 29 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 44 W, 1 A @ 120 V, 60 Hz
    43 W, 1 A @ 230 V, 50 Hz
  • Weight: 14.4 lb (6.6 kg)
  • Size: 46.7 x 4.3 x 15.2 in (1,185 x 110 x 387 mm)
  • Optional Controllers: IRC-6

What's Included

  • GigBAR IRC
  • Power cord
  • FREE Carrying bags
  • Tripod
  • Footswitch (wireless)
  • Hanging bracket with mounting hardware
  • Warranty card

Downloads

Show & Tell

You’re the star! We want to see how you’re using CHAUVET DJ gear! Share your thoughts, experiences and photos of your events using this CHAUVET DJ product and find inspiration too!

  1. gigbar
    -ub

    Can i buy additional lights to interchange them. or do i have to buy 2 SEPARATE unit and interchange the lights?
    is parcan or the other light AVAILABLE to buy on their own?

    • -Geoff Short

      We’re note quite sure we understand what you’re trying to do, but in general no, the individual lights on our products are not designed to be interchangeable. Doing things like that could damage the fixtures and render them unusable and could void a warranty.
