GigBAR Move

Submit A Review

Read Our Review

5 out of 5 stars (based on 1 review)

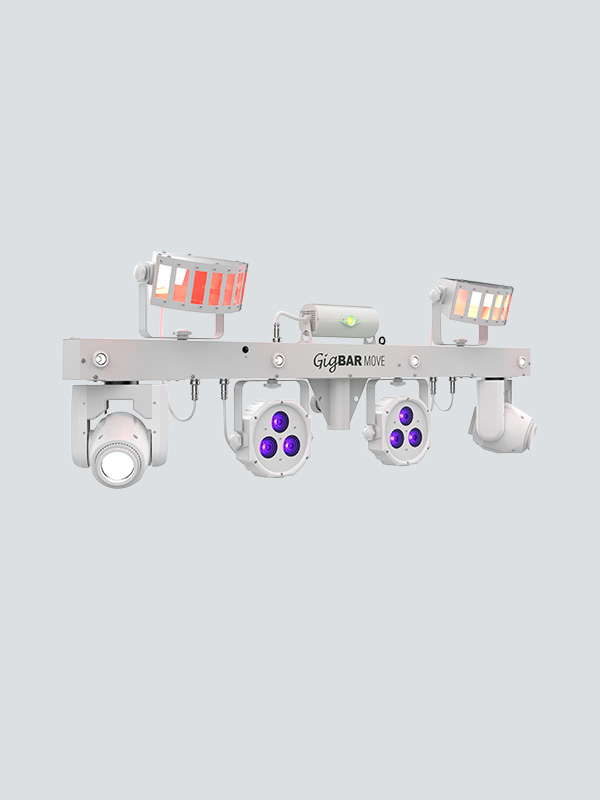

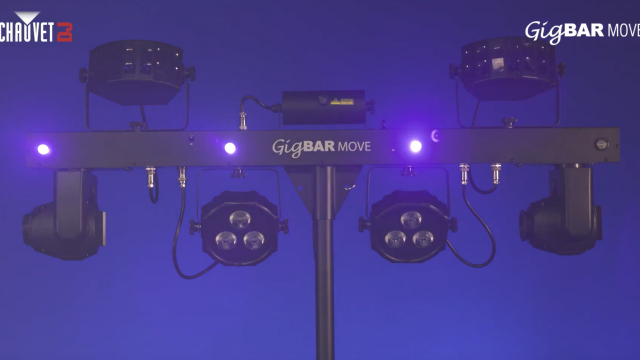

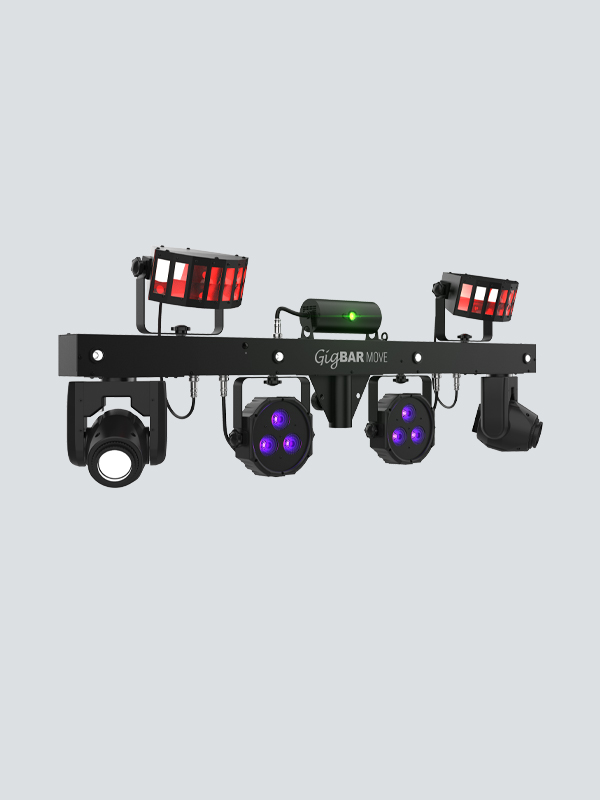

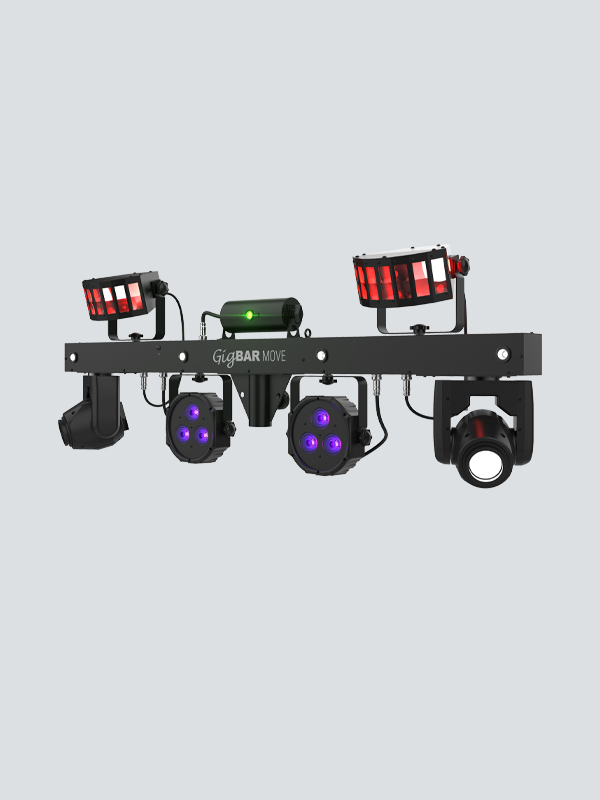

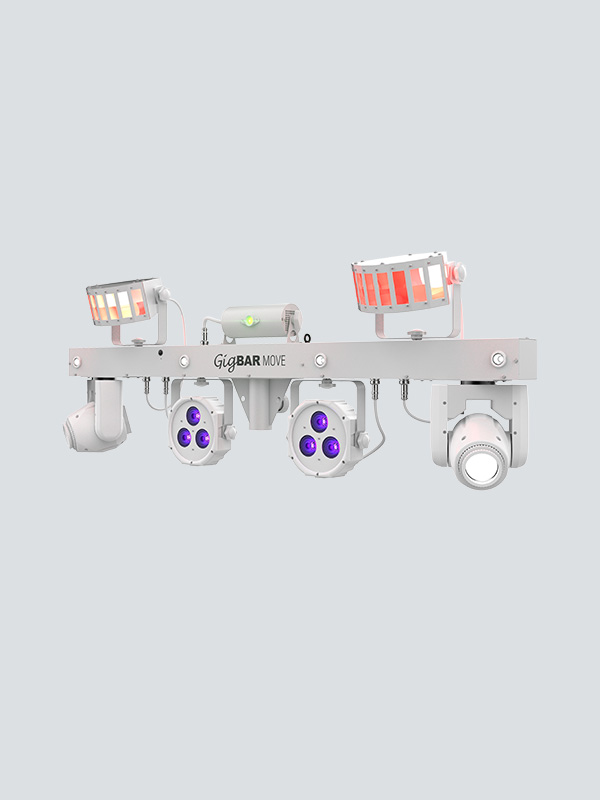

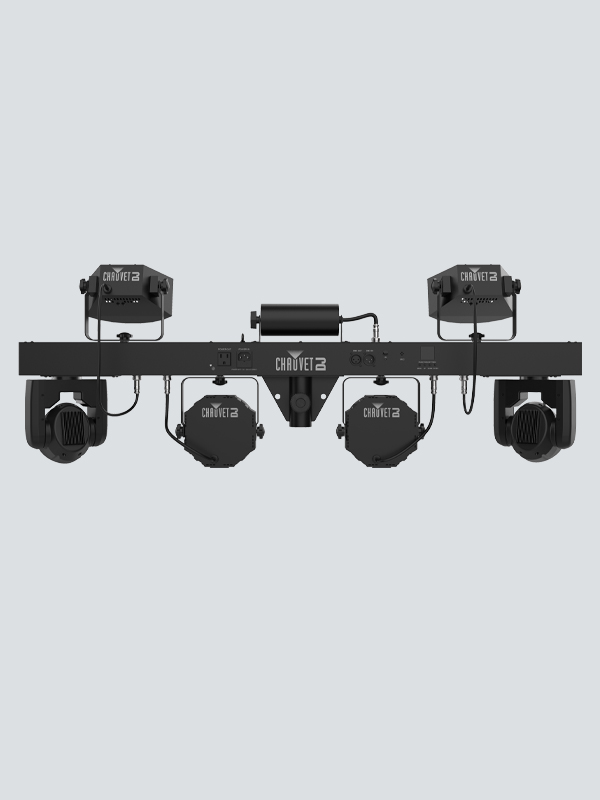

Ultimate gig lighting convenience, versatility and power is packed into GigBAR Move, a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. That means a complete light show is available from this single system that includes a tripod, wireless footswitch and FREE carry bags to ensure quick setup. The moving heads have separate color and gobo wheels to enhance creative programming possibilities, plus built-in Totem Mode to keep the moving heads focused on the dance floor. Individual control of each effect ensures your show looks the way you need it to and events can be energized with dynamic effects like built-in UV LEDs to illuminate florescent objects and make them pop. Controlling GigBAR Move is also easy. Stand-alone control, DMX, wireless IRC-6 remote or wireless footswitch options are all on board. GigBAR Move is also compatible with GigBAR 2 in master/slave mode for huge coverage and dynamic light shows.

VIP Rewards Value: 1067 Points



Highlights

  • 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar

  • Separate color and gobo wheels allow for creative programming

  • Totem Mode keeps the moving heads focused on the dance floor

  • Easy navigation and access to all functions, directly from the full-color LCD display

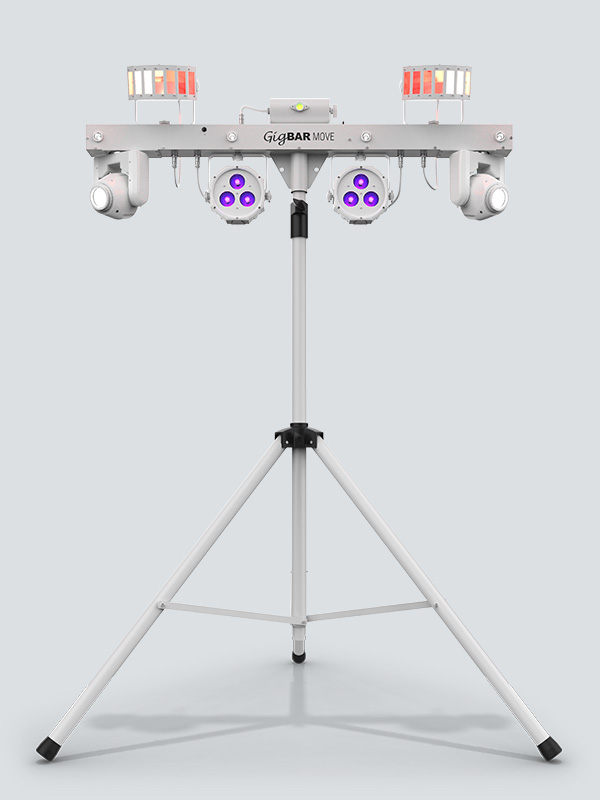

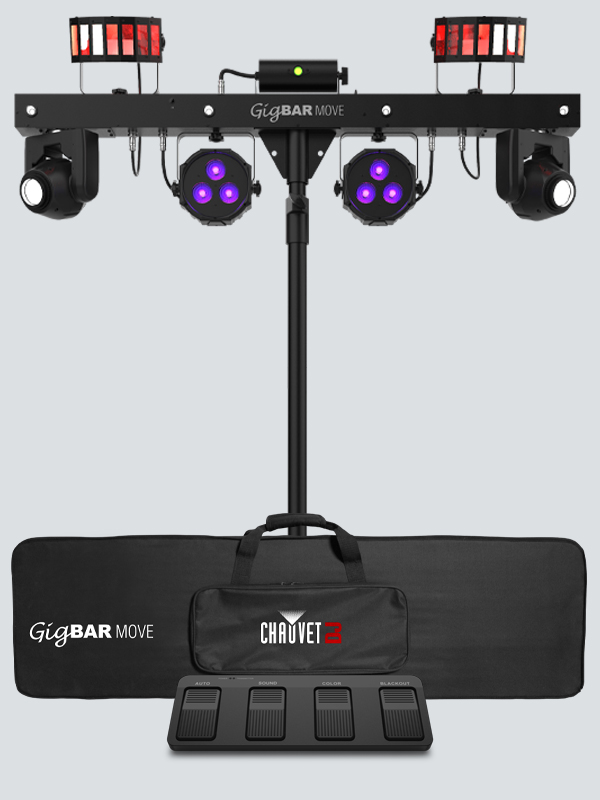

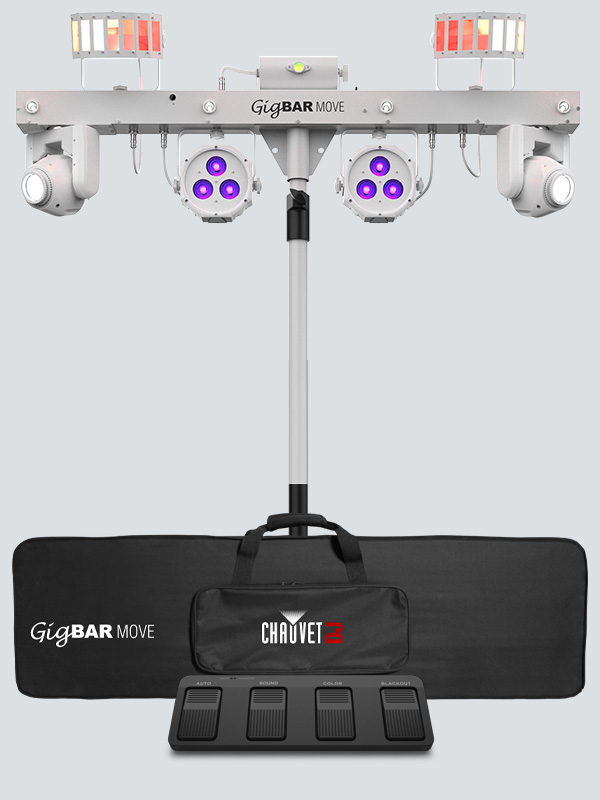

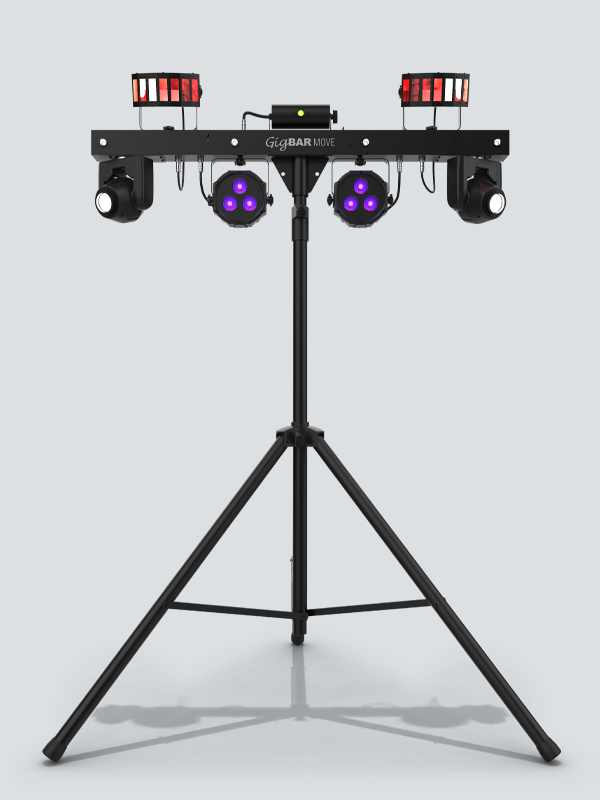

  • System includes a tripod, wireless footswitch and FREE carry bags to ensure quick setup

  • Built-in UV LEDs illuminate florescent objects and make them pop

  • Individual control of each effect ensures your show looks the way you need it to

  • Easy control via stand-alone, DMX, wireless IRC-6 remote or wireless footswitch

  • Compatible with the GigBAR 2 in master/slave for huge coverage and dynamic light shows

Specifications

  • DMX Channels: 3, 17 or 35
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/180°
  • Colors: (moving head): 7 + white
    (moving head): 7 + open
  • Light Source: (pars): 6 LEDs (quad-color RGB + UV) 3.5 W (1 A), 50,000 hours life expectancy
    (strobe): 4 LEDs (dual-color white + UV) 5 W (1.5 A), 50,000 hours life expectancy
    (derby): 6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A), 50,000 hours life expectancy
    (moving head): 1 LED (cool white) 10 W (2.3 A), 50,000 hours life expectancy
    (laser): 650nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
  • Strobe Rate: (all effects): 0 to 20 Hz
  • Beam Angle: (moving head): 11°
    (pars): 19°
    (strobe): 8°
  • Field Angle: (pars): 30°
    (strobe): 18°
  • Coverage Angle: (derby): 131°
    (laser): 93°
  • Fits Tripod Size: 1.5 in (37.4 mm)
  • Illuminance: (pars): 1,205 lux @ 2 m (per par)
    (moving head): 1056 lux @ 2 m (per head)
    (strobe): 86 lux @ 2 m (per zone)
  • Power Linking: 7 units @ 120 V; 12 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 81 W, 1.1 A @ 120 V, 60 Hz
    79 W, 0.6 A @ 230 V, 50 Hz
  • Weight: 23.4 lb (10.7 kg)
  • Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
  • Approvals: CE, FDA, FCC
  • Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
  • Footswitch Operating Frequency: 433 MHz
  • Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
  • Footswitch Battery: 9 V alkaline
  • Included Controllers: IRC-6, wireless footswitch

What's Included

  • GigBAR Move
  • GigBAR MOVE
  • Power cord
  • IRC-6 remote
  • Carrying bag
  • Tripod
  • Tripod carry bag
  • Footswitch
  • User Manual

Downloads

Read Our Review

5 out of 5 stars (based on 1 review)

Pretty awesome Fixture!

February 5, 2020

I just got my gigbar move yesterday and am pretty impressed with it. there are a few things i would like to see different on it, but all-in-all, it is a robust, impressive fixture. i have used a swarm wash fx for years and been happy with it, but this light brings a lot more to the table. the build is solid and what it does…..impressive!! some djs are saying it is “too much”…..you don’t have to run everything at once, and the auto programs and sound programs offer so much customization….you really don’t even need dmx to dive pretty deep into it. you can turn features on and off, customize your show, all from the included irc remote, or foot switch, or the back screen. the control screen is one of my favorite features. it is full color and a full screen!!! no more little red letters spelling disp, and other things you can never remember what they mean, on the fly. this screen makes it super easy to access every setting. overall this was a great purchase and i am really happy i got it. it’s not cheap, but you get what you pay for, and this was a great buy!!

Matt diano

Response from CHAUVET DJ

Matt, thanks for taking the time to leave such a detailed review. We appreciate your feedback on GigBAR Move. So happy to hear the fixture is a win for you!
