Discontinued Since 2015

Gobo Shot 50W IRC

Gobo Shot 50W IRC is a powerful, DMX-controllable gobo projector powered by a 50-watt LED. It features a hinged gobo door for quick, easy gobo changes and includes 10 popular gobos and a gel frame holder. For customized looks, easy to change, size D gobos allow for greater projected details. Heat-free LED power allows for use of custom gobos printed on transparency film. Use the built-in digital display or optional IRC remote to control the dimmer function as well as gobo rotation and direction. Gobo Shot 50W IRC fits best in the optional CHS-40 VIP Gear Bag for secure and convenient transportation.

Highlights

  • Custom gobo projector with powerful 50 W LED

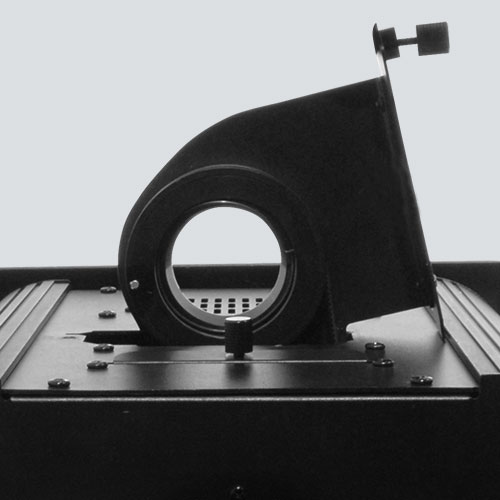

  • Hinged gobo door for quick and easy gobo changes

  • Easy to change, size D gobos allows greater projected details

  • Control dimmer, gobo rotation and direction with the built-in digital display or optional IRC remote

  • Easily print your own gobos on transparency film

  • Extend the remote control with a standard RJ45 (network) cable

  • Included remote controls LED on/off, gobo rotation speed and direction

  • Includes 10 popular gobos and a gel frame holder

  • Reduce set up time by power linking multiple units

  • Easily transports in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels: 4
  • DMX Connectors: 3-pin XLR
  • Light Source: 1 LED (white) 50 W (2 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • PWM Frequency: 5.86 KHz
  • Beam Angle: 26°
  • Illuminance: 2,937 lux @ 2 m
  • Power Linking: 9 units @ 120 V; 17 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 102 W, 0.8 A @ 120 V, 60 Hz
    109 W, 0.4 A @ 230 V, 50 Hz
  • Gobo Size: 53 mm outside, 40 mm image, 1 mm max thickness (size D)
  • Weight: 10.8 lb (5 kg)
  • Dimensions: 12 x 12.6 x 10.2 in (306 x 320 x 258 mm)
  • Approvals: CE
  • Cable Length: 25 ft (7.6 m)
  • Included Controllers: Gobo Shot 50W remote

What's Included

  • Gobo Shot 50W IRC
