Discontinued Since 2015

Gobo Zoom LED 2.0

Submit A Review

Read Our Review

4 out of 5 stars (based on 1 review)

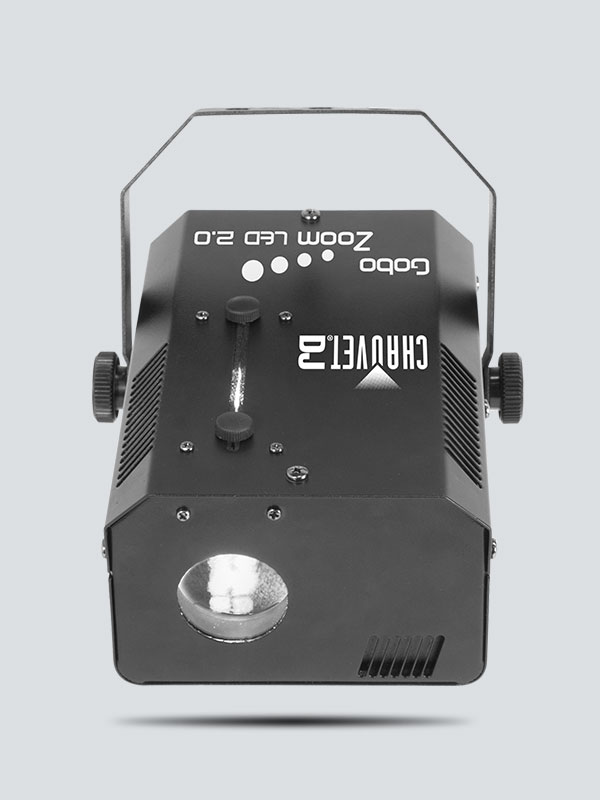

Gobo Zoom LED 2.0 projects your message or custom image anywhere you want it. Powered by a 15-watt LED, this powerful gobo projector comes with 4 gels and 9 easily replaceable rotating gobos. Heat-free LED power allows use of custom gobos, easily created from transparency material. A variable 18° – 26° beam angle allows for crisp focusing at a variety sizes. DMX control easily incorporates it into shows.

VIP Rewards Value: 240 Points


  • Super-compact custom gobo projector

  • 2.5 times brighter than the original Gobo Zoom™ LED

  • Manual zoom for short-throw or long-throw applications

  • Includes 9 popular gobos and 4 colored gels

  • User-configurable stand-alone operation provides excellent control without DMX

  • Print your own custom gobos on transparency film

  • Fits best in the CHS-40 VIP Gear Bag


  • DMX Channels: 2
  • DMX Connectors: 3-pin XLR
  • Light Source: 1 LED (white) 15 W (4 A), 50,000 hours life expectancy
  • Zoom Angle: 18° to 26°
  • Illuminance: 1,027 lux @ 2 m
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 34 W, 0.3 A @ 120 V, 60 Hz
    38 W, 0.2 A @ 230 V, 50Hz
  • Gobo Size: 28.6 mm outside, 26 mm image, 1 mm max thickness
  • Weight: 4.4 lb (2 kg)
  • Dimensions: 9 x 7.3 x 7.2 in (229 x 185 x 183 mm)
  • Approvals: CE

What's Included

  • Gobo Zoom LED 2.0


Read Our Review

4 out of 5 stars (based on 1 review)

LED Gobo Fixtures are the best

December 22, 2018

We invested in a few of these and the brightness is amazing all thanks to a 100 watt led. Love how we don’t have to worry about drawing too much electricty and you get a really nice powerful beam of warm white light. The gel frame holder is perfect for adding color. The fact that they can hold steel and glass gobos is a plus too! for future improvements I’d love to be able to have an led that we can change colors so we don’t have to mess with gel sheets. a motorized focus feature would be a plus too. check out our promo video here. https://vimeo.com/293023580

Dax Talbert
