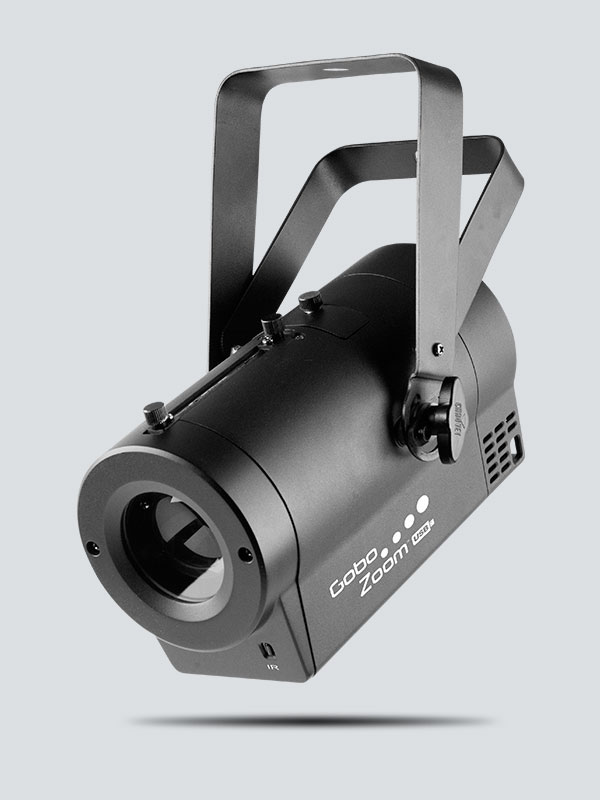

Gobo Zoom USB

Gobo Zoom USB is a super compact gobo projector with a manual zoom, and wireless connectivity in master/slave and DMX mode, thanks to its embedded D-Fi USB compatibility. Gobo Zoom USB includes 10 wedding-ready gobos. Gobo Zoom USB can be controlled without DMX using the optional IRC-6 remote (sold separately). Gobo Zoom USB accepts custom gobos, including patterns and messages easily printed on transparency film. Fits best in the CHS-40 VIP Gear Bag.

Highlights

  • Super-compact custom gobo projector, with built-in D-Fi USB compatibility that allows for instant wireless connectivity

  • D-Fi USB compatibility for wireless Master/Slave or DMX control

  • Control dimmer, gobo rotation and direction with the built-in display or optional IRC remote

  • Manual zoom for short-throw or long-throw applications

  • Includes 10 wedding ready gobos

  • Access all functions via the optional IRC-6 remote

  • User-configurable standalone operation provides excellent control without DMX

  • Print your own custom gobos on transparency film

  • Fits best in the CHS-40 VIP Gear Bag

Specifications

  • DMX Channels: 2
  • DMX Connectors: 3- pin XLR
  • Light Source: 1 LED (cool white) 25 W (6 A), 50,000 hours life expectancy
  • Illuminance: (17°) 3,075 lux @ 2 m
    (28°) 1,121 lux @ 2 m
  • Power Linking: 13 units @ 120 V; 24 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 41 W, 0.7 A @ 120 V, 60 Hz
    39 W, 0.3 A @ 230 V, 50 Hz
  • Gobo Size: 25.74 mm outside, 19.38 mm max image, 1 mm max thickness
  • Zoom Angle: (manual): 17° to 28°
  • Weight: 4.4 lb (2.1 kg)
  • Size: 9.4 x 4.9 x 9.6 in (238 x 124 x 244 mm)
  • Approvals: CE
  • Optional Controllers: IRC-6

What's Included

  • Gobo Zoom USB
  • Power cord
  • Set of 10 wedding-ready gobos
  • Warranty card
