Discontinued Since 2014

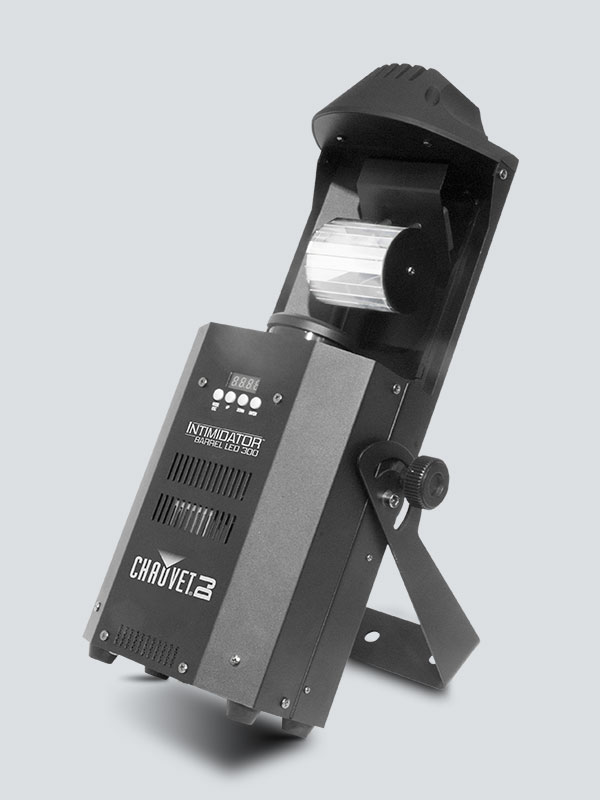

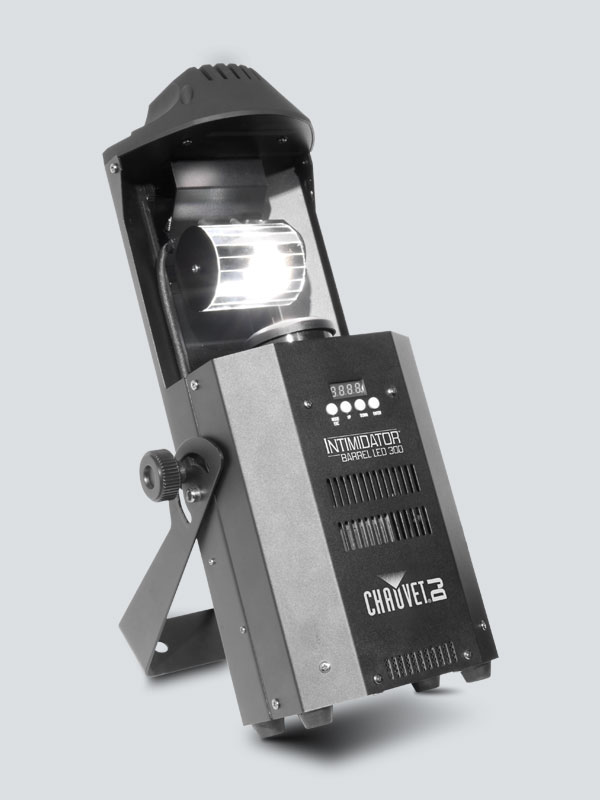

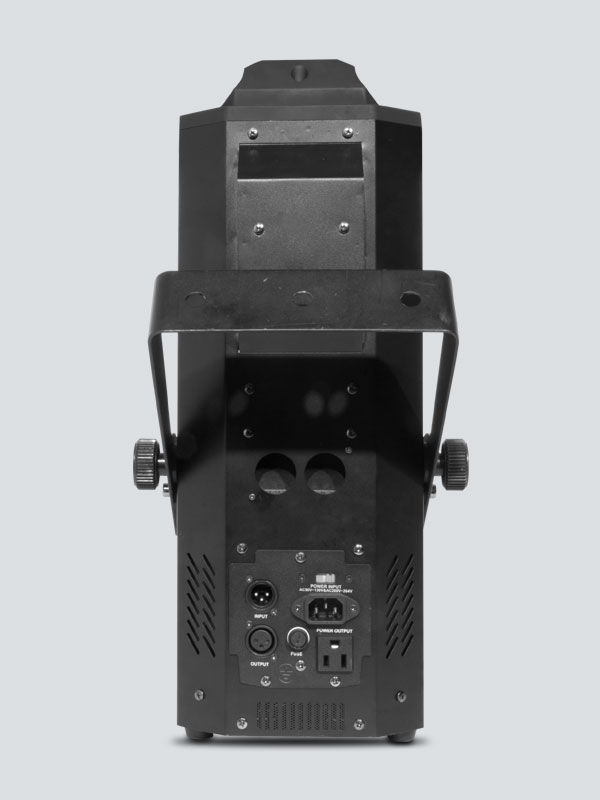

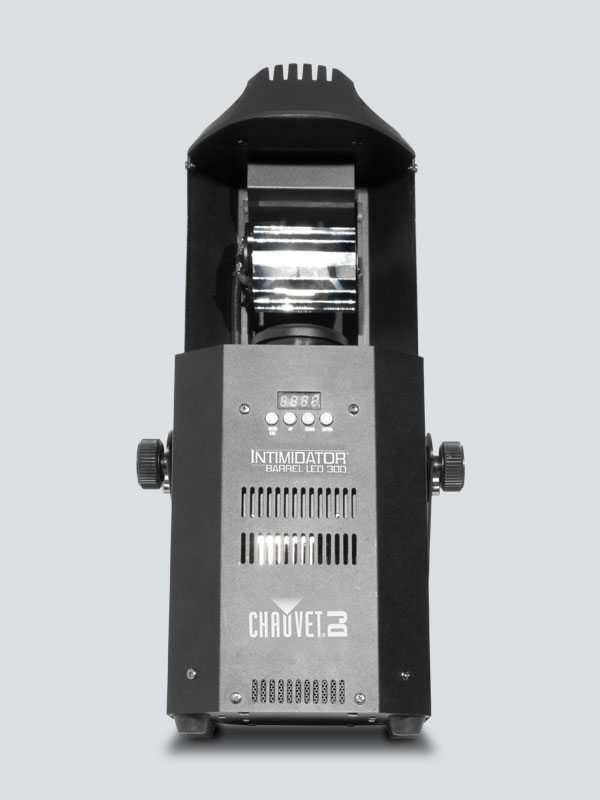

Intimidator Barrel LED 300

Bright and compact LED powered barrel scanner with tons of features to enhance any show. Intimidator Barrel LED 300 includes seven interchangeable, rotating gobos and eight separate, saturated colors for increased design flexibility and effects. Motorized focus allows for crisp gobos when projected from almost any distance.

Highlights

  • Bright and compact LED barrel scanner packed with features to enhance any show

  • Increase design flexibility and effects with interchangeable, rotating gobos plus separate, saturated colors

  • Minimize programming time with built-in movement macros and move-in-black features

  • Project crisp gobos from nearly any distance using the motorized focus

  • Increase effects with electronic dimming and strobe features

  • Split the beam and cover larger areas with the crisp, 3-facet prism

  • Continuous shows with individual reset of pan and tilt, color, gobo, prism and focus

  • Achieve flicker-free video operation with high-frequency LED dimming

  • Save time running cables and extension cords by power linking multiple units (US version only)

  • Sound-activated programs dance to the beat of the music

  • Generate a synchronized show in master/slave mode using easy-access to built-in automated programs

Specifications

  • DMX Channels: 8 or 11
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 180°/360°
  • Colors: 8 + white, split colors, continuous scroll at variable speeds
  • Gobos: 7 + open, rotating, slot-n-lock, continuous scroll at variable speeds
  • Light Source: 1 LED (white) 60 W (15 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Illuminance: 1,736 lux @ 2 m
  • Power Linking: 3 units @ 120 V; 7 units @ 230 V
  • Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
  • Power and Current: 240 W, 2 A @ 120 V, 60 Hz
    240 W, 1 A @ 230 V, 50 Hz
  • Gobo Size: 23.8 mm outside, 20.9 mm image, 2 mm max thickness
  • Weight: 14.2 lb (6.4 kg)
  • Dimensions: 20.5 x 10 x 6.7 in (521 x 255 x 171 mm)
  • Approvals: CE, MET

What's Included

  • Intimidator Barrel LED 300
