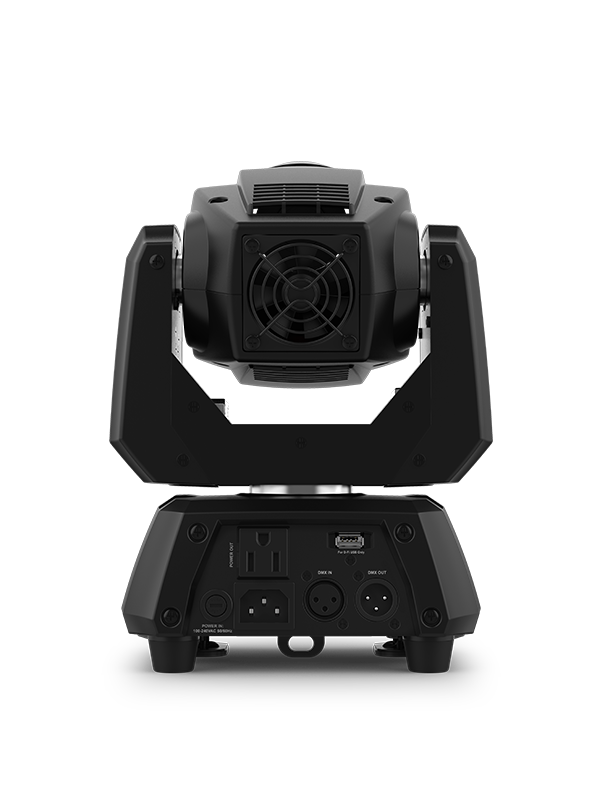

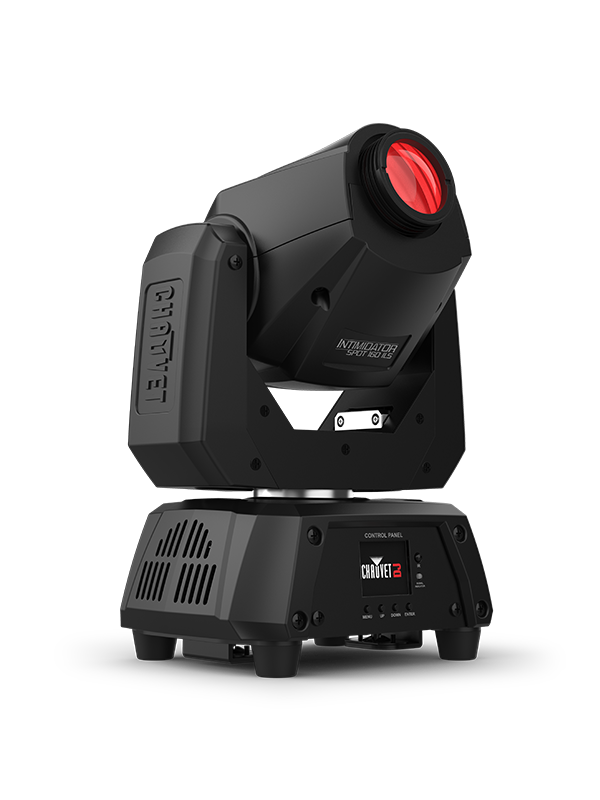

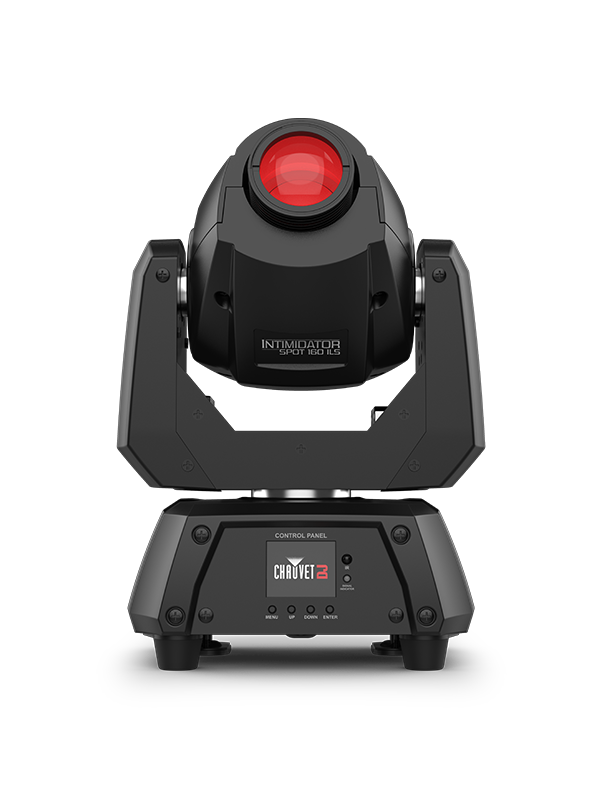

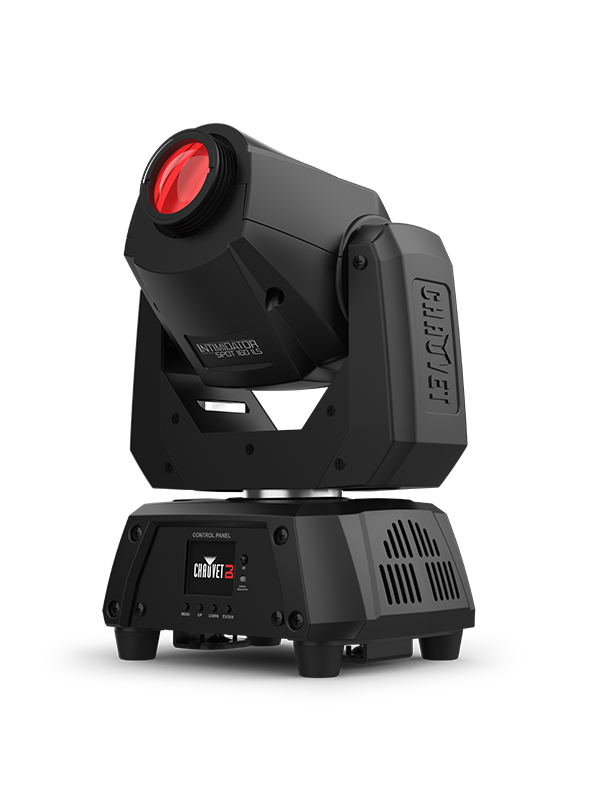

Intimidator Spot 160 ILS

Moving lights, moving people is what Intimidator moving head lights are all about and Intimidator Spot 160 ILS is sure to get your event guests moving! This compact moving head is ideal for mobile entertainment applications and features compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Intimidator Spot 160 ILS also has D-Fi™ USB compatibility for wireless Master/Slave or DMX control. Built-in Totem Mode means beams always remain on the dance floor and you can set, save, and recall 1 scene manually, directly from the full-color LCD display. Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode. A ¼-turn hanging bracket allows for quick removal when needed and convenient, wireless non-DMX control is at hand using the optional IRC-6 remote.

VIP Rewards Value: 667 Points



Highlights

  • Feature-packed moving head designed for mobile performances

  • D-Fi™ USB compatibility for wireless Master/Slave or DMX control

  • ¼-turn hanging bracket allows for quick removal when needed

  • Beams always remain on the dance floor using the built-in, innovative Totem mode

  • Set, save, and recall 1 scene manually, directly from the full-color LCD display

  • Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode

  • Convenient, wireless non-DMX control using the optional IRC-6 remote

  • Fits best in the CHS-1XX VIP Gear Bag

Specifications

  • DMX Channels: 5 or 11
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/229°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 229° tilt
  • Colors: 9 + open, split colors, continuous scroll at variable speeds
  • Gobos: 9 + open (9 aluminum), continuous scroll at variable speeds
  • Light Source: 1 LED (11,000 K) 32 W, (2.3 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle: 15°
  • Illuminance: 5,000 lux @ 2 m
  • Power Linking: 7 units @ 120 V; 12 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 83 W, 1.105 A @ 120 V, 60 Hz
    77 W, 0.624 A @ 230 V, 50 Hz
  • Weight: 8.2 lb (3.8 kg)
  • Size: 8.2 x 5.9 x 12 in (207 x 149 x 308 mm)
  • Bracket Mounting Hole:: M12
  • Optional Controllers: : IRC-6
  • Approvals: : CE

What's Included

  • Intimidator Spot 160 ILS
  • Intimidator Spot 160 ILS
  • Power cord
  • Hanging bracket
  • Quick Reference Guide
