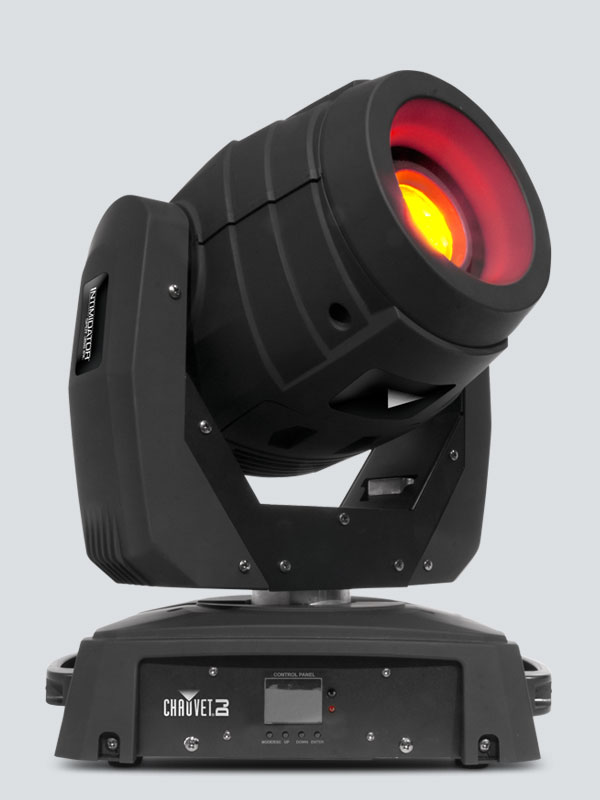

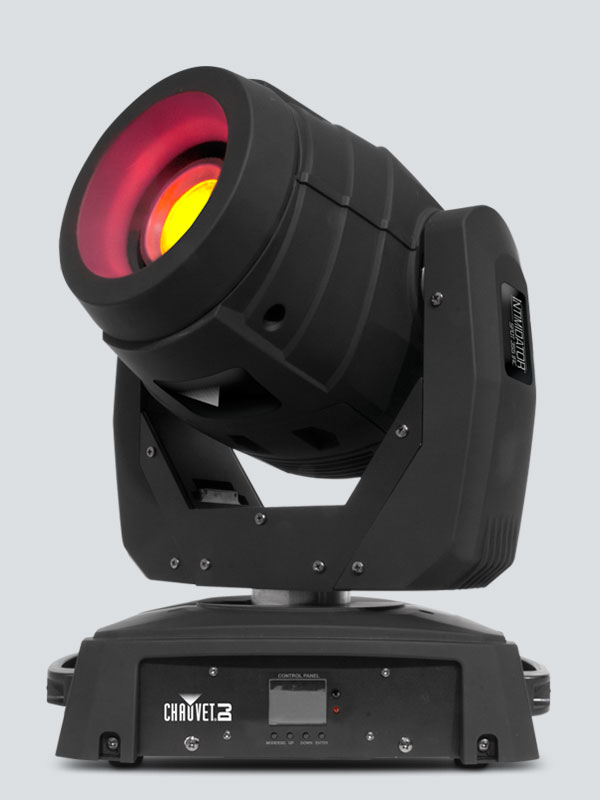

Intimidator Spot 355 IRC

Intimidator Spot 355 IRC is a feature-packed moving head spot fitted with a 90 W LED. The rotating 3-facet prism can split the beam to expand the coverage area while the manual zoom can increase the throw distance. Other features include an easy-access gobo door that makes it simple to change gobos for customized looks and a Totem mode that keeps beams focused on the dance floor. Up to four fixtures can be linked to create eye-catching, synchronized shows in automated or sound mode. Set, save, and recall one scene directly from the full-color LCD display. Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs.

Wireless (non-DMX) control is possible using the optional IRC-6 remote. Multiple units can be power linked to save time running cables and extension cords. Travels safely in the optional flight case Intimidator Road Case S35X or CHS-50 VIP Gear Bag. Available in black or white.

Highlights

  • Feature-packed moving head spot fitted with a 90 W LED to enhance any event or application

  • Beams always remain on the dance floor using the built-in, innovative Totem mode

  • Set, save, and recall 1 scene manually, directly from the full-color LCD display

  • Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode

  • Convenient, wireless non-DMX control using the optional IRC-6 remote

  • Split the beam and cover a larger area with the rotating 3-facet prism

  • Project crisp gobos from nearly any distance with the motorized focus

  • Quickly and easily change gobos using the easy-access gobo door

  • Throw light farther by decreasing the beam angle 5° using the manual zoom

  • Save time running cables and extension cords by power linking multiple units

  • Generate a synchronized show in Master/Slave mode with easy-to-access, built-in automated programs

Specifications

  • DMX Channels: 8 or 14
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/240°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/240°, 180°, 90° tilt
  • Colors: 8 + white, split colors, continuous scroll at variable speeds
  • Gobos: 7 + open (5 metal + 2 glass), rotating, interchangeable, indexing, continuous scroll at variable speeds
  • Light Source: 1 LED (white) 90 W (24.2 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 15.2 Hz
  • PWM Frequency: 1.20 kHz
  • Illuminance: (12°): 21,810 lux @ 2 m
    (17°): 9,400 lux @ 2 m
  • Power Linking: 4 units @ 120 V; 7 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 186 W, 1.7 A @ 120 V, 60 Hz
    179 W, 1 A @ 230 V, 50 Hz
  • Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
  • Zoom Angle: (manual): 12° to 17°
  • Weight: 24.6 lb (11.2 kg)
  • Size: 10.6 x 13.4 x 15.4 in (268 x 340 x 392 mm)
  • Approvals: CE
  • Series: Intimidator
  • Primary Use: DJ/Mobile, Bands/Stages, Events, Clubs, Party
  • Prism: 3-facet round, static, bidirectional rotation at variable speeds

What's Included

  • Intimidator Spot 355 IRC
  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
