Discontinued Since 2023

Intimidator Spot 375Z IRC

Next Gen Product Available

Intimidator Spot 375ZX

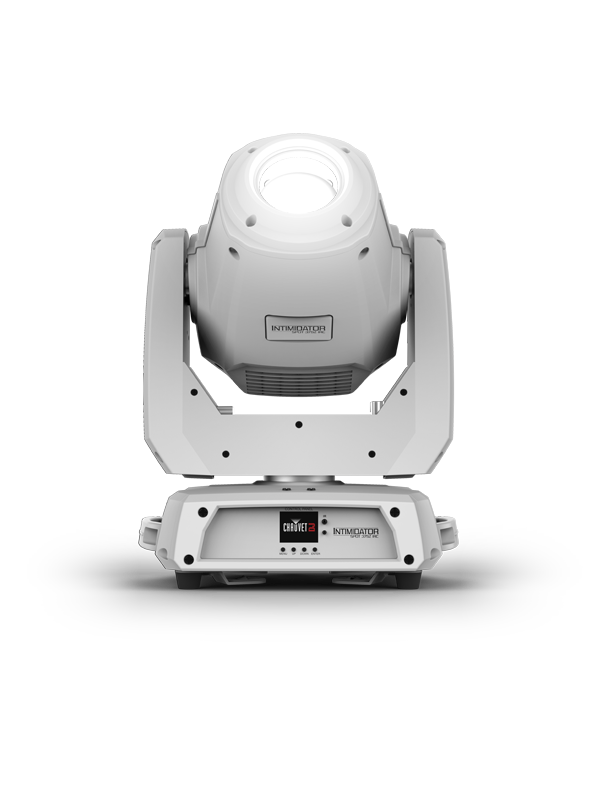

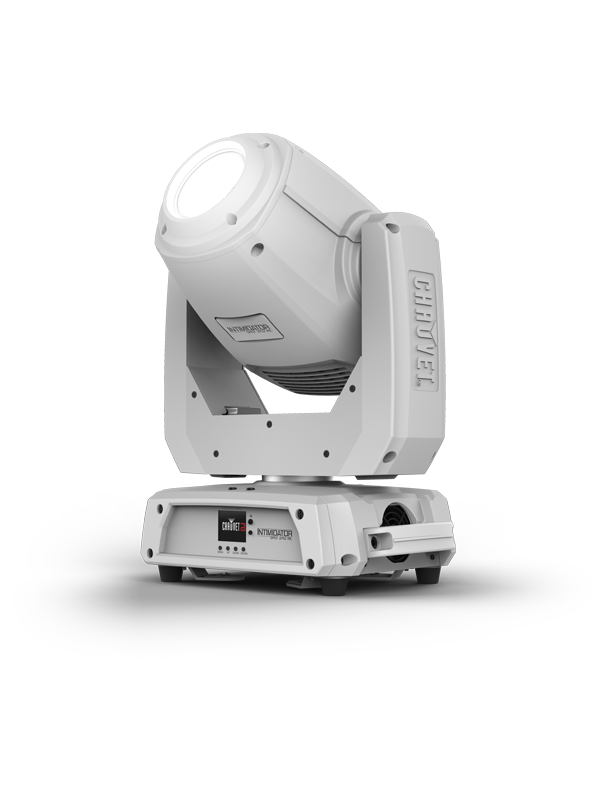

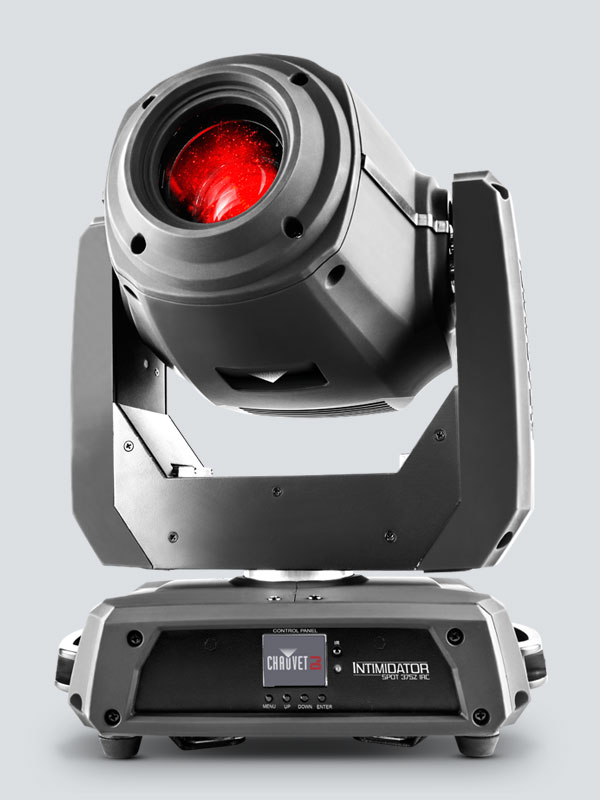

Intimidator Spot 375Z IRC is an exceptionally bright, 150 W LED moving head spot designed for large events. It features motorized zoom for short-throw or long-throw applications and dual rotating prisms split the beam for great effects and to cover a larger area. The motorized focus ensures crisp projections at almost any distance and the built-in Totem mode keeps the beams exactly where you want them. Intimidator Spot 375Z IRC includes built-in, automated and sound-activated programs or it can be controlled in DMX or Master/Slave mode. The powerCON®-compatible power input/output connections for power linking are also onboard. White housing not available in U.S and European Markets.

Highlights

  • Exceptionally bright, 150 W LED moving head spot designed for large events

  • Motorized zoom for short-throw or long-throw applications

  • Unique ¼-turn hanging bracket allows for single or dual clamp mounting options

  • Dual rotating prisms splits the beam for great effects and to cover a larger area

  • Beams always remain on the dance floor using the built-in, innovative Totem mode

  • Emit crisp projections at almost any distance using the motorized focus

  • Works with the IRC-6 for wireless control and triggering

  • Activate built-in, automated and sound-activated programs, or control in DMX or Master/Slave mode

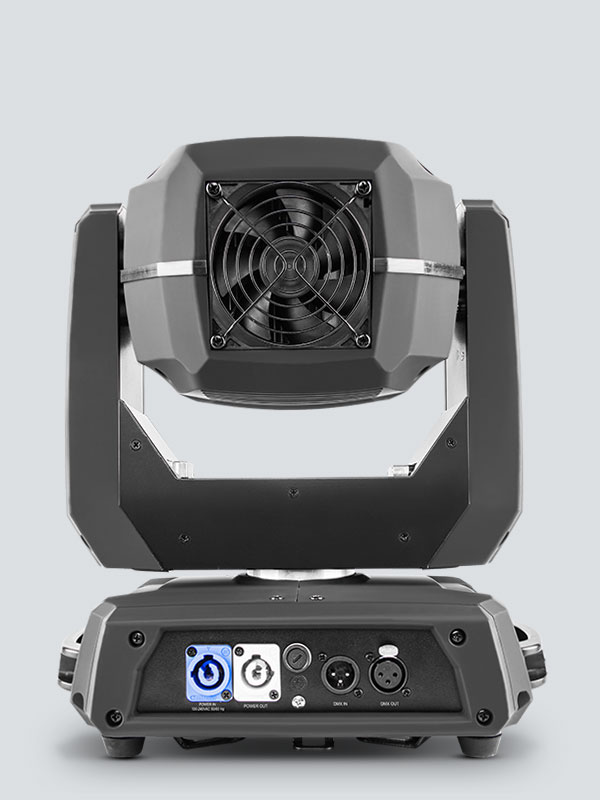

  • powerCON®-compatible power input/output connections for power linking

  • Fits best in the INTIMROADCASES35X flight case

Specifications

  • DMX Channels:9 or 15
  • DMX Connectors:3-pin XLR
  • Pan and Tilt:540°/270°
  • Pan and Tilt Ranges:540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors:7 + white, split colors, continuous scroll at variable speeds
  • Gobos:7 + open (6 aluminum + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Light Source:1 LED (white) 150 W, (12.3 A), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • PWM Frequency:1.8 kHz
  • Zoom Angle:(motorized): 10° to 23°
  • Illuminance:(10°): 38,000 lux @ 2 m
    (23°): 19,850 lux @ 2 m
  • Lumens:5,817
  • Power Linking:3 units @ 120 V; 5 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:277 W, 2.5 A @ 120 V, 60 Hz
    268 W, 1.3 A @ 230 V, 50 Hz
    (10°) 4,180 lux @ 8 m (23°) 2,523 lux @ 5 m
  • Gobo Size:24 mm outside, 20 mm image, 1 mm max thickness
  • Weight:27.2 lb (12.4 kg)
  • Size:8.6 x 12.7 x 18.3 in (220 x 322 x 466 mm)
  • Approvals:CE, MET
  • Optional Controllers: IRC - 6
  • Prism: (1): 6-facet round, bidirectional rotation at variable speeds
  • Prism: (2): 5-facet linear, bidirectional rotation at variable speeds

What's Included

  • Intimidator Spot 375Z IRC
  • Intimidator Spot 375Z IRC
  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
